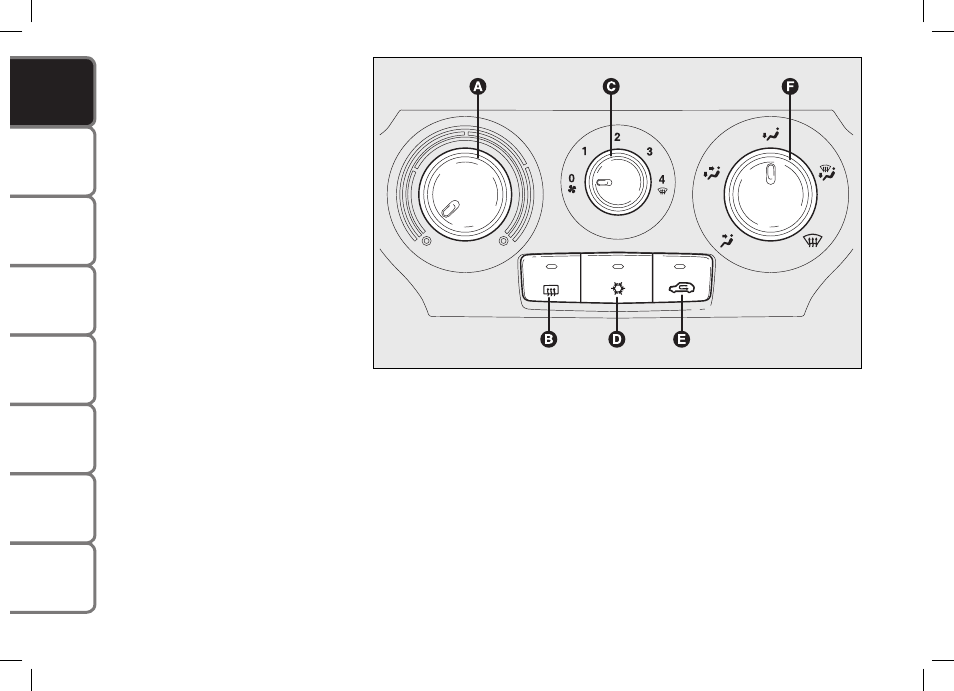

CONTROLS fig. 43
A: Air temperature knob (mixing hot and
cold air)
B: Heated rear window on/off button
C: Fan knob
D: Compressor on/off switch
E: Air recirculation on/off button
F: Air distribution knob.
WARMING THE PASSENGER
COMPARTMENT
Proceed as follows:
❒
knob pointer A in the red section;
❒
knob pointer C on required speed;
❒
turn knob F to:
≤
to warm the feet and at the same time
demist the windscreen
µ
to warm the feet and keep the face cool
(“bilevel” function)
w
to warm the feet of the front and rear
passengers.
❒
air recirculation off (button led
T
off).
F0Q0610m
fig. 43
