ЛАМПА ОСВЕЩЕНИЯ ПЕРЧА-
ТОЧНОГО ЯЩИКА
Для замены лампы действуйте следую-
щим образом:

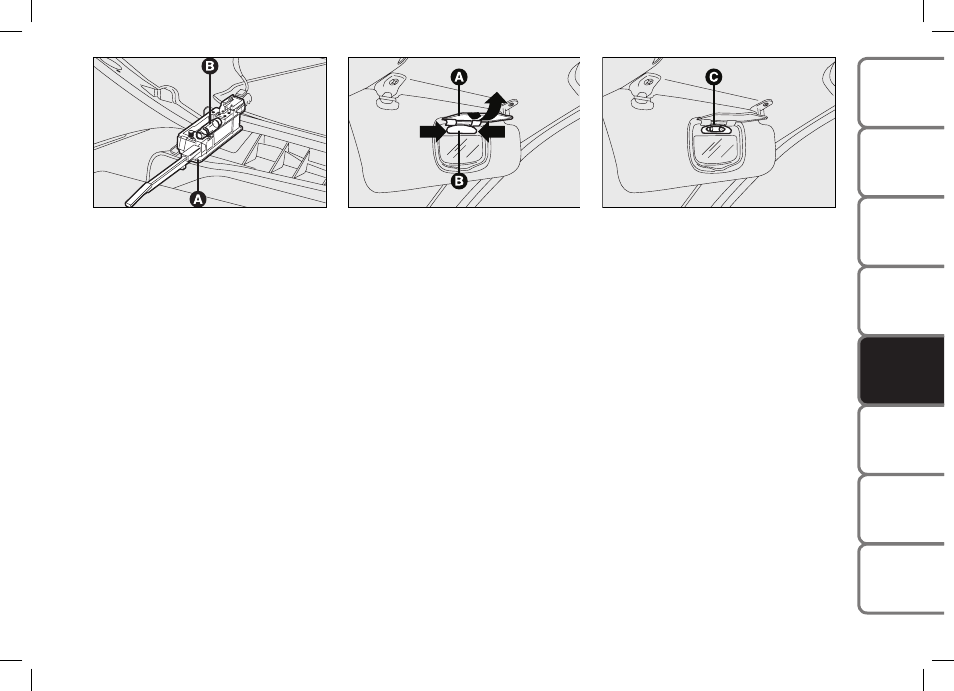

откройте перчаточный ящик, и извле-
ките держатель лампы A, рис. 44;
извлеките лампу B из боковых кон-
тактов и замените ее, убедитесь, что
новая лампа надежно закреплена
между контактами.
ОСВЕЩЕНИЕ КОСМЕТИЧЕСКО-
ГО ЗЕРКАЛА
(дополнительное оборудование)
Для замены лампы действуйте следую-
щим образом:
откройте крышку зеркала A, рис. 45;
нажав по стрелке, снимите рассеива-
тель B;
извлеките из боковых контактов лампу
С, рис
. 46, и замените ее, убедитесь,
что лампа надежно закреплена между
контактами.
177
SAFETY DEVICES
CORRECT USE OF THE CAR
W
ARNING
LIGHTS AND MESSAGES
CA
R
MA
IN
TE
NA
NC
E
TE
CH
NI
CA
L
SP
EC
IFI
CA
TIO
NS
INDEX
DA
SH
BO
AR
D
AN
D
CO
NT
RO
LS
IN AN
EMERGENCY
GLOVEBOX LIGHT
To change the bulb, proceed as follows:
❒
open the glovebox, then remove the
light unit A-fig. 44;
❒
replace the bulb B releasing it from the
side contacts making sure that the new
bulb is correctly clamped between the
contacts.
COURTESY MIRROR
LIGHT (where provided)
To change the bulb, proceed as follows:
❒
open the mirror cover A-fig. 45;
❒
remove the bulb B levering in the
points shown by the arrows;
fig. 44
F0Q0726m
fig. 45
F0Q0423m
fig. 46
F0Q0424m
❒
replace the bulb C-fig. 46 releasing it
from the side contacts making sure
that the new bulb is correctly clamped
between the contacts.
