THE KEYS
CODE CARD
Together with the keys you will receive
the CODE card fig. 7 to be presented to
Fiat Dealership when requesting additional
keys.
IMPORTANT In order to ensure perfect
efficiency of the electronic devices con-
tained inside the keys, they should never
be exposed to direct sunlight.
KEY WITHOUT REMOTE
CONTROL (where provided)
The key is fitted with a metal insert
A-fig. 8, operating:
❒
the ignition switch
❒
doors and tailgate locks
❒
the fuel lid locking/unlocking (on ver-
sions featuring fuel filler cap with lock)
❒
the safe lock device (only disengage-
ment - where provided)
All the keys and the CODE
card must be handed over to
the new owner when selling
the car.
fig. 7
F0Q0001m
fig. 8
F0Q0034m
001-022 BRAVO GB 10-05-2007 8:57 Pagina 10
11
SAFETY DEVICES
CORRECT USE OF THE CAR
W
ARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
CA
R
MA
IN
TE
NA
NC
E
TE
CH
NI
CA
L
SP
EC
IFI
CA
TIO
NS
INDEX
DASHBOARD AND CONTROLS

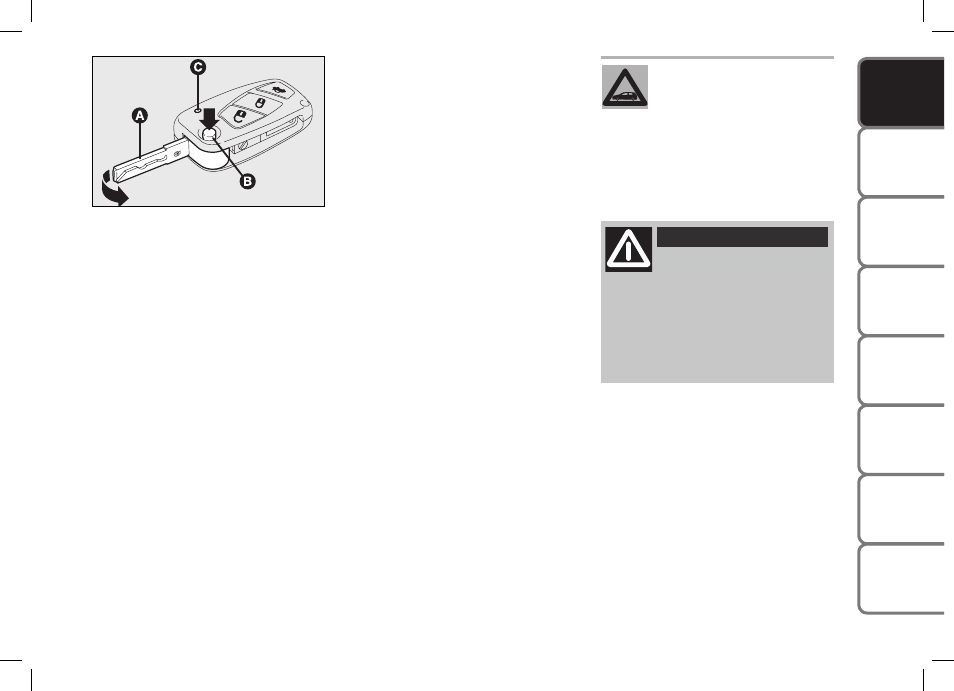

KEY WITH REMOTE CONTROL
The key is fitted with a metal insert
A-fig. 9, operating:
❒
the ignition switch
❒
doors and tailgate locks
❒
the fuel lid locking/unlocking
❒
the safe lock device (only disengage-
ment - where provided)
fig. 9
F0Q0327m
Button
Ë
for remote unlocking of doors
and tailgate.
Button
Á
for remote locking of doors and
tailgate.
Button
R
for remote opening of the tail-
gate. Button B for power-assisted open-
ing of the metal insert A.
To refit the metal insert into the key grip,
keep button B pressed and turn the met-
al insert in the direction shown by the ar-
row until hearing the click as it locks into
place. Then release button B. Led C
(where provided) comes on when send-
ing the control to the alarm system re-
ceiver. To know the operating logics of
the key with remote control and every
possible and modifiable setting, see para-
graph “Alarm” in this section.
If locking button
Á
is inadver-
tently pressed from the pas-
senger compartment, when
getting out of the car only the doors
being used will unlock; the tailgate will
stay locked. To realign the system,
press again the locking/unlocking but-
tons
Б /Л
.
Button B-fig. 9 should only
be pressed when the key is
away from the body, in particular
from the eyes and from objects that
can be spoilt (e.g. clothes). Make sure
the key can never be touched by oth-
ers, especially children, who may in-
advertently press the button.
