DASHBOARD AND CONTROLS
RECONFIGURABLE
MULTIFUNCTION
DISPLAY
(where provided)
The car can be provided with the recon-
figurable multifunction display that shows
useful information, according to the pre-
vious settings made, necessary when dri-
ving.
INFORMATION ON

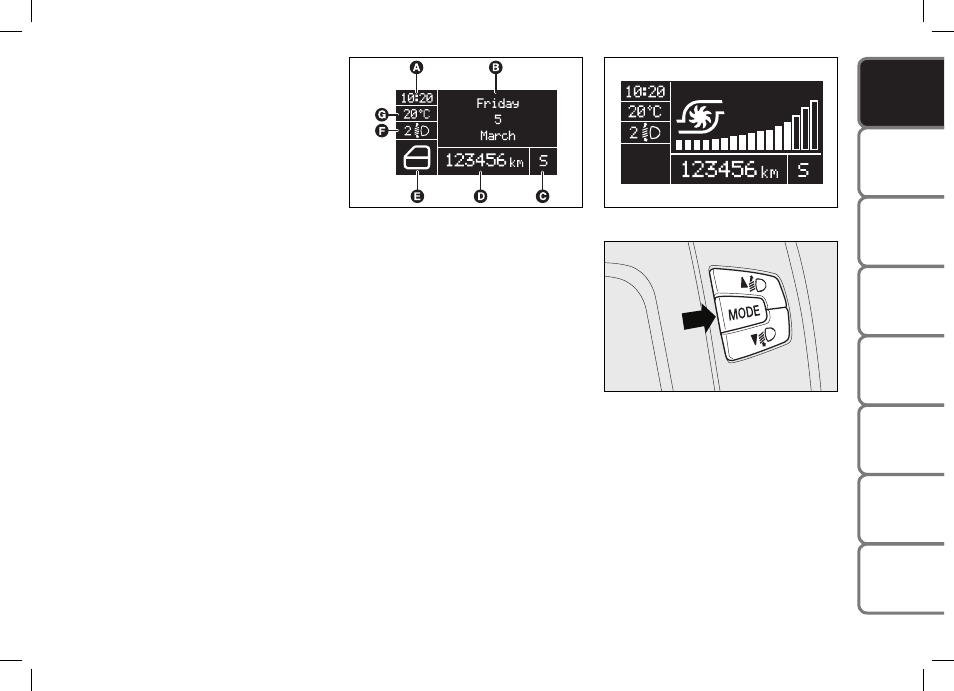

“STANDARD” SCREEN fig. 22
The standard screen shows the following
indications:
A Clock
B Date
C Sport function indication (where pro-
vided)
D Odometer (covered km or miles)
E Indications about car conditions (e.g.:
doors open, or possible presence of ice
on road, etc. ...)
F Headlight aiming position (only with
dipped beam headlights on)
G External temperature
On 1.4 T-JET versions, selecting the menu
item “Engine info”, when turning start-up
key to MAR position, the display shows
engine oil pressure fig. 22a.
CONTROL BUTTONS fig. 23
Õ To scroll the display and the related
options upwards or to increase the
value displayed.
MODE Brief press to open the menu
and/or to move to next screen or to con-
firm the option required.
Long press to go back to the standard
screen.
Ô To scroll the display and the related op-
tions downwards or to decrease the
value displayed.
Note Buttons Õ and Ô activate different
functions according to the following situ-
ations:
– to scroll the menu options upwards and
downwards;
– to increase or to decrease values during
settings.
Note When opening one of the front
doors the display will show for a few sec-
onds the clock and covered km or miles.
fig. 23 F0Q0643m
fig. 22 F0Q3268g fig. 22a F0Q0041m
023-036 BRAVO GB 10-05-2007 10:05 Pagina 23
