ВНИМАНИЕ
Иллюстрации
приведены
только в качестве примера.
При установке сиденья следуйте инс-
трукциям, предоставленным произ-
водителем.
Группа 3
Для перевозки ребенка весом от 22 до
36 кг не требуется дополнительной опо-
ры между спиной ребенка и спинкой
кресла.
На рис. 11 приведено правильное поло-
жение детского кресла на заднем сиде-
ньи автомобиля.
Дети ростом выше 1,50 м могут присте-
гиваться штатными ремнями безопас-
ности, как и взрослые

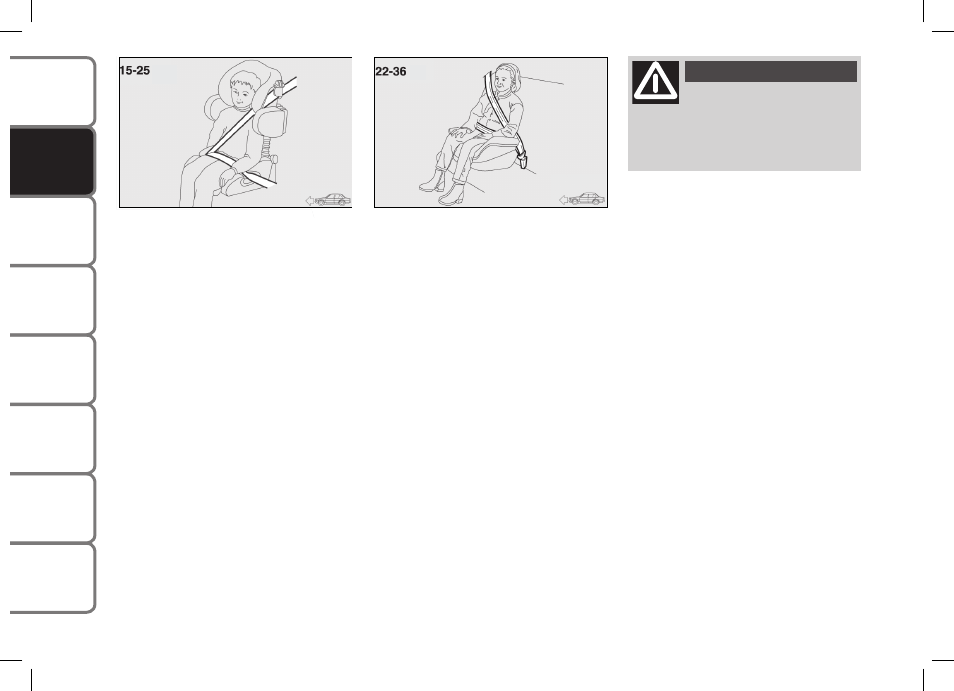

ГРУППА 2
При весе от 15 до 25 кг дети могут при-
стегиваться непосредственно ремнями
безопасности автомобиля, рис. 10. Фун-
кция сиденья этом случае заключается в
том, чтобы правильно разместить ребен-
ка относительно ремней безопасности,
чтобы плечевая ветвь ремня охватывала
грудь ребенка, а не шею, а поясная ветвь
- таз, а не живот.
DA
SH
BO
AR
D
AN
D
CO
NT
RO
LS
CORRECT USE OF THE CAR
W
ARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
CA
R
MA
IN
TE
NA
NC
E
TE
CH
NI
CA
L
SP
EC
IFI
CA
TIO
NS
INDEX
SAFETY DEVICES
114
GROUP 2
Starting from 15 kg to 25 kg in weight, chil-
dren may be restrained directly by the car
belts fig. 10. The only function of the seat
is to position the child correctly in rela-
tion to the belts, so that the diagonal part
adheres to the chest and not to the neck
and that the horizontal part clings to the
child’s pelvis and not the abdomen.
GROUP 3
For children from 22 kg to 36 kg the size
of the child’s chest no longer requires a
support to space the child’s back from the
seat back.
Fig. 11 shows proper child seat posi-
tioning on the rear seat.
Children taller than 1.50 m can wear seat
belts like adults.
fig. 10
F0Q0431m
fig. 11
F0Q0432m
The illustrations are indica-
tive only for assembly. As-
semble the seat according to the com-
pulsory instructions provided with it.
WARNING
