Cybex 9101 FT 360S - Инструкция (Страница 82)

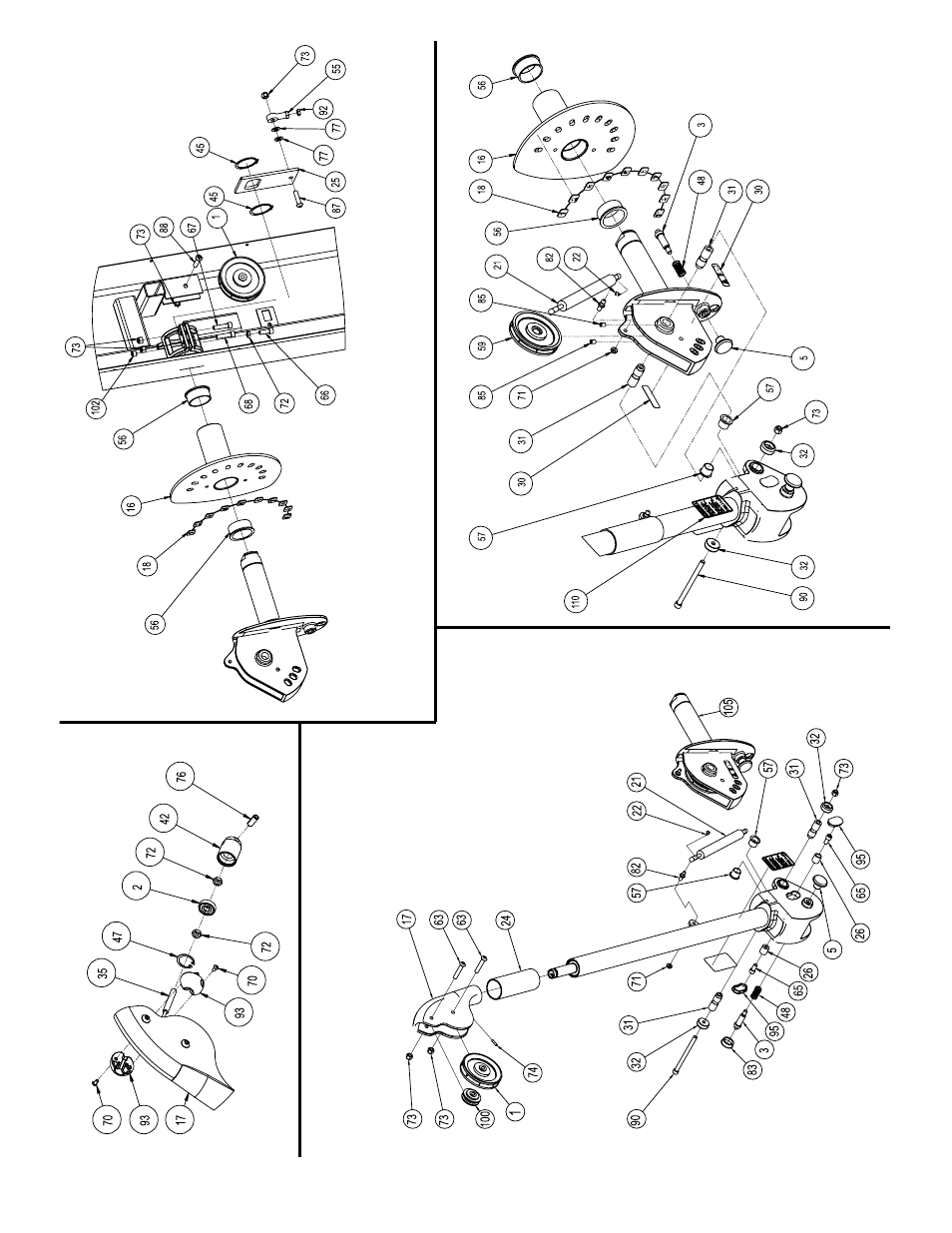

PIVOT ASSEMBL
Y DET
AIL
LEFT SIDE SHOWN WHEN F
ACING MACHINE
NOTE:
Right side to be assembled
with the same procedure the only difference is that the 9100-204 will be rotated 180 degrees and HC702817 and HN704400 will be located on the top side and decal 9100-304 will be numbered counter clockwise.
SPRING RET
AINER PLA
TE
ASSEMBL
Y DET
AIL
LEFT SIDE SHOWN WHEN F
ACING MACHINE
CABLE SWIVEL ASSEMBL
Y DET
AIL
ARM ASSEMBL
Y DET
AIL
LEFT SIDE SHOWN WHEN F
ACING MACHINE
Service
Page 8-8
Cybex FT-360S Functional Trainer Owner’s Manual
