Part names and functions
English
INTR
ODUCTION
AD
DITIONAL
INFORMA
T
ION
APPENDIX
PRE
P
ARA
T
ION
BA
S
IC
OPERA
T
ION
AD
V
ANCED
OPERA
T
ION
a

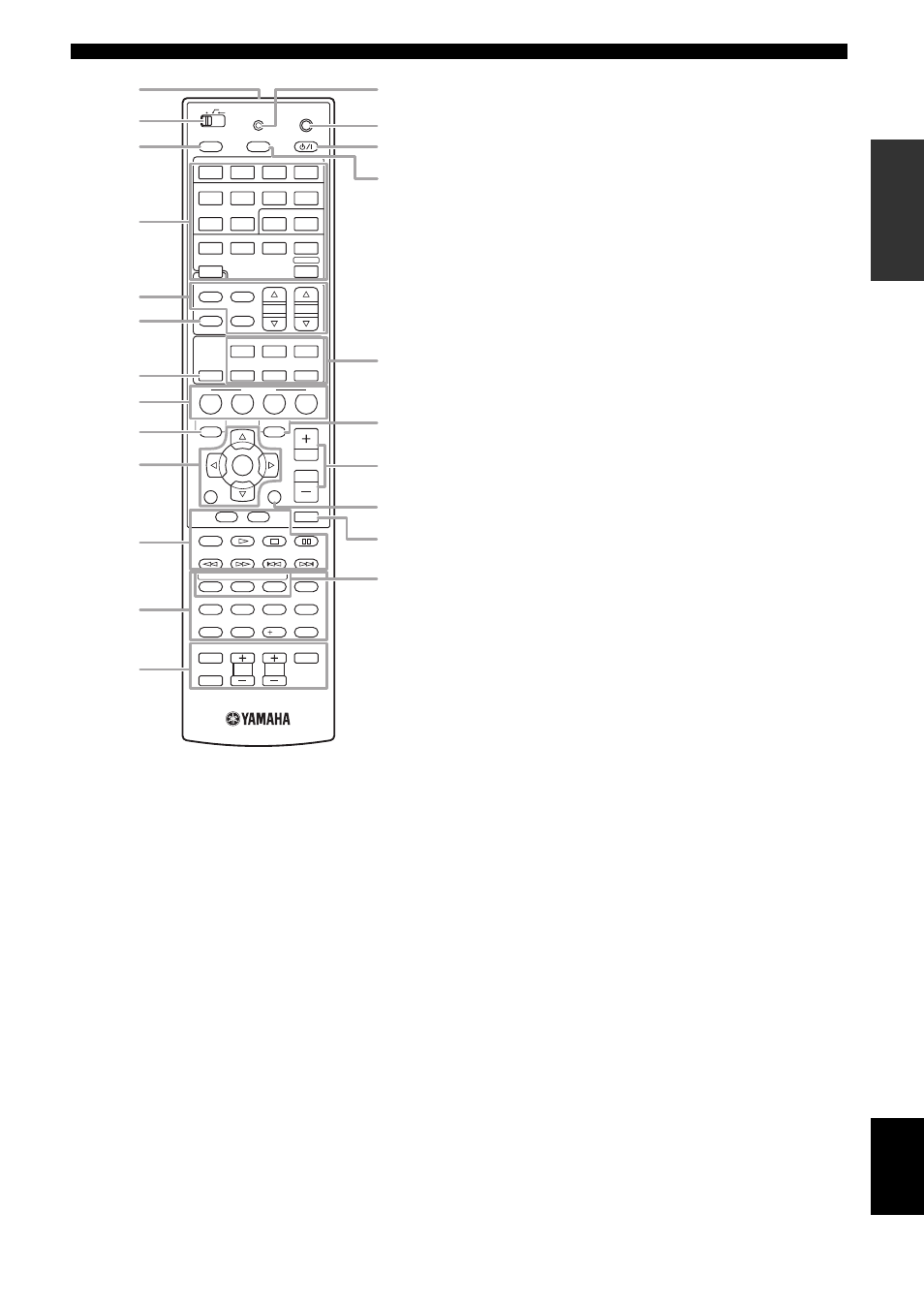

Remote control signal transmitter
Transmits infrared signals.
b
Zone selection switch
Switches amplifiers (main, Zone2 or Zone3) to be operated by
the remote control (page 60).
c
SOURCE POWER
Switches an external component on and off.
d
Input selection keys
e
Tuner keys
f
INFO
Changes the information shown on the front panel display
(page 26).
g
HDMI OUT
Switches the HDMI OUT jacks to output HDMI signals
(page 42).
h
SCENE
Switches between linked sets of input sources and sound field
programs (page 24).
i
ON SCREEN
Displays the GUI screen (page 25).
k
External component operation keys
Operate recording, playback etc. of external components
(page 61).
l
Numeric keys
Enter numbers.
m
TV control keys
Enables operations of a TV or a projector (page 61).
n
TRANSMIT
Lights up when a signal is output from the remote control.
o
CODE SET
Sets remote control codes for external component operations
(page 61).
p
POWER
Switches this unit on and standby (page 20).
q
SLEEP
Switches the sleep timer operations (page 42).
r
Sound selection keys
Selects sound field programs (page 27).
s
OPTION
Displays the Option menu (page 43).
t
VOLUME +/–
Adjust the volume of this unit (page 24).
u
DISPLAY
Displays the play information on the video monitor.
When an iPod is connected: Changes the operation mode of the
iPod connected to the Yamaha iPod universal dock (page 35).
v
MUTE
Turns the mute function on and off (page 25).
w
Sub-input selection keys
Selects USB, NET RADIO or PC when “USB/NET” is selected
as the input source.
HDMI 1-4
Selects HDMI inputs 1 through 4.
AV 1-6
Selects AV inputs 1 through 6.
AUDIO 1/2
Selects AUDIO inputs 1 and 2.
V-AUX
Selects a signal input from the VIDEO AUX jacks.
PHONO
Selects a signal input from the PHONO jacks.
MULTI
Selects a signal input from the MULTI CH
INPUT jacks.
DOCK
Selects a Yamaha iPod universal dock/Bluetooth
wireless audio receiver connected to the DOCK terminal.
TUNER
Selects the FM/AM tuner.
USB/NET
Selects a USB device or a signal input via
network (selected by wSub-input
selection keys).
BD
DVD
TV
CD
RADIO
SLEEP
FM
AM
INFO
MEMORY
1
2
3
4
1
2
3
4
5
6
1
2
PHONO
MULTI
DOCK
TUNER
V-AUX
HDMI
MUSIC
STEREO
ENHANCER SUR. DECODE
MOVIE
MUTE
STRAIGHT
HDMI OUT
PURE DIRECT
USB/NET
PRESET
TUNING
ON SCREEN
OPTION
SOURCE
POWER
7
8
5
6
9
0
1
2
3
4
USB
NET RADIO
PC
TOP
MENU
SCENE
RETURN
REC
ENT
POWER
TV
INPUT
MUTE
ENTER
VOLUME
DISPLAY
MENU
HDMI
AUDIO
TRANSMIT
CODE SET
10
TV VOL
TV CH
MAIN
ZONE 2
ZONE 3
AV
POWER
p
q
s
r
t
u
v
w
o
n
a
c
d
e
g
h
i
k
l
m
b
j
f
FM/AM
Switches a band between FM and AM.
MEMORY
Presets radio stations.
PRESET k / n
Selects a preset station.
TUNING k / n
Changes FM/AM frequencies.
j
Cursors k / n / l / h
Select menu items or change
settings.
ENTER
Confirms a selected item.
RETURN
Returns to the previous screen or
ends the menu display.
