18
En
Connections

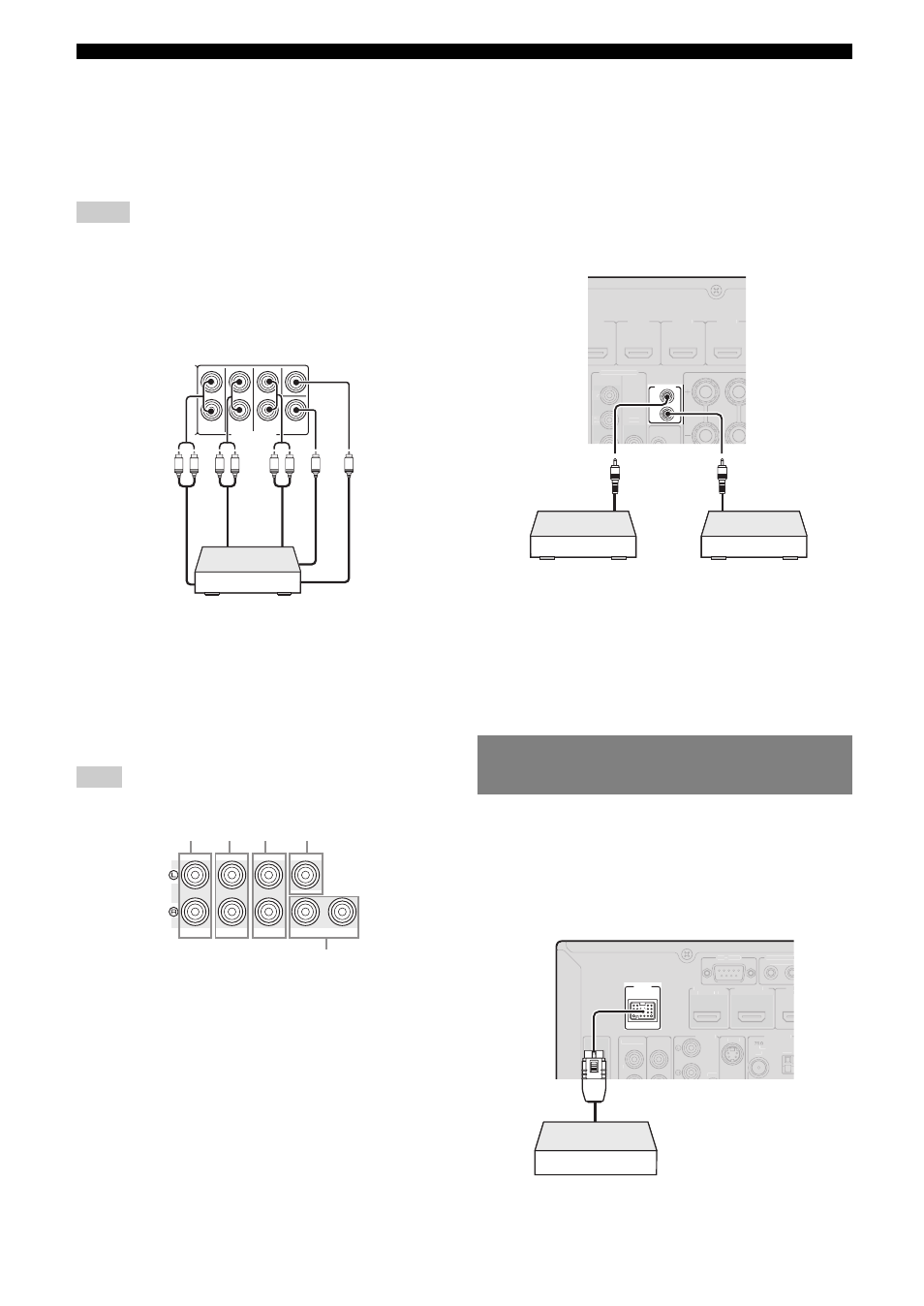

■ Connecting a multi-format player or an
external decoder
This unit is equipped with 8 additional input jacks (Front
L/R, Center, Surround L/R, Surround Back L/R and
Subwoofer) for analog multi-channel input from a multi-
format player, external decoder, etc.
Notes
• When you select “MULTI CH” as the input source, the digital sound field
processor is automatically disabled.
• Since this unit does not redirect signals input at the MULTI CH INPUT
jacks to accommodate for missing speakers, connect at least a 5.1-
channel speaker system when using this feature.
• You can specify a video signal to be output during a multi-channel audio
reproduction (page 45). If your DVD player has analog multi-channel
output jacks, connect them to the MULTI CH INPUT jacks while making
a video connection (component video or composite).
■ Connecting an external amplifier
If you want to use another amplifier, connect an external
amplifier to the PRE OUT jacks. Each PRE OUT jack
outputs the same channel signals as the corresponding
speaker terminals.
Note
• When you make connections to the PRE OUT jacks, do not make any
connections to the speaker terminals.
a FRONT PRE OUT jacks
Front channel output jacks.
b SURROUND PRE OUT jacks
Surround channel output jacks.
c SUR.BACK PRE OUT jacks
Surround back output jacks. When you only connect one
external amplifier for the surround back channel, connect it to
the left SUR.BACK (SINGLE) jack.
y
• To output surround back channel signals at these jacks, set
“Surround Speaker” to any parameter except “None” (page 49).
d CENTER PRE OUT jack
Center channel output jack.
e SUBWOOFER PRE OUT 1/2 jack
Connect a subwoofer with a built-in amplifier. When two
subwoofers are connected, the same sound is output from them.
■ Transmitting/receiving remote control signals
When the components have the capability of the
transmission of the remote control signals, connect the
REMOTE IN and REMOTE OUT jacks to the remote
control input and output jack with the monaural analog
mini cable as follows.
y
• If connecting a Yamaha component that supports the SCENE control
signal reception to the REMOTE OUT jack of this unit, you can start
playback on the Yamaha component by using the SCENE function
(page 24).
• If connecting a component other than Yamaha products to the REMOTE
OUT jack of this unit, set “SCENE IR” to “OFF” in the advanced setup
menu (page 63).
This unit has the DOCK terminal, to which you can
connect a Yamaha iPod universal dock (YDS-11, sold
separately) or a Bluetooth wireless audio receiver (YBA-
10, sold separately). You can play an iPod or a Bluetooth
component with this unit by connecting it to the DOCK
terminal.
FRONT SURROUND SUR.BACK SUBWOOFER
MULTI CH INPUT
CENTER
L R L R R L
Surr
ound
bac
k
out
Surr
ound
out Fr
o
n
t out
Subw
oof
er out
Center out
Multi-format player or external decoder
(7.1-channel output)
FRONT SURROUND SUR. BACK SUBWOOFER
PRE OUT
CENTER SINGLE
1 2
a b c d
e
Connecting a Yamaha iPod universal dock
or Bluetooth™ wireless audio receiver
IN
OUT
REMOTE
HDMI 1
BD/DVD)
HDMI 2 HDMI 3 HDMI 4
VIDEO
MONITOR OUT
P R
P B
Y
COMPONENT
VIDEO
Remote
control out
Remote
control in
Infrared signal
receiver or Yamaha
component
IR flasher or
Yamaha component
(CD or DVD player, etc.)
DOCK
RS- 232C TRIGGER O
COMPONENT
VIDEO
P R
1 2
OPTICAL
OUT
HDMI OUT 2 HDMI OUT 1
ANTENNA PHONO
UNBAL.
FM GND
S VIDEO
HD
(BD (HDMI CONTROL)
GND
Yamaha iPod universal dock or
Bluetooth wireless audio receiver
