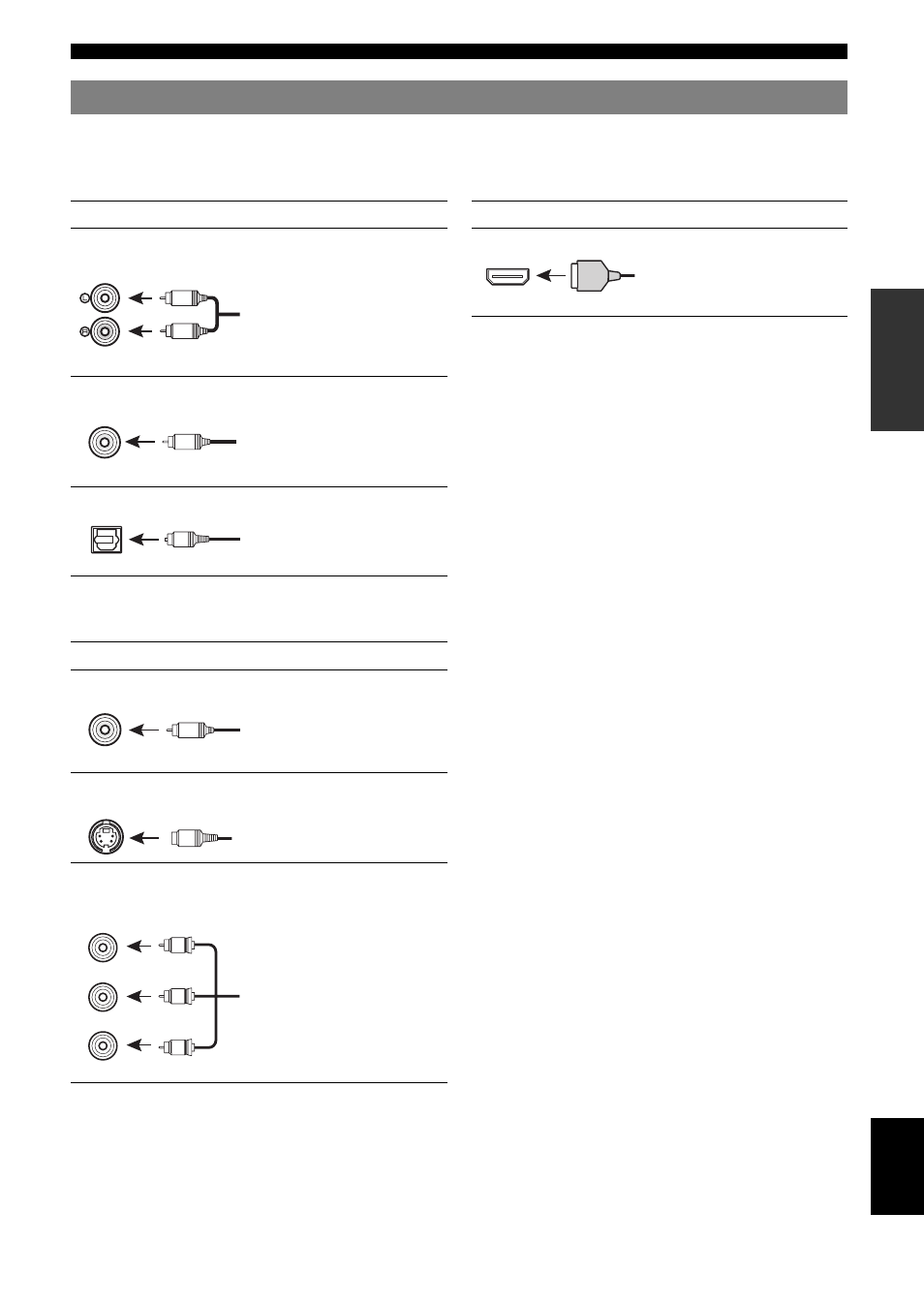

This unit has the following input and output jacks. Use jacks and cables appropriate for components that you are
connecting.
■ Audio jacks
■ Video jacks
■ Video/audio jacks
y
• We recommend that you use a commercially available 19-pin HDMI
cable no longer than 5 meters (16 feet) with the HDMI logo printed on it.
• Use a conversion cable (HDMI jack
↔ DVI-D jack) to connect this unit
to other DVI components.
• You can check the potential problem about the HDMI connection
Information on jacks and cable plugs
Jack and cables
Description
Analog audio jacks
To transmit conventional analog
stereo audio signals. Use stereo pin
cables.
COAXIAL jacks
To transmit coaxial digital audio
signals. Use pin cables.
OPTICAL jacks
To transmit optical digital audio
signals. Use optical fiber cables.
Jack and cables
Description
VIDEO jacks
To transmit conventional
composite video signals. Use pin
cables.
S VIDEO jack
To transmit S-video signals that
include luminance (Y) and
Cameroonians (C) components.
Use an S-video cable.
COMPONENT VIDEO
jacks
To transmit component video
signals that include luminance (Y),
chrominance blue (P
B
) and
chrominance red (P
R
) components.
Use component video cables.
L
R
(white)
(red)
COAXIAL
C
(orange)
OPTICAL
O
VIDEO
V
(yellow)
S VIDEO
S
P
R
P
B
Y
COMPONENT
VIDEO
P
B
Y
P
R
(red)
(blue)
(green)
Jack and cables
Description
HDMI jacks
To transmit digital video and
digital audio signals. Use HDMI
cables.
HDMI
HDMI
