■ Presence left and right speakers (PL and PR)
The presence speakers supplement the sound from the
front speakers with extra ambient effects produced by the
sound field programs (page 27). We recommend that you
use the presence speakers especially for the CINEMA
DSP sound field programs. To use the presence speakers,
connect the speakers to SP1 terminals and then set “Extra
Speaker Assignment” to “Presence” (page 49).

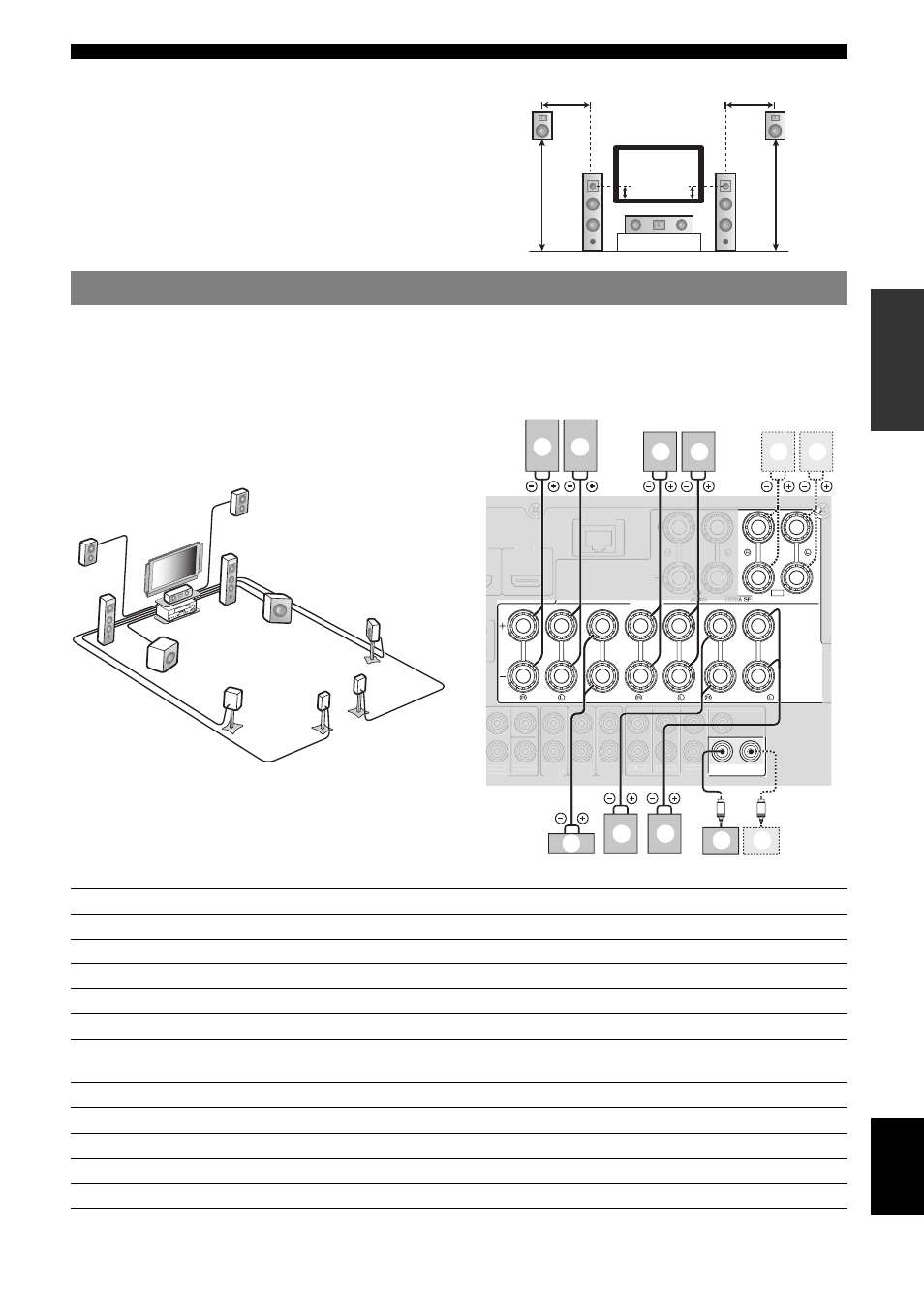

Connect your speakers to the respective terminals according to your speaker layout. The following illustration shows how
to connect speakers for 7.1-channel speaker layout.
y
• You can connect Zone2/3 speakers to the EXTRA SP (SP1/SP2) terminals (page 59).
• You can connect up to two subwoofers. When two subwoofers are connected, the same sound is output from them.
FR
PR PL
C
FL
0.5 to 1 m (1 to 3 ft) 0.5 to 1 m (1 to 3 ft)
1.8 m
(6 ft)
1.8 m
(6 ft)
1/4 from
bottom
Connecting speakers
a
b
c
d
e
f
g
h
i
j
k
SUBWOOFER
SPEAKERS
FRONT CENTER
SINGLE CLASS 2 WIRING
CABLAGE
CLASSE 2
SURROUND SURROUND BACK/
BI-AMP
ZONE2/PRESENCE
1 2
SP1
NETWORK
SUR.BACK SUBWOOFER
H INPUT
AUDIO
OUT
ZONE3
OUT
ZONE2
OUT
FRONT SURROUND SUR. BACK
PRE OUT
CENTER SINGLE
3 HDMI 4
CENTER
E
c
g f
h i
e d
b a
k j
Speakers Jacks on this unit 7.1-channel 6.1-channel 5.1-channel
a Front left FRONT (L) ✔ ✔ ✔
b Front right FRONT (R) ✔ ✔ ✔
c Center CENTER
✔ ✔ ✔
d Surround left SURROUND (L) ✔ ✔ ✔
e Surround right SURROUND (R) ✔ ✔ ✔
f Surround back left
(Surround back for 6.1-channel)
SURROUND BACK (L)
(SINGLE)
✔ ✔
g Surround back right SURROUND BACK (R)
✔
h Subwoofer 1 SUBWOOFER 1 ✔ ✔ ✔
i Subwoofer 2 SUBWOOFER 2 Option Option Option
j Presence left SP1 (L) Option Option Option
k Presence right SP1 (R) Option Option Option
