17
En
Connections
English
INTR
ODUCTION
AD
DITIONAL
INFORMA
T
ION
APPENDIX
PRE
P
ARA
T
ION
BA
S
IC
OPERA
T
ION
AD
V
ANCED
OPERA
T
ION
y
• Input jacks in parentheses indicate the jacks to which the SCENE function (page 24) is assigned by the initial factory settings. To use the SCENE function
with the initial factory settings, connect external components that support the SCENE function to these jacks.
• You can change the name of the input source displayed on the front panel display as necessary (page 53).
• See page 58 on how to use the ZONE2/3 OUT jacks.
• You can select the video to be output when “AUDIO1” or “AUDIO2” is selected as the input source or assign another video input jack to “AV3” or “AV4”
(page 45). In case the default combinations of the audio/video input jacks on this unit do not correspond to your external component, change the video
input jack assignments according to your external component.
■ Audio player
y
• If your CD player has a coaxial digital output jack, connect it to the AV3 jack of this unit. In this case, you can use the SCENE function (page 24) with the
initial factory settings.
• When connecting a turntable with a low-output MC cartridge to the PHONO jacks, use an in-line boosting transformer or MC-head amplifier.
• Connect your turntable to the GND terminal of this unit to reduce noise in the signal.

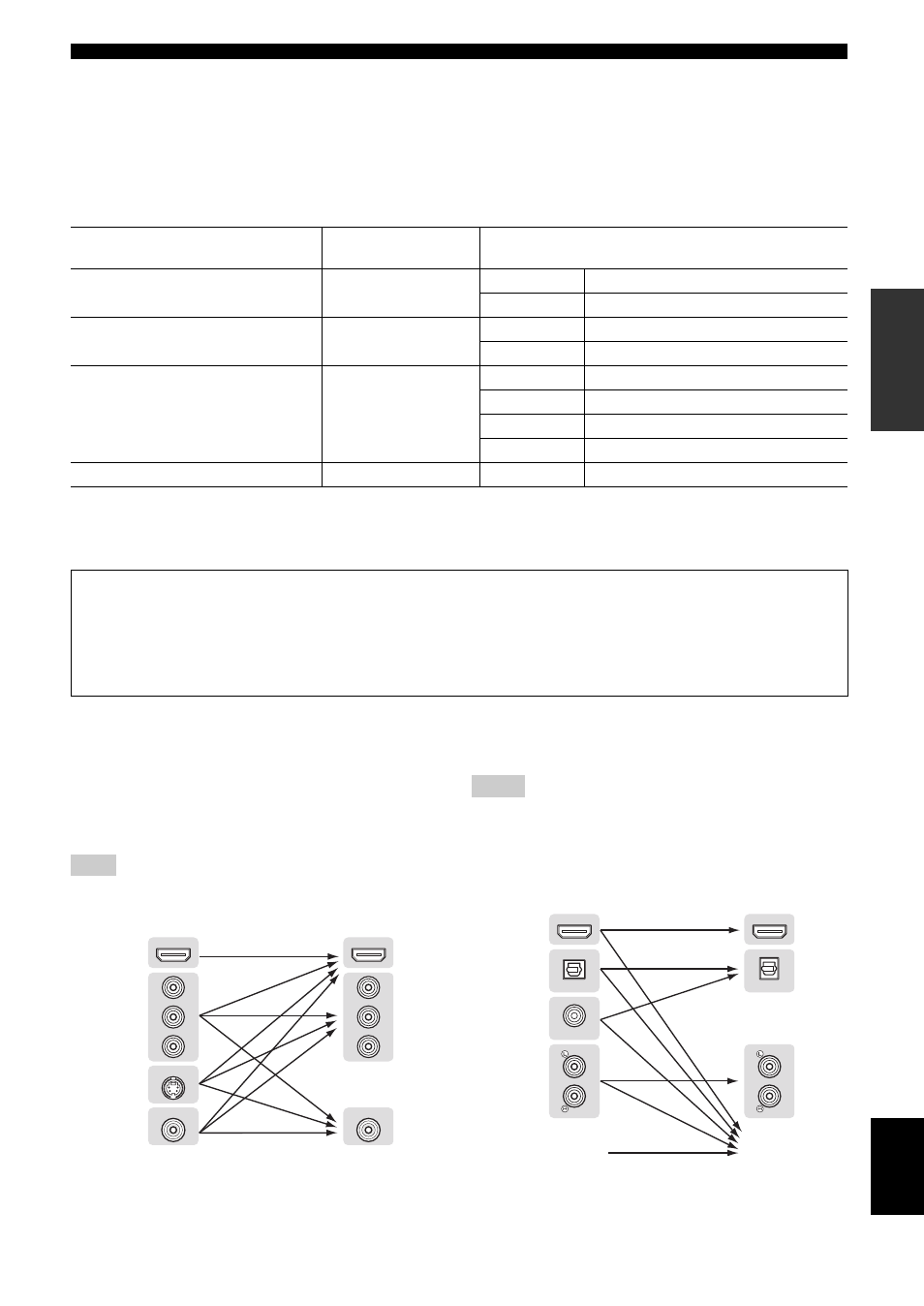

■ Internal signal flow
Video signal flow
This unit automatically converts input video signals and
outputs the signals to the HDMI OUT jacks and
MONITOR OUT (COMPONENT VIDEO and VIDEO)
jacks (video conversion).
Note
• The AV OUT (composite video) jack only outputs video signals input to
the composite video input jacks.
Audio signal flow
Notes
• Audio signals input to the HDMI input jacks are output from either the
speaker terminals or HDMI OUT 1/2 jacks depending on the “Audio
Output” setting (page 51).
• The DIGITAL AUDIO (OPTICAL OUT) jack outputs digital audio
signals only when signals are input to the optical or coaxial optical input
jacks and corresponding input source is selected.
External component
Output jacks on
components
Input jacks on this unit
External component with optical digital
output
Optical digital output AV 1 (TV) OPTICAL
AV 4 OPTICAL
External component with coaxial digital
output
Coaxial digital output AV 2 COAXIAL
AV 3 (CD) COAXIAL
External component with analog audio
output
Analog audio output AV 5 Analog audio
AV 6 Analog audio
AUDIO 1 Analog audio
AUDIO 2 Analog audio
Turntable Analog audio output PHONO Analog audio
About audio/video output jacks
When using the AV OUT jacks: connect these jacks to composite video and analog audio input jacks of an external
component.
When using the AUDIO OUT jacks: connect these jacks to analog audio input jacks of an external component.
When using the DIGITAL AUDIO (OPTICAL OUT) jack: connect this jack to optical digital input jack of an
external component.
HDMI
S VIDEO
VIDEO
P R
P B
Y
HDMI OUT
VIDEO
P R
P B
Y
HDMI
Component
video
S-video
Input Output
Composite
video
HDMI
OPTICAL
HDMI OUT
OPTICAL
OUT
COAXIAL
HDMI
Optical
digital
Analog
Input Output
MULTI CH INPUT
Speaker
terminals
Coaxial
digital
