A ZONE2 ON/OFF
Switches Zone2 on and off (page 60).
B HDMI THROUGH
Lights up in the following cases while this unit is on standby.
• when the HDMI control function is on
• when the HDMI signal standby-through function is currently
working
C ZONE3 ON/OFF
Switches Zone3 on and off (page 60).
D ZONE CONTROLS
Selects a zone to control with the main amplifier operations
(page 60).
E INFO
Changes information (input, DSP program, audio decoder, etc)
displayed on the front panel display (page 26).
F PRESET l / h
Selects an FM/AM preset station (page 32).
G MEMORY
Registers FM/AM stations as preset stations (page 32).
H BAND
Change the tuner bands between FM and AM.
I TUNING l / h
Changes FM/AM frequencies.
J Front panel display
Displays information on this unit (page 6).
K VOLUME control
Controls the volume of this unit (page 24).
L MAIN ZONE ON/OFF
Turns this unit on and off (page 20).
M PHONES jack
For plugging headphones (page 26).
N USB port
For connecting a USB memory device or USB portable audio
player (page 19)
O TONE CONTROL
Adjusts high-frequency/low-frequency output of speakers/
headphones (page 25).
P PROGRAM selector
Changes sound field programs (page 27).
Q STRAIGHT
Toggles between the selected sound field program and straight
decode mode (page 30).
R SCENE
Switches between linked sets of input sources and sound field
programs (page 24).
S PURE DIRECT
Changes mode to Pure Direct mode (page 25). This key lights up
when Pure Direct mode is on.
T INPUT selector
Selects an input source (page 24).
U OPTIMIZER MIC jack
For connecting the supplied optimizer microphone and adjusting
output characteristics of speakers (page 21).
V VIDEO AUX jacks
For connecting a game console, camcorder or digital camera to
either the HDMI IN jack or analog AUDIO/VIDEO jacks
(page 19).

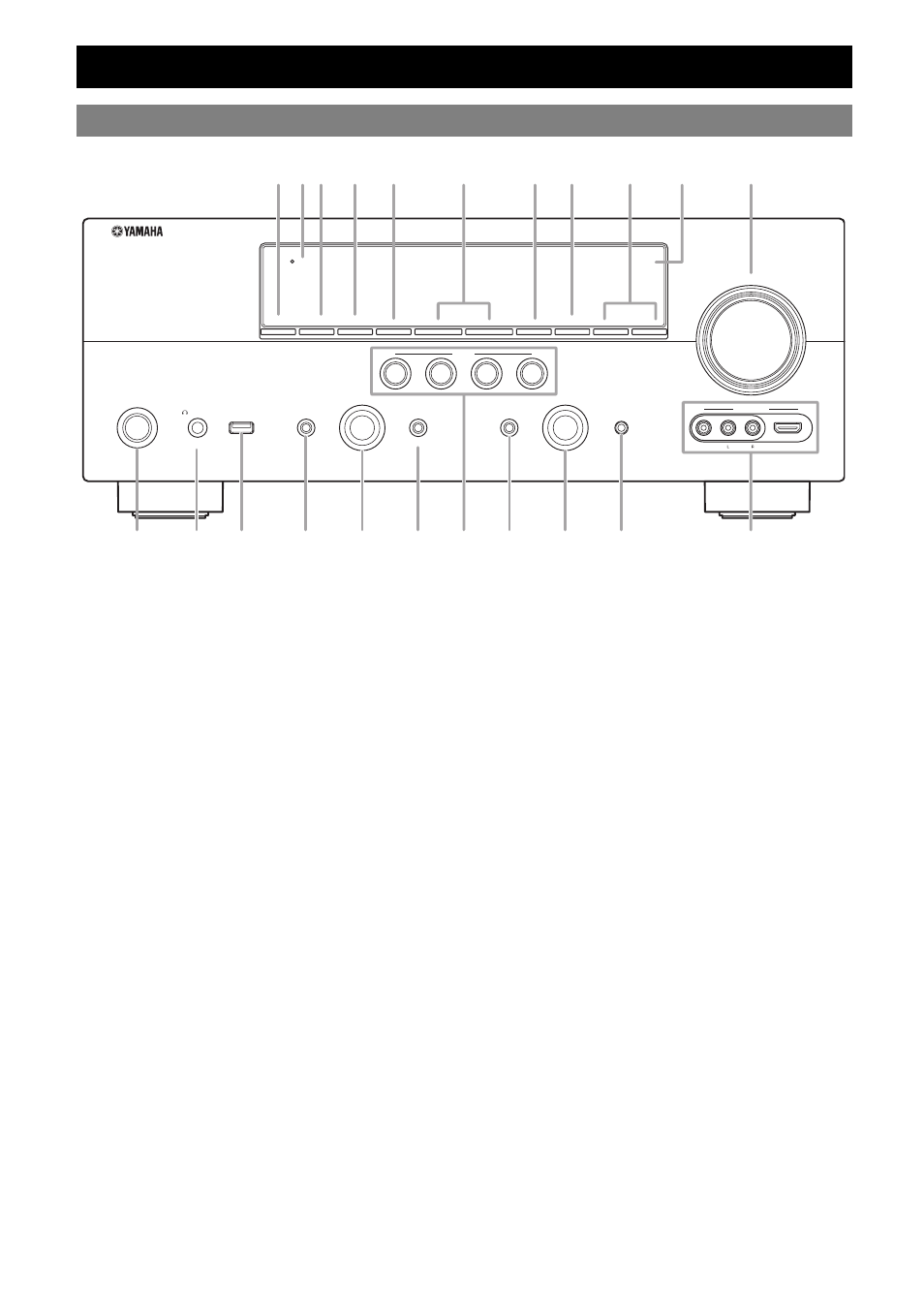

Part names and functions
Front panel
ON/OFF
PHONES
MAIN ZONE
SILENT CINEMA
TONE CONTROL
PROGRAM
STRAIGHT PURE DIRECT
INPUT
OPTIMIZER MIC
VIDEO HDMI IN AUDIO
THROUGH
VIDEO AUX
VOLUME
HDMI
EFFECT
BD/DVD TV CD RADIO
SCENE
INFO PRESET l h l h MEMORY
ZONE2
ON/OFF
ZONE
CONTROLS
ZONE3
ON/OFF BAND TUNING
USB
L P S O Q T
A B C D E G H F I J K
U M N R V
