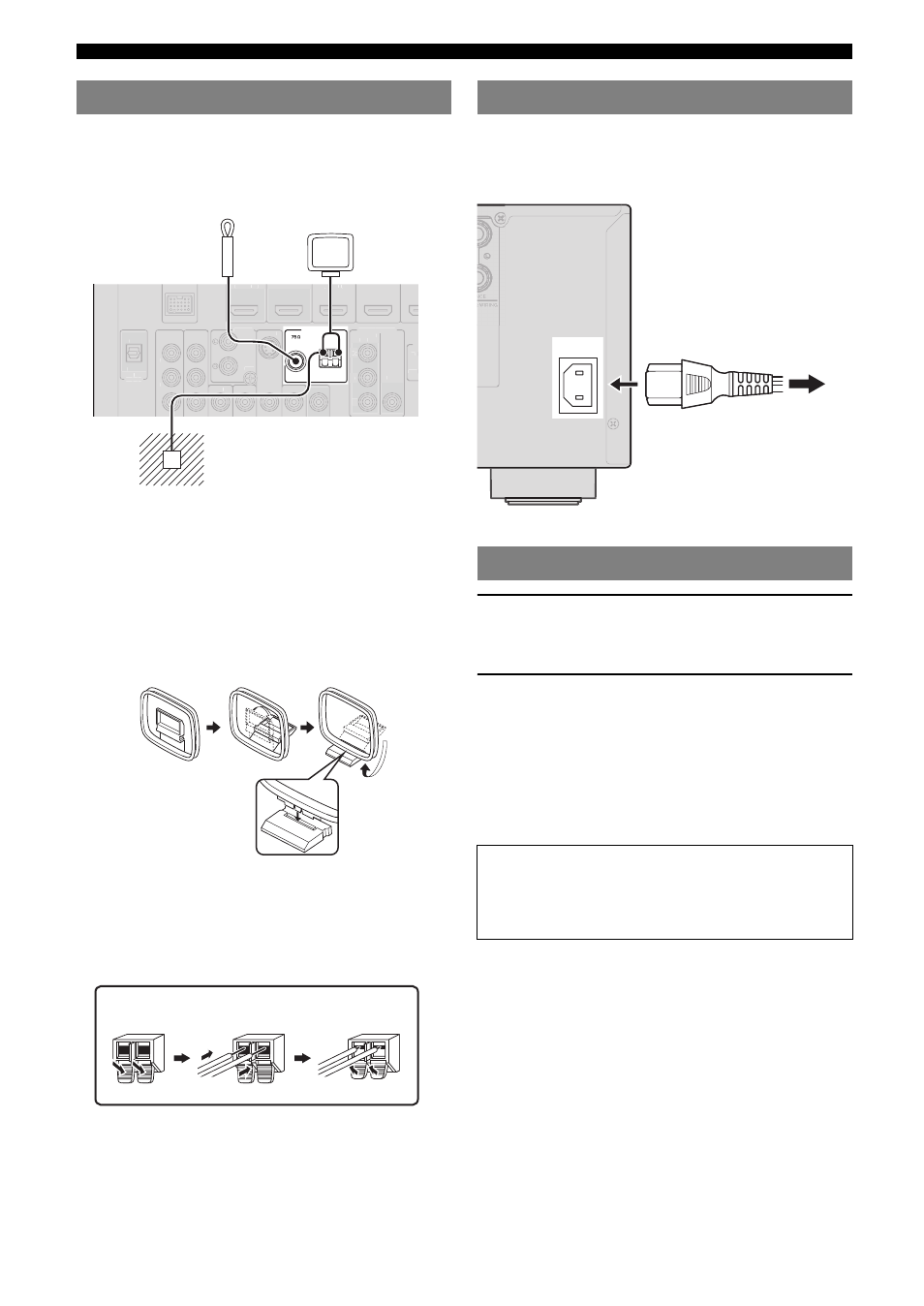

Connections
An indoor FM antenna and an AM loop antenna are
supplied with this unit. Connect these antennas properly to
the respective jacks.
y
• The supplied antennas are normally sensitive enough to obtain good
reception.
• Position the AM loop antenna away from this unit.
• If you cannot get good reception, we recommend that you use an outdoor
antenna. For details, consult the nearest authorized Yamaha dealer or
service center.
• Always use the AM loop antenna even when the outdoor antenna is
connected.
Assembling the AM loop antenna
Connecting the AM loop antenna
The wires of the AM loop antenna have no polarity. You
can connect either wire to the AM terminal and the other
to the GND terminal.
After all connections are complete, plug the supplied
power cable into the AC inlet and then plug it into an AC
wall outlet.
1
Press LMAIN ZONE ON/OFF on the front
panel (or pPOWER on the remote control)
to turn on this unit.
2
Press LMAIN ZONE ON/OFF (or
pPOWER) again to turn off this unit
(standby mode).
y
• The unit needs a few seconds until ready to play back.
• You can also turn on this unit by pressing RSCENE (or hSCENE).
• This unit consumes a small amount of electricity even in the standby
mode. We recommend disconnecting the power cable from the AC wall
outlet.
Connecting the FM and AM antennas
ANTENNA
UNBAL.
FM GND AM
COMPONENT
VIDEO
P R
P B
Y
OPTICAL
OUT
VIDEO
PHONO S VIDEO
(BD/DVD) (HDMI CONTROL)
VIDEO
IN
OUT
MONITOR OUT
P R
P B
Y
RE
COMPONENT
VIDEO
DIGITAL
AUDIO
GND
Ground (GND terminal)
The GND terminal is for noise reduction.
Indoor FM antenna AM loop
antenna
Press and hold Release Insert
Connecting the power cable
Turning this unit on and off
Caution
Do not unplug this unit while it is turned on. Doing so
may damage this unit or cause the settings of this unit
to be saved incorrectly.
AC IN
To the AC wall outlet
