16
En

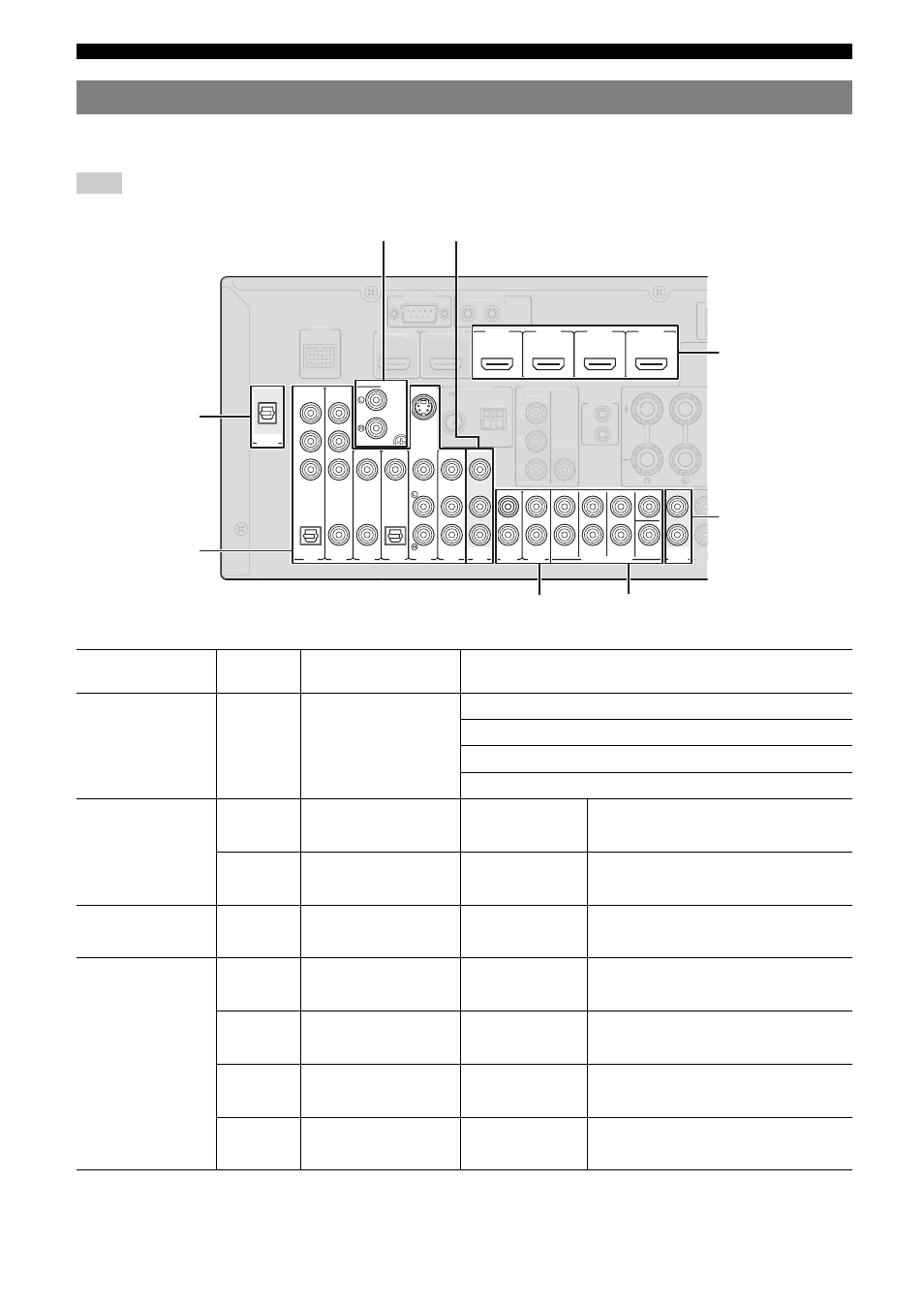

Connections
This unit has input and output terminals for respective input and output sources. You can reproduce sound and movies
from input sources selected with the front panel display or remote control.
Note
• Make sure that this unit and other components are unplugged from the AC wall outlets.
■ Audio and video player / Set-top box
Connecting other components
External
component
Signal
Output jacks on
components
Input jacks on this unit
External component
with HDMI output
Audio/Video HDMI output HDMI 1 (BD/DVD)
HDMI 2
HDMI 3
HDMI 4
External component
with component video
output
Audio Optical digital output AV 1 (TV) OPTICAL
Video Component video output COMPONENT VIDEO
Audio Coaxial digital output AV 2 COAXIAL
Video Component video output COMPONENT VIDEO
External component
with S-video output
Audio Analog audio output AV 5 Analog audio
Video S-video output S VIDEO
External component
with composite video
output
Audio Coaxial digital output AV 3 (CD) COAXIAL
Video Composite output VIDEO
Audio Optical digital output AV 4 OPTICAL
Video Composite output VIDEO
Audio Analog audio output AV 5 Analog audio
Video Composite output VIDEO
Audio Analog audio output AV 6 Analog audio
Video Composite output VIDEO
COMPONENT
VIDEO
P R
P B
Y
OPTICAL
OPTICAL
OUT
( TV )
AV 1 AV 2
COAXIAL
AV 3
(CD)
COAXIAL OPTICAL
AV 4 AV 5 AV 6
AV
OUT AUDIO1 AUDIO2
FRONT SURROUND SUR.BACK SUBWOOFER
MULTI CH INPUT
AUDIO
OUT
VIDEO
PHONO
S VIDEO
HDMI 1
(BD/DVD)
HDMI 2 HDMI 3 HDMI 4
CENTER
DIGITAL
AUDIO
GND
DOCK
RS- 232C TRIGGER OUT
N 1 2
ZON
OU
HDMI OUT 2 HDMI OUT 1
ANTENNA
UNBAL.
FM GND AM
(HDMI CONTROL)
VIDEO
IN
OUT
MONITOR OUT
12V
0.1A MAX.
FRONT
P R
P B
Y
REMOTE
COMPONENT
VIDEO
Audio / video output (AV OUT)
Audio input (AUDIO 1/2)
HDMI input
(HDMI 1-4)
Audio output
(AUDIO OUT)
Multi channel audio input (MULTI CH INPUT)
Audio output
(DIGITAL AUDIO)
Audio / video input
(AV 1-6)
Audio input (PHONO)
