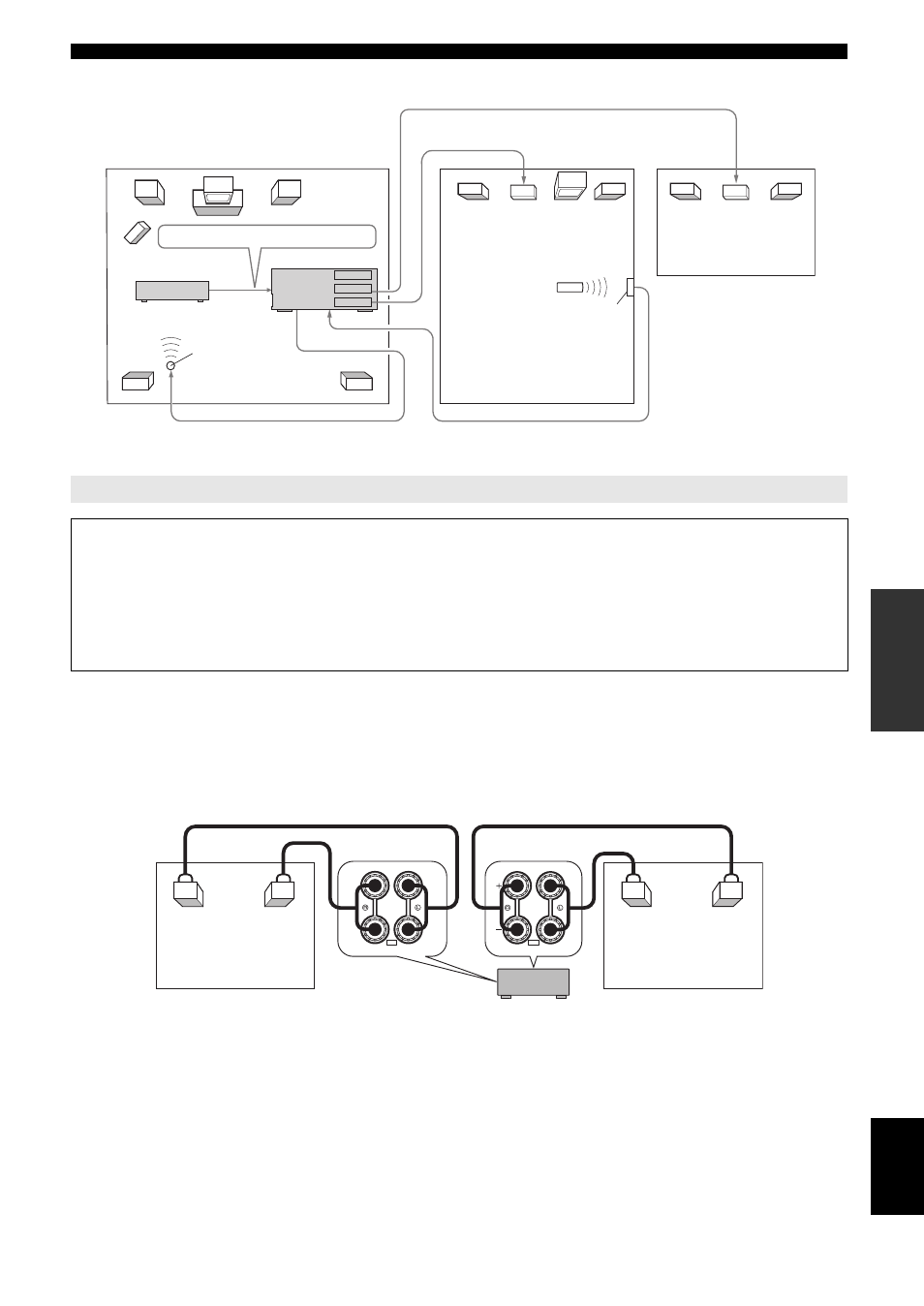

Using multi-zone configuration
English
INTR
ODUCTION
AD
DITIONAL
INFORMA
T
ION
APPENDIX
PRE
P
ARA
T
ION
BA
S
IC
OPERA
T
ION
AD
V
ANCED
OPERA
T
ION
If you want to use one internal amplifier of this unit
Connect the Zone 2 speakers directly to the SP1 terminals and then set “Extra Speaker Assignment” to “Zone2”
(page 49)
If you want to use two internal amplifiers of this unit
Connect the Zone 2 and Zone 3 speakers directly to the SP1 and SP2 terminals and then set “Extra Speaker Assignment”
to “Zone2 + Zone3” (page 49).
y
• You can use the speakers connected to EXTRA SP (SP1/SP2) terminals as the front speaker system of another zone.
• When you use the internal amplifiers for the Zone2/3 speakers, you can adjust the volume level and set the initial volume and maximum volume of the
Zone2/3 speakers (page 53).
Using the internal amplifiers of this unit
Important safety notice
The EXTRA SP terminals of this unit should not be connected to a Passive Loudspeaker Selector Box or more than
one loudspeaker per channel.
Connection to a Passive Loudspeaker Selector Box or multiple speakers per channel could create an abnormally low
impedance load resulting in amplifier damage. See this owner’s manual for correct usage.
Compliance with minimum speaker impedance information for all channels must be maintained at all times. This
information is found on the back panel of your unit.
MAIN
ZONE 2
ZONE 3
Infrared signal
emitter
DVD player etc.
Amplifier
Remote control
Infrared signal
receiver
Amplifier
Second zone
(Zone 2)
Third zone
(Zone 3)
Main zone
This unit
From the ZONE2 OUT jacks
From the ZONE3 OUT jacks
To the REMOTE IN jack From the REMOTE OUT jack
Analog audio signals only
ZONE2/PRESENCE
SP1
ZONE3
SP2 Zone3 speakers
This unit
Zone2 speakers
