14
En
Connections
According to the types of video input jacks available on your video monitor (such as a TV or projector), choose one of
the connection methods as shown below. When you connect video players such as a DVD player to this unit with an
HDMI connection, connect your video monitor to this unit with an HDMI connection.
Note
• Make sure that this unit and other components are unplugged from the AC wall outlets.
■ If your video monitor has an HDMI input jack
y
• This unit is equipped with two HDMI OUT jacks. You can select the
active HDMI OUT jack(s) by pressing gHDMI OUT (page 42).
• This unit supports the HDMI control function (page 42). If your TV
supports the HDMI control function, connect the TV to the HDMI OUT
1 jack to control this unit with the remote control of your TV.
■ If your video monitor does not have HDMI
input jacks but component video input jacks
■ If your video monitor has neither HDMI nor
component video input jacks

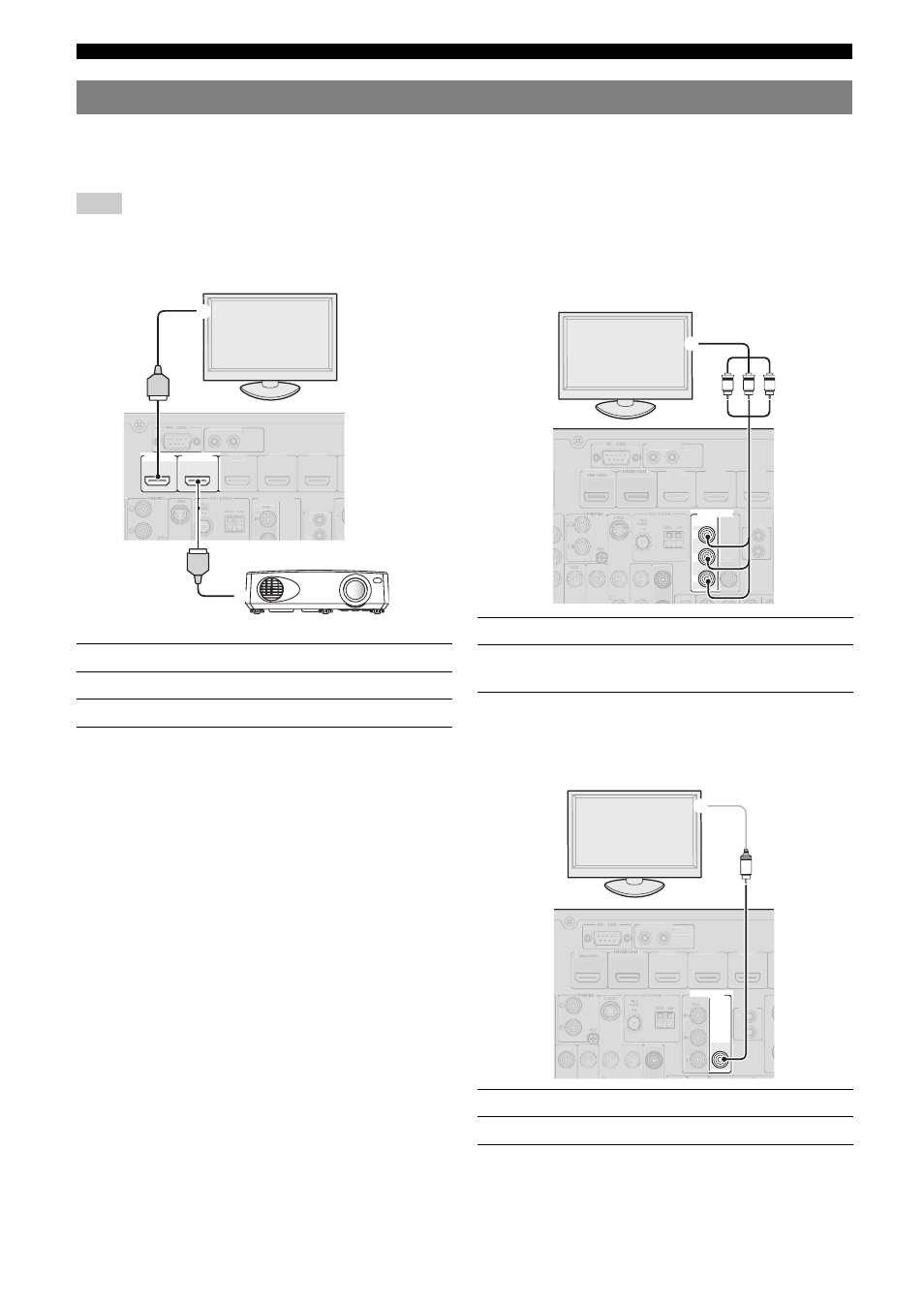

Connecting a TV monitor or projector
Jacks on components Jacks on this unit
a HDMI input HDMI OUT 1
b HDMI input HDMI OUT 2
HDMI OUT 2 HDMI OUT 1
(HDMI CONTROL)
TRIGGER OUT
1 2
HDMI 1
(BD/DVD)
HDMI 2 HDMI 3
VIDEO
IN
OUT
MONITOR OUT
12V
0.1A MAX.
P
REMOTE
COMPONENT
GND
a
HDMI
HDMI
b
TV
Projector
Jacks on components Jacks on this unit
c Component video output MONITOR OUT
(COMPONENT VIDEO)
Jacks on components Jacks on this unit
d Video input (composite) MONITOR OUT (VIDEO)
MONITOR OUT
P R
P B
Y
COMPONENT
VIDEO
TRIGGER OUT
1 2
2 HDMI OUT HDMI 1
(BD/DVD)
HDMI 2 HDMI 3
VIDEO
IN
OUT
12V
0.1A MAX.
REMOTE
c
P B Y P R
TV
VIDEO
MONITOR OUT
TRIGGER OUT
1 2
VIDEO
2 HDMI OUT HDMI 1
(BD/DVD)
HDMI 2 HDMI 3
IN
OUT
O O
12V 0.1A MAX.
REMOTE
COMPONENT
V
d
TV
