19
En
Connections
English
INTR
ODUCTION
AD
DITIONAL
INFORMA
T
ION
APPENDIX
PRE
P
ARA
T
ION
BA
S
IC
OPERA
T
ION
AD
V
ANCED
OPERA
T
ION

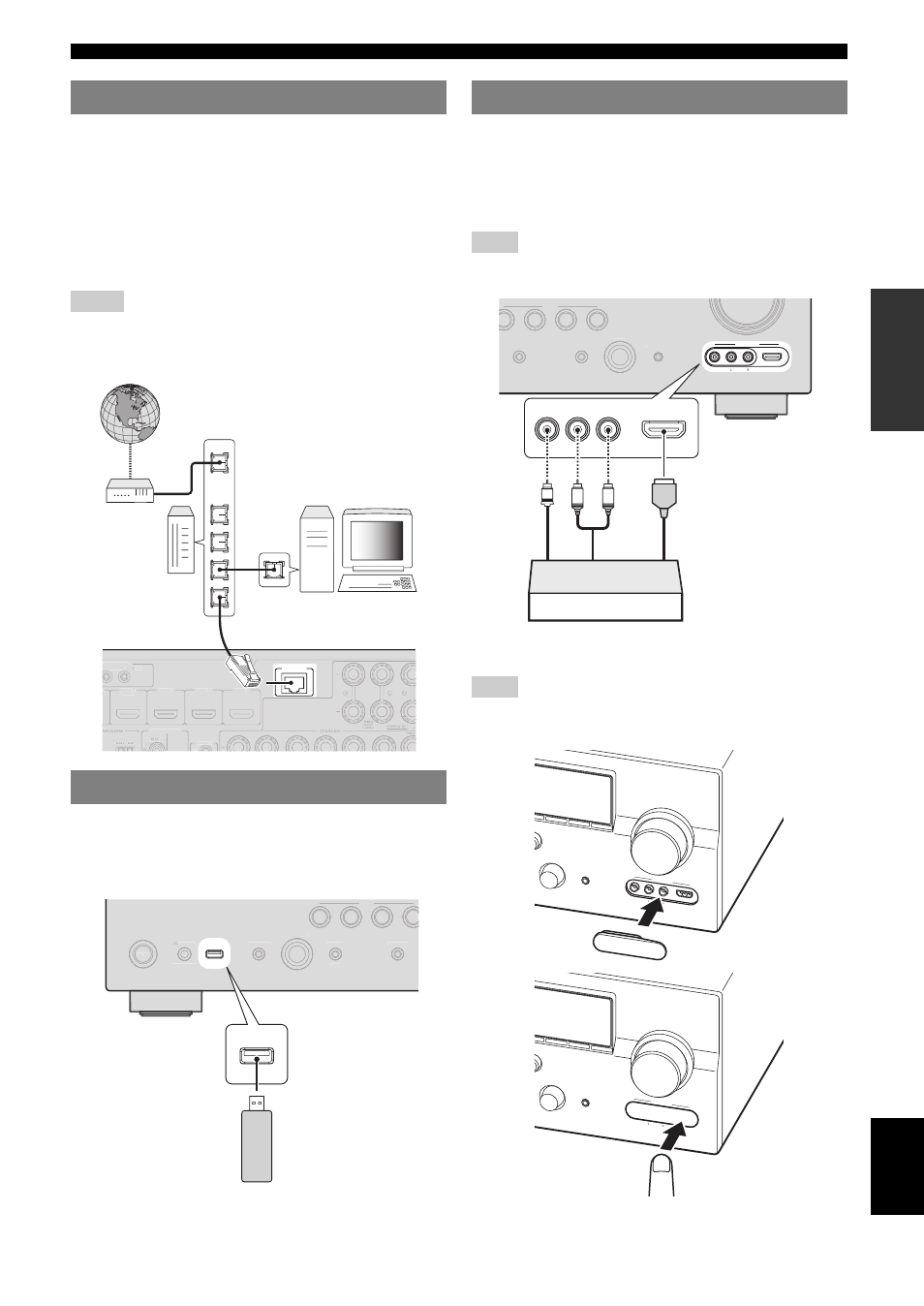

To connect this unit to your network, plug one end of a
network cable (CAT-5 or higher straight cable) into the
NETWORK port of this unit, and plug the other end into
one of the LAN ports on your router that supports the
DHCP (Dynamic Host Configuration Protocol) server
function. To enjoy Internet Radio or music files saved on
your PC, each device must be connected properly in the
network.
Notes
• Use an STP (shielded twisted pair) cable (commercially available) to
connect a network hub or router and this unit.
• If the DHCP server function on your router is disabled, you need to
configure the network settings manually (page 53).
Connect a USB memory device or USB portable audio
player to the USB port on the front panel of this unit. For
information about USB storage devices supported by this
unit, see page 38.
Use either the HDMI IN jack or analog AUDIO/VIDEO
jacks on the front panel to connect a game console,
camcorder or digital camera to this unit. Be sure to turn
down the volume of this unit and other components before
making connections.
Note
• When signals are input to the HDMI IN and analog input jacks (AUDIO
L/R and VIDEO) at the same time, the HDMI connection has a priority.
Note
• To protect against dust, attach the supplied VIDEO AUX input cover to
the VIDEO AUX jacks when you do not use the jacks. To remove the
cover, push the right section of it.
Connecting to the network
Connecting a USB storage device
NETWORK
TRIGGER OUT
1 2
2 HDMI 1
(BD/DVD)
HDMI 2 HDMI 3 HDMI 4
IN
MONITOR OUT
12V 0.1A MAX.
REMOTE
COMPONENT
LAN
WAN
Network cable
Modem
Router
PC
Internet
ON/OFF
PHONES
MAIN ZONE
SILENT CINEMA
TONE CONTROL
PROGRAM
STRAIGHT PURE DIRECT
EFFECT
BD/DVD TV CD RADIO
SCENE
USB
ON/OFF
PHONES
MAIN ZONE
SILENT CINEMA
TONE CONTROL
PROGRAM
STRAIGHT PURE DIRECT
EFFECT
BD/DVD TV CD RADIO
SCENE
USB
USB memory device or
USB portable audio player
Using the VIDEO AUX jacks
STRAIGHT PURE DIRECT
INPUT
OPTIMIZER MIC
VIDEO HDMI IN AUDIO
VIDEO AUX
EFFECT
BD/DVD TV CD RADIO
SCENE
STRAIGHT PURE DIRECT
INPUT
OPTIMIZER MIC
EFFECT
BD/DVD TV CD RADIO
SCENE
R L AUDIO VIDEO HDMI IN
V L R HDMI
Game console, camcorder
or digital camera
Ana
log audio
outpu
t
Vi
deo output HDMI
output
INPUT
OPTIMIZER MIC
VIDEO
HDMI IN
AUDIO
VIDEO AU X
VOLUME
l
h
ORY BAND
TUNING
PUSH Attach the cover
INPUT
OPTIMIZER MIC
VIDEO
HDMI I N
AUDIO
VIDEO AU X
VOLUME
l
h
ORY BAND
TUNING
PUSH
Remove the cover
