Hypertherm MAX200 Hand Torch Plasma Arc Cutting System - Инструкция (Страница 166)

Box-5010 Hanover, NH 03755-5010 603/643-3441
ITEM NO.
FROM HYPERTHERM, INC.
FOR MANUFACTURING OR FABRICATION
CONTAINED THEREON IS CONSIDERED
PROPRIETARY AND MAY NOT BE USED
THIS DRAWING AND ALL INFORMATION
PURPOSES WITHOUT PERMISSION
MATERIAL
DRAWING NO. 3 PL DECIMAL ±.005
NECESSARY WITH CHAMFER OR RADIUS .015.
SHARP EDGES. BREAK SHARP EDGES IF
PART MUST BE FREE OF BURRS AND
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
ANGULAR ±.5∞
FRACTIONS ±1/64
2 PL DECIMAL ±.01
SCALE MODEL
UNLESS OTHERWISE SPECIFIED:
DATE
DATE
DATE
CHECKED BY
APP. BY
DRAWN BY
DESCRIPTION
FILE NAME
SHEET
029313 029-2-313 029313B4

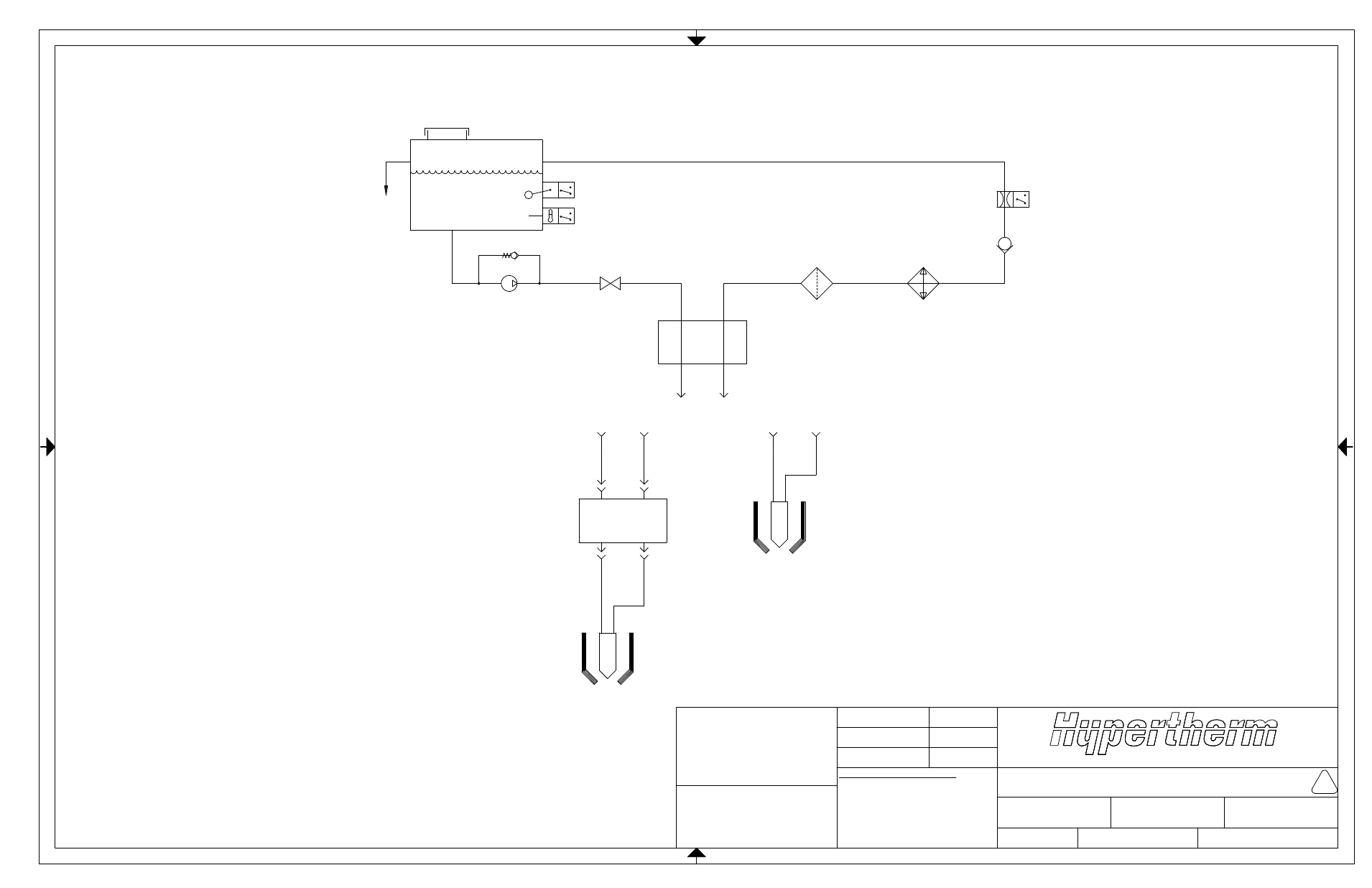

RSVR SA:MAX200/HT2000 PWR SPLY
N/A
BMD 8-13-90
MER 10-10-91
WVB
OVERFLOW
RESERVOIR
ON/OFF
PUMP
RELIEF VALVE
FLOAT SWITCH
TEMP SWITCH
CATHODE BLOCK
HEAT EXCHANGER
CHECK VALVE
FLOW SWITCH
PARTICULATE FILTER
TORCH LEADS
(INSIDE POWER SUPPLY)
COOLING LEADS
TORCH LEADS
RHF CONSOLE
HT2000
MAX200
X
