12

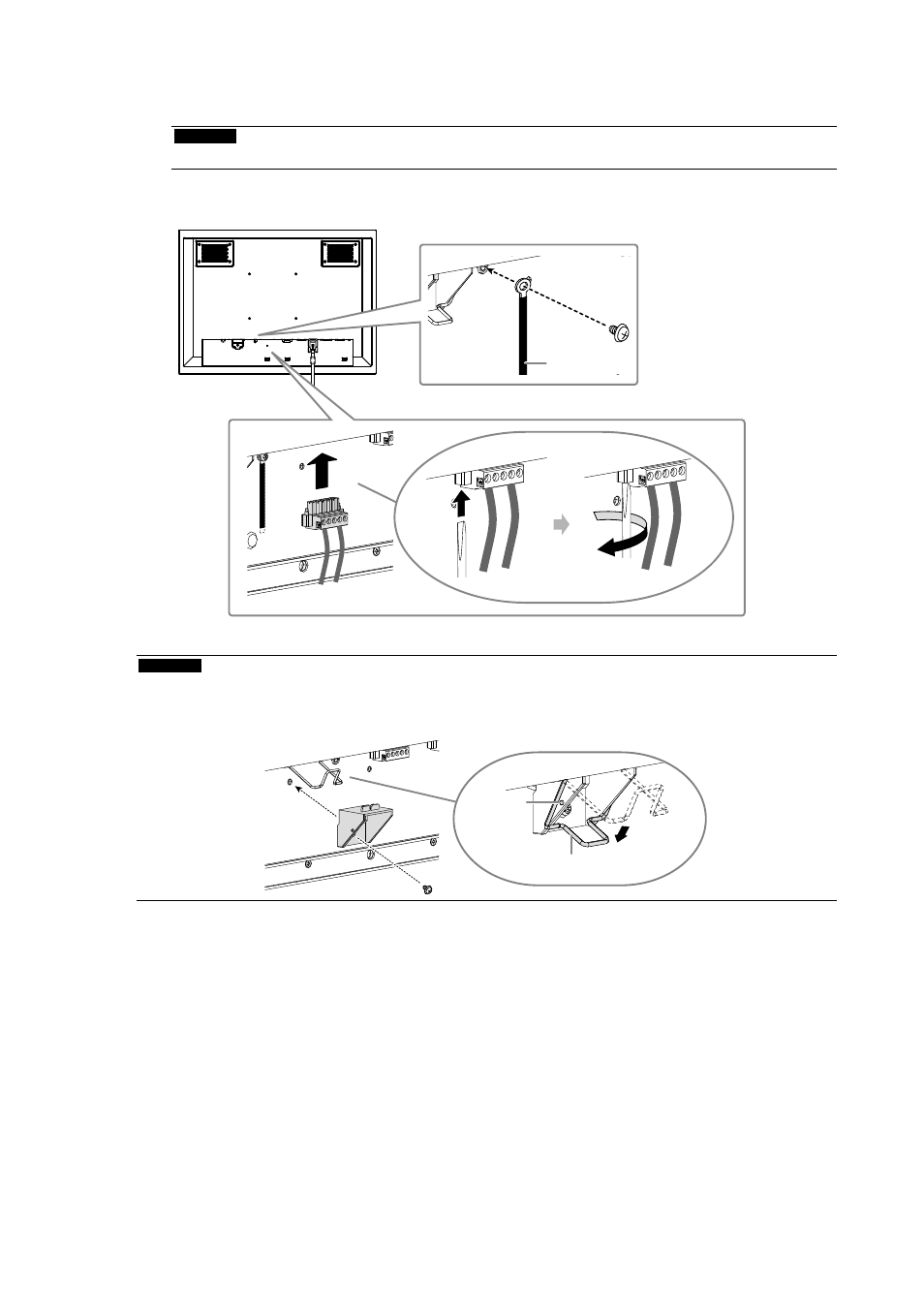

4. Connect the terminal block.
1. Secure the earth wire to the monitor.
The screw for securing is attached to the monitor.
Attention
• Use an earth wire of AWG 18 (0.75 mm 2 ) or more.
2. Connect the terminal block and tighten the clamp screw using a flathead screwdriver with a tip width of 2.5 mm.
(recommended torque: 0.2 to 0.3 N•m)
Earth wire
1.
2.
Attention
• Check the following points after connecting the terminal block.
- The insulation cover is installed on the AC power connector.
- The power plug disconnection prevention bracket is firmly pushed all the way down to secure the insulation cover.
Projection
Power plug disconnection
prevention bracket
