9
English
●

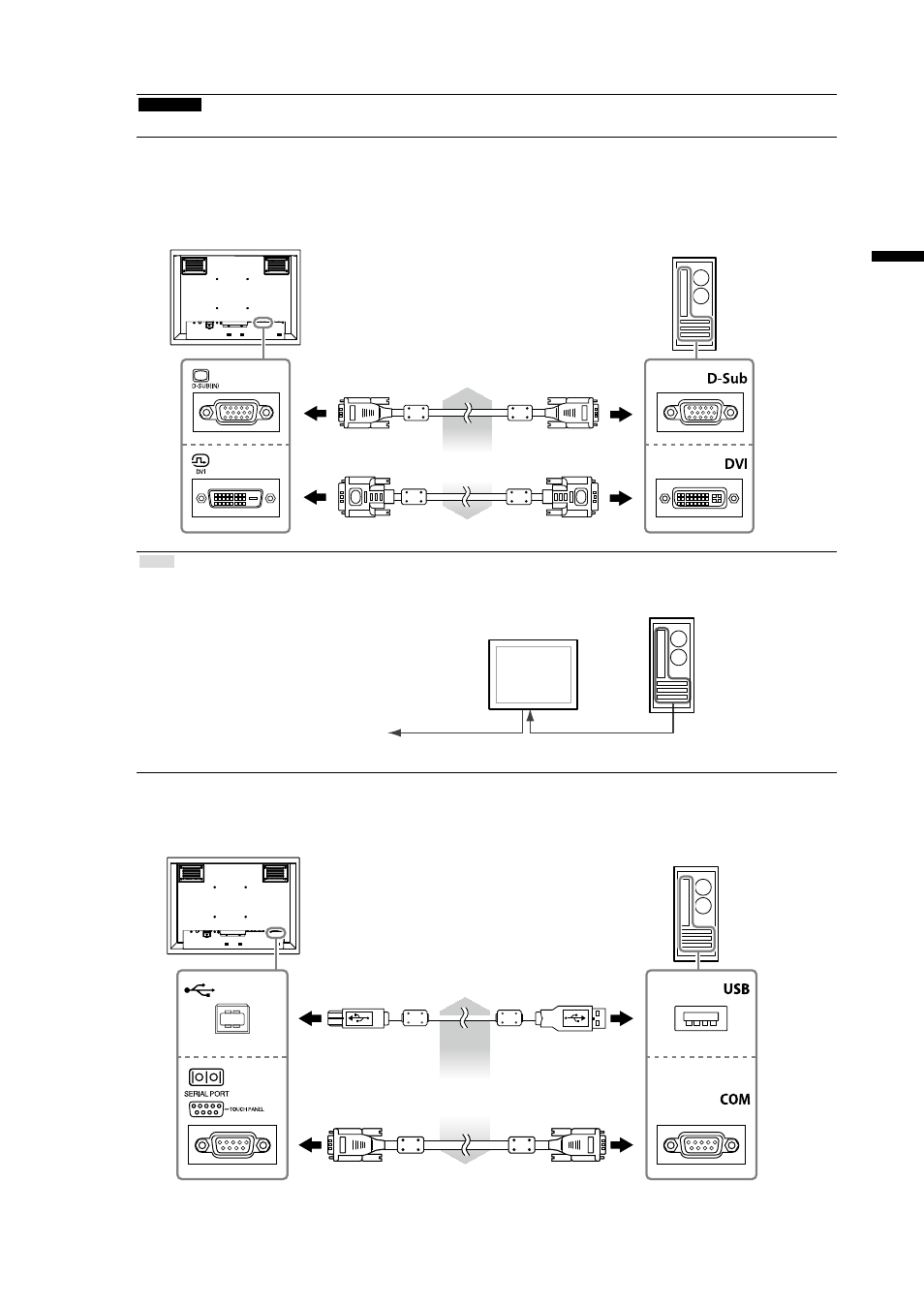

How to connect
Attention
• If a cap is attached to the connector for use, remove the cap when connecting the cable.
1.
Connect the signal cables to the input signal connectors and PC.
Check the shape of the connectors, and connect the cables.
After the connection, tighten the screws of the connectors to secure the coupling.
Analog connection
(D-Sub)
Digital connection
(DVI)
or
MD-C87 (option)
FD-C39 (option)
Note
• The signal input into the monitor can be output to a different monitor (analog signals only). Connect the signal cable to
the monitor’s signal output connector and then to another monitor.
D-SUB(OUT)
D-SUB(IN)
To another monitor
FDU2602W/FDU2602WT
* Signals cannot be output if the monitor is not turned on.
2.
If using the FDU2602WT, connect a USB cable or RS-232C cable (crossover
type) between the monitor and PC.
RS-232C cable
(Commercially available product)
USB cable
(Commercially available product)
or
