5
English
Package Contents
Check that all the following items are included in the packaging box. If any items are missing or damaged, contact
your local EIZO representative.
Note
• Please keep the packaging box and materials for future movement or transport of the monitor.
• Monitor
• EIZO LCD Utility Disk (CD-ROM)
• Setup Manual (this manual)
• Cleaning cloth

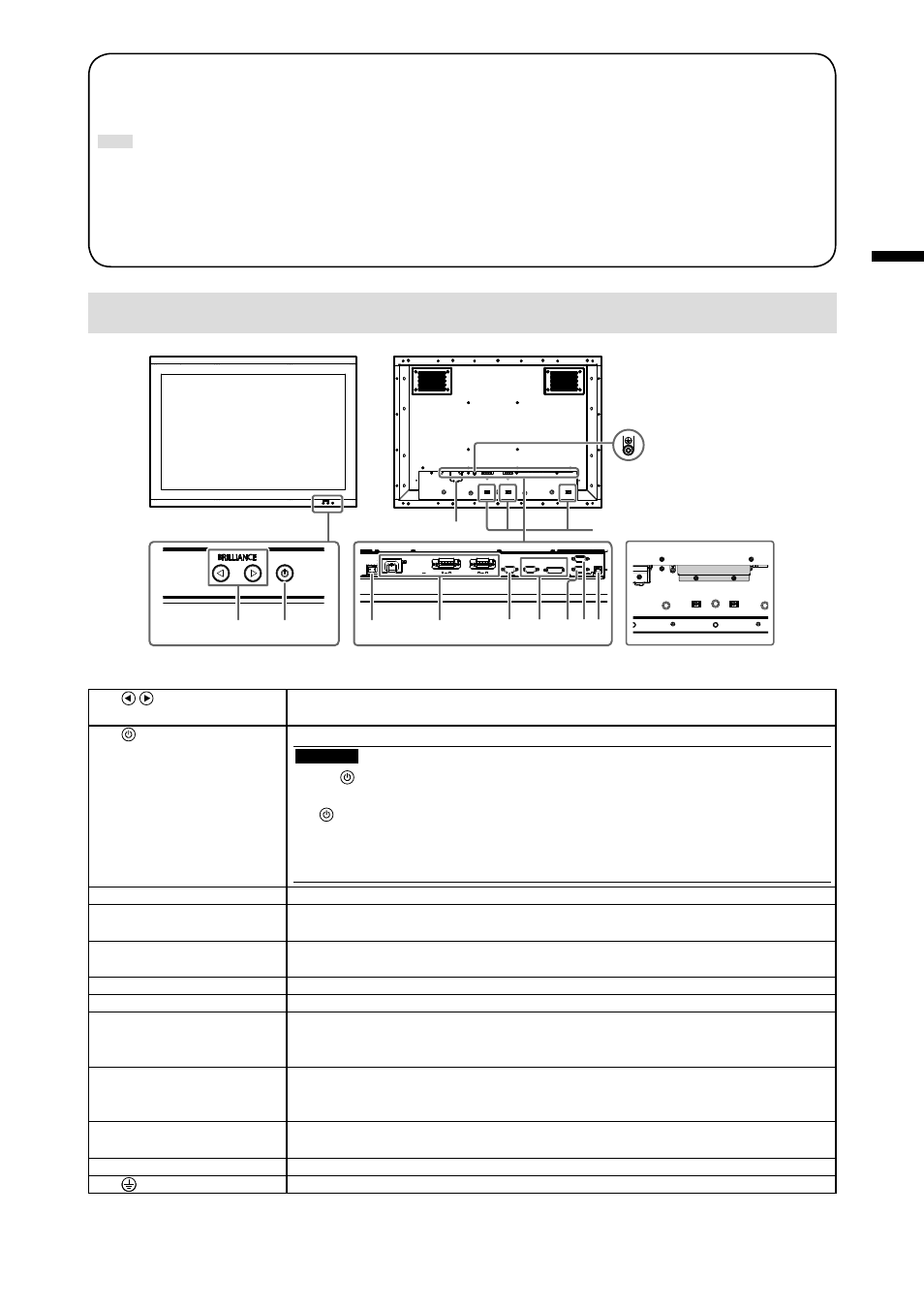

Controls and Functions
8 9
2
3
4
5
7
6
1
10
11
12
1. (BRILLIANCE)
button
*1
Adjusts the brightness (brilliance).
2. button
*1
Turns the power on or off.
Attention
• Press for 5 seconds or more to turn off the power.
(A preliminary message for powering off appears.)
• If is released before 5 seconds have elapsed, the following operation occurs.
- During digital signal display: Shows the monitor information.
- During analog signal display: Performs automatic screen adjustment and then shows the
monitor information.
3. AC main power switch
Turns the AC main power on or off.
4. Power input
Left: AC power connector / Center: AC power terminal block / Right: DC power
terminal block
5. Output signal
connector
D-Sub mini 15-pin connector
6. Input signal connector Left: D-Sub mini 15-pin connector / Right: DVI-D connector
7. RS-232C port
D-Sub 9-pin (female) connector: For monitor control
8. RS-232C port
(for FDU2602WT only)
*2
D-Sub 9-pin (male) connector: For touch panel control
Connects a PC and monitor via a RS-232C cable when this product is used as a
touch panel monitor.
9. USB port
(for FDU2602WT only)
*2
Upstream port: For touch panel control
Connects a PC and monitor via a USB cable when this product is used as a touch
panel monitor.
10. Power plug disconnection
prevention bracket
Fixes the power plug.
11. Cable holder (3)
Fixes cables in place to prevent disconnection.
12. mark
Protective earth terminal
*1 These buttons light up orange when the monitor is turned on.
*2 These ports cannot be used at the same time. When cables are connected to both ports, the USB port is prioritized.
* A terminal block cover is installed
on the AC and DC power terminal
blocks at shipment.
