Part names and functions
English
INTR
ODUCTION
AD
DITIONAL
INFORMA
T
ION
APPENDIX
PRE
P
ARA
T
ION
BA
S
IC
OPERA
T
ION
AD
V
ANCED
OPERA
T
ION
a
Remote control signal transmitter
Transmits infrared signals.
b
MAIN/ZONE2
Switches the zone to be operated by the remote control between
the Main zone and Zone2 (see page 54).
c
TRANSMIT
Lights up when a signal is output from the remote control.
d
SOURCE POWER
Switches an external component on and off.
e
Input selection keys
f
Tuner keys
g
INFO
Changes information on the front panel display, such as input
source and sound field program name (see page 26).
h
Sound selection keys
Selects sound field programs (see page 27).
i
SCENE
Switch between linked sets of input sources and sound field
programs (see page 24).
j
SETUP
Displays the SETUP menu (see page 47).
k
Cursors k / n / l / h/ENTER/RETURN
l
External component operation keys
Operate recording, playback etc. of external components
(see page 55).
m
Numeric keys
Enter numbers.
n
TV control keys
Enable operations of a monitor such as a TV and a projector.
o
CODE SET
Sets remote control codes for external component operations
(see page 55).
p
POWER
Switches this unit on and standby.
q
SLEEP
Switches the sleep timer operations (see page 38).
r
OPTION
Displays the OPTION menu (see page 39).
s
VOLUME +/–
Adjust the volume of this unit (see page 24).
t
DISPLAY
Changes the operation mode of the iPod connected to the
Yamaha iPod universal dock (see page 35).
u
MUTE
Turns the mute function of the sound output on and off
(see page 25).

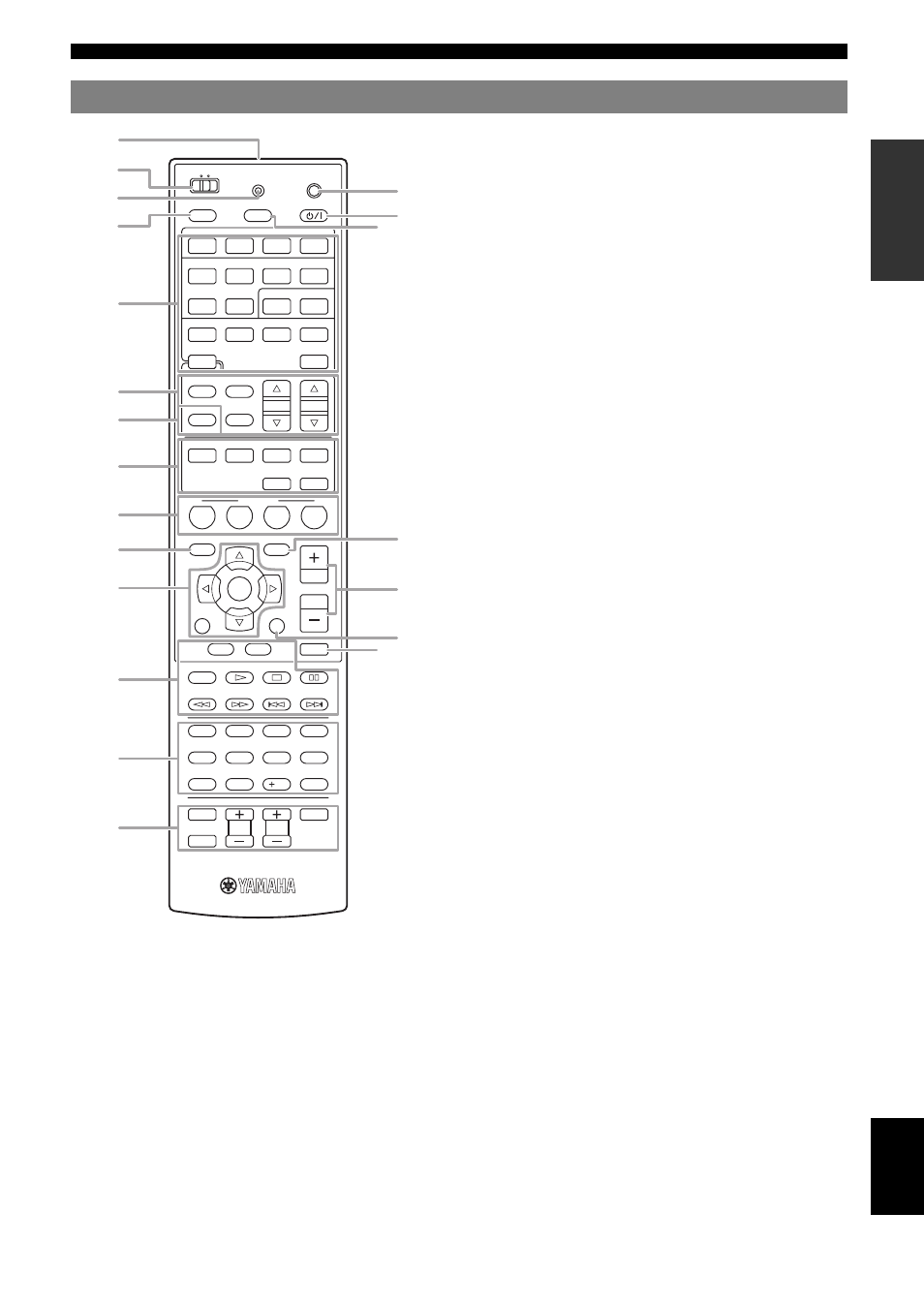

Remote control
HDMI 1-4
Select HDMI inputs 1 through 4.
AV 1-6
Select AV inputs 1 through 6.
AUDIO 1/2
Select AUDIO inputs 1 and 2.
V-AUX
Selects the V-AUX jack on the front panel of this
unit.
MAIN
POWER
1
2
3
4
1
2
5
6
1
2
3
4
7
8
5
6
9
0
10
1
2
3
4
POWER
SOURCE
V-AUX
PHONO
[ A ]
DOCK
MULTI
TUNER
FM
MOVIE
BD
DVD
TOP
MENU
MUSIC
SCENE
TV
CD
OPTION
SETUP
RETURN
REC
ENT
POWER
TV
TV VOL
INPUT
MUTE
TV CH
ENTER
VOLUME
DISPLAY
MUTE
MENU
RADIO
STEREO
ENHANCER SUR. DECODE
PURE DIRECT
STRAIGHT
INFO
MEMORY
AM
PRESET
TUNING
SLEEP
HDMI
AV
AUDIO
ZONE2
TRANSMIT
CODE SET
a
b
c
d
q
p
e
h
i
j
r
s
t
m
n
o
f
g
u
l
k
PHONO
Selects a component such as a turntable that is
connected to the PHONO jack on the rear panel
as an input source.
[A]
To control external components using the
lExternal component operation
keys separately from operations of this unit
(see page 55).
DOCK
Selects a Yamaha iPod universal dock/Bluetooth
wireless audio receiver connected to the DOCK
jack.
TUNER
Selects the FM/AM tuner.
MULTI
Selects a signal input from the MULTI CH
INPUT jack on the rear panel as an input source.
FM
Select the FM band or AM band.
AM
MEMORY
Presets radio stations.
PRESET k / n
Select a preset station.
TUNING k / n
Change tuning frequencies.
Cursors k / n / l / h
Select menu items displayed on the
front panel display or on a video
monitor, or change settings.
ENTER
Confirms a selected item.
RETURN
Returns to the previous screen or
ends the menu display.
