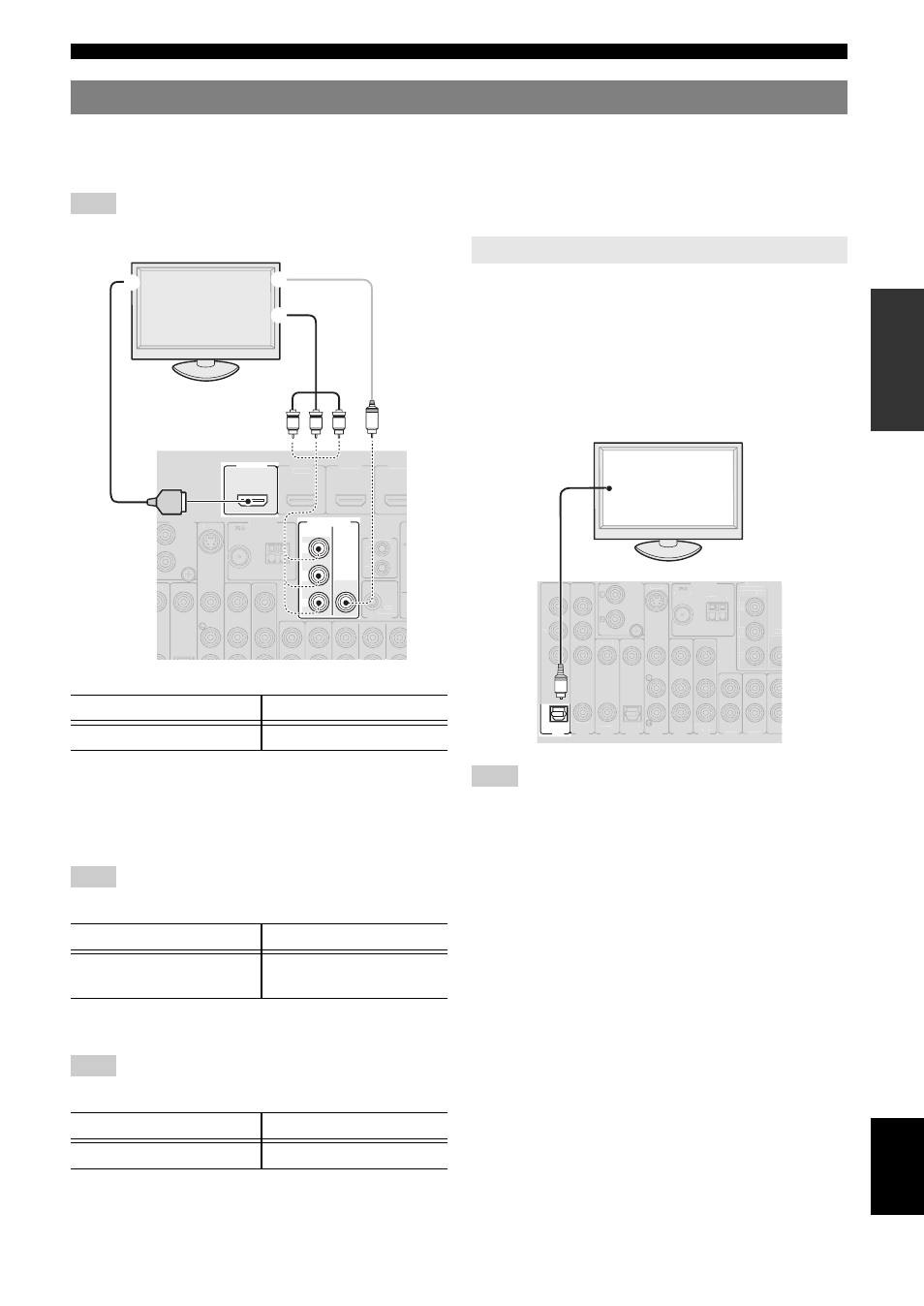

Connect a video monitor such as a TV or projector to an output jack of this unit. You can select one of the following three
types according to the input signal format supported by the video monitor: HDMI OUT, COMPONENT VIDEO and
VIDEO (composite video).
Note
• Make sure that this unit and video monitor are unplugged from the AC wall outlets.
■ To connect an HDMI video monitor
y
• This unit supports the HDMI control function. By connecting a TV that
supports the HDMI control, operations of this unit can be controlled with
the remote control of the TV. For details, see page 38.
■ To connect component video monitor
Note
• Only video signals input from this unit via the COMPONENT VIDEO
jack are output from the COMPONENT VIDEO jack.
■ To connect composite video monitor
Note
• Only video signals input from this unit via the VIDEO jacks are output
from the VIDEO jacks.
To output sound of a TV from this unit, connect an audio
output terminal of the TV to any of the AV 1-6 jacks.
If the TV supports an optical digital output, we
recommend that you use the AV 1. Connecting to the AV 1
allows you to switch an input source to the AV input 1
with a just a single key operation using the SCENE
function (see page 24).
Note
• If the video monitor connected to this unit supports the HDMI control
function, we recommend that you connect its audio output jack to the
OPTICAL jack of the AV1 jacks of this unit. By doing so, this unit
automatically turns on and “TV” of SCENE is automatically selected
when you turn on the video monitor. You can obtain the same result even
if you connect the audio output jacks to the AV2-6, AUDIO1-2 or V-
AUX jacks by assigning those jacks to TV in advance (see page 24).
Connecting a video monitor
Jacks on components Jacks on this unit
a HDMI input HDMI OUT
Jacks on components Jacks on this unit
b Component video output MONITOR OUT
(COMPONENT VIDEO)
Jacks on components Jacks on this unit
c Video input (composite) MONITOR OUT (VIDEO)
P R
P B
Y
MONITOR OUT
HDMI
VIDEO
COMPORNENT
VIDEO
OUT
TRIGGER OUT
12V
0.1A MAX.
ANTENNA PHONO
UNBAL.
FM
GND
GND AM
IN
OUT
REMOTE
S.VIDEO
DEO
HDMI 1 HDMI 2 HDMI 3
(BD/DVD)
V
c
b
P B Y P R
HDMI
a
TV or projector Outputting sound of a TV from this unit
OPTICAL
( TV )
AV 1
ANTENNA PHONO
UNBAL.
FM
GND
GND AM
COMPONENT
VIDEO
P R
P B
Y
MONITOR OUT
P R
P B
Y
AV 2
COAXIAL
AV 3
(CD)
COAXIAL OPTICAL
AV 4 AV 5 AV 6
AV
OUT AUDIO1
S.VIDEO
AUDIO2
FRON
VIDEO
VIDE
COMPORNENT
VIDEO
O
Digital output
(optical)
TV or projector
