A MAIN ZONE ON/OFF
Turns this unit on and off (see page 20).
B PHONES jack
For connecting headphones (see page 26).
C ZONE2 ON/OFF
Switches Zone2 between on and off (see page 54).
D HDMI THROUGH
During standby, lights up under the following conditions:
• the HDMI control function is enabled (see page 50).
• an HDMI signal input to this unit passes through this unit and
output (see page 50).
E ZONE2 CONTROL
Enables operation of a receiver set in Zone2, including input
source switching, volume control and tuner operation, with the
main amplifier or remote control after this key is pressed.
F INFO
Changes information on the front panel display, such as input
source and sound field program name (see page 26).
G MEMORY
Registers FM/AM stations as preset stations (see page 32).
H PRESET l / h
Selects an FM/AM preset station (see page 32).
I FM/AM
Changes the tuner bands between FM and AM.
J TUNING l / h
Changes FM/AM frequencies.
K Front panel display
Displays information on this unit (see page 6).
L VOLUME control
Controls the volume of this unit (see page 24).
M SCENE
Switches between linked sets of input sources and sound field
programs (see page 24).
N TONE CONTROL
Adjusts high-frequency/low-frequency output of speakers/
headphones (see page 24).
O PROGRAM selector
Changes sound field programs (see page 27).
P STRAIGHT
Toggles between the selected sound field program and straight
decoding mode (see page 30).
Q PURE DIRECT
Changes mode to Pure Direct mode (see page 25). This key
lights up when Pure Direct mode is on.
R INPUT selector
Selects an input source (see page 24).
S OPTIMIZER MIC jack
For connecting the supplied optimizer microphone and adjusting
output characteristics of speakers (see page 21).
T VIDEO (VIDEO AUX) jack
For connecting the video output cable of a camcorder or game
console (see page 19).
U AUDIO L/R (VIDEO AUX) jack
For connecting the audio output cable of a camcorder or game
console (see page 19).
V PORTABLE (VIDEO AUX) jack
For connecting the audio output cable of a portable music player
(see page 19).

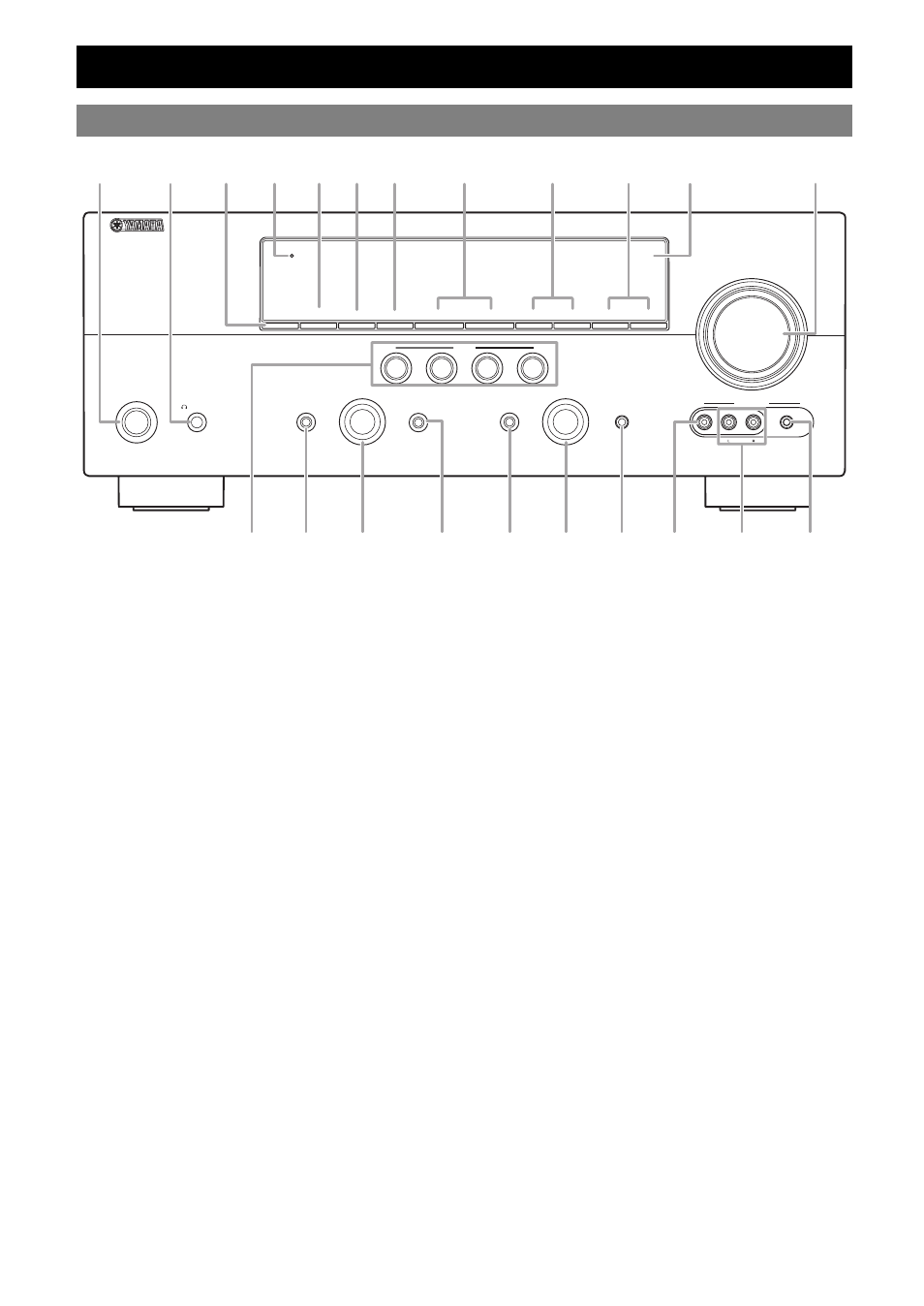

Part names and functions
