Part names and functions
a
HDMI indicator
Lights up during normal communication when HDMI is
selected as an input source.
b
CINEMA DSP indicator
Lights up when a sound field program that uses CINEMA DSP
is selected.
c
CINEMA DSP 3D indicator
Lights up when CINEMA DSP 3D is activated.
d
Tuner indicator
Lights up during receiving radio broadcast signals from an FM/
AM station (see page 31).
e
ZONE2 indicator
Lights up when Zone2 is turned on (see page 53).
f
SLEEP indicator
Lights up when the sleep timer is activated (see page 38).
g
MUTE indicator
Flashes when audio is muted.
h
VOLUME indicator
Displays volume levels.
i
Cursor indicators
Light up when corresponding cursors on the remote control are
available for operations.
j
Multi information display
Displays menu items and settings for the current operation.
k
Speaker indicators
Indicate speaker terminals from which signals are currently
output.

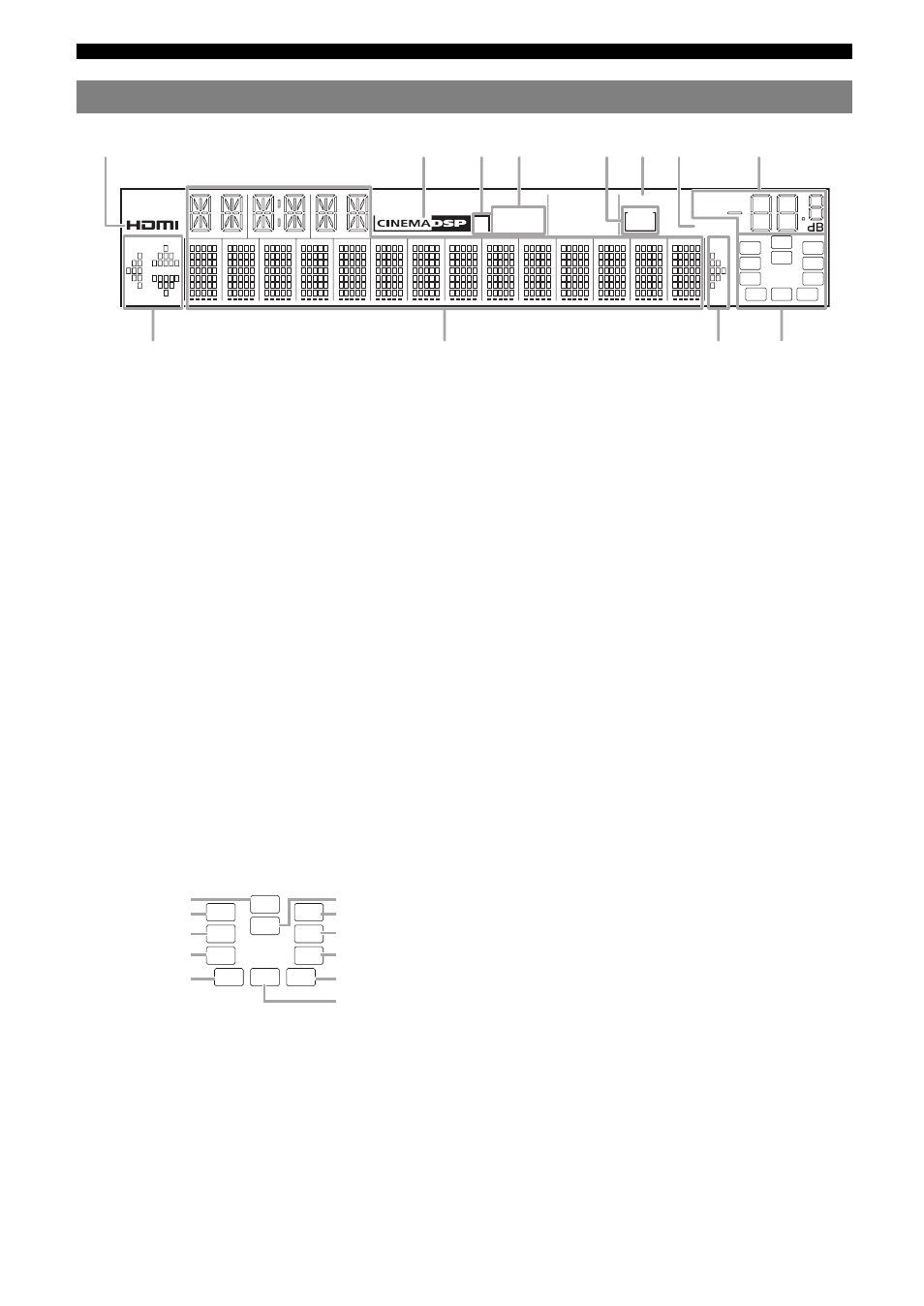

Front panel display
STEREO
SLEEP
VOL.
TUNED
PL
PR
SW
C
L
R
SL
SR
SBL
SB
SBR
MUTE
3
ZONE
2
a
b
c
d
f
e
h
g
i
j
k
i
SW
C
L
R
SL
SR
SBL
SB
SBR
PL
PR
Subwoofer
Front L
Surround L
Surround back L
Center
Front R
Surround R
Surround back R
Surround back
Presence L
Presence R
