5
En
Part names and functions
English
INTR
ODUCTION
AD
DITIONAL
INFORMA
T
ION
APPENDIX
PRE
P
ARA
T
ION
BA
S
IC
OPERA
T
ION
AD
V
ANCED
OPERA
T
ION
a DOCK jack
For connecting a Yamaha iPod universal dock (YDS-11, sold
separately) or a Bluetooth wireless audio receiver (YBA-10,
sold separately) (see page 19).
b PHONO jacks
For connecting a turntable (see page 17).
c ANTENNA jacks
For connecting supplied FM and AM antennas (see page 20).
d HDMI OUT/HDMI 1-4 jacks
For connecting an HDMI-compatible video monitor or external
components for HDMI inputs 1-4 (see page 16).
e REMOTE IN/OUT jacks
For connecting an external component that supports the remote
control function (see page 19).
f TRIGGER OUT jack
For connecting an external terminal with a trigger input terminal
to operate it linked with operation of this unit. For example,
when an electric screen that supports a trigger input is
connected, it opens and closes linked with operation of an input
source selected in this unit.
g SPEAKERS terminals
For connecting front right and left, center, surround and
surround back speakers (see page 11). Connect the presence
speakers (see page 12) or the speakers for Zone2 (see page 53)
to the EXTRA SP jacks.
h Power Cable
Connect this cable to an AC wall outlet (see page 20).
i AV 1-6 jacks
For connecting external components for audio/video inputs 1-6
(see page 16).
j AV OUT jacks
Outputs audio/video signals from a selected analog input source
to an external component (see page 17).
k AUDIO 1/2 jacks
For connecting external components for audio inputs 1-2
(see page 17).
l MONITOR OUT terminals
Outputs video signals from this unit to a video monitor, such as
a TV (see page 15).
m MULTI CH INPUT terminals
For connecting a player that supports a multi-channel output
(see page 18).
n AUDIO OUT jacks
Outputs audio signals from a selected analog input source to an
external component (see page 17).
o ZONE2 OUT jacks
Outputs sound of this unit to an external amplifier set in a
different zone.
p PRE OUT terminals
For connecting a subwoofer with built-in amplifier (see page 11)
or an external power amplifier (see page 18).

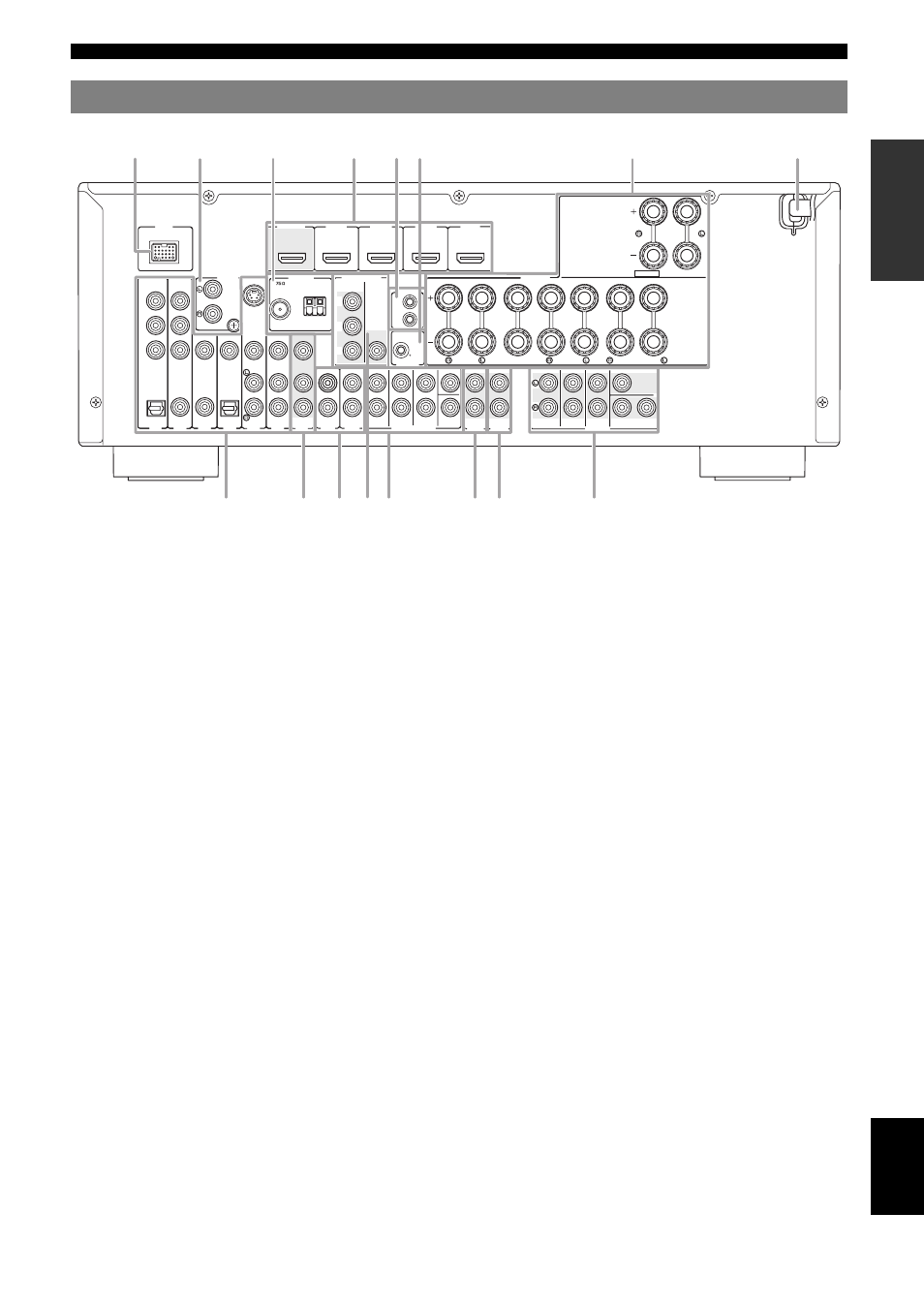

Rear panel
ZONE2
OUT
TRIGGER OUT
12V
0.1A MAX.
ANTENNA PHONO
UNBAL.
FM
GND
GND AM
COMPONENT
VIDEO
P R
P B
Y
IN
OUT
REMOTE
EXTRA SP ZONE2/PRESENCE
MONITOR OUT SPEAKERS
ZONE2
P R
P B
Y
OPTICAL
( TV )
AV 1 AV 2
COAXIAL
AV 3
(CD)
COAXIAL OPTICAL
AV 4 AV 5 AV 6
AV
OUT AUDIO1
S.VIDEO
AUDIO2
FRONT SURROUND SUR.BACK SUBWOOFER
MULTI CH INPUT AUDIO
OUT
FRONT SURROUND SUR. BACK SUBWOOFER
PRE OUT
CENTER
VIDEO
HDMI HDMI 1 HDMI 2 HDMI 3 HDMI 4
(BD/DVD)
VIDEO
COMPORNENT
VIDEO
FRONT CENTER SURROUND SURROUND BACK/
BI-AMP
SINGLE
1 2
CENTER
OUT DOCK
SINGLE
a h
i j m k n o p
d b c g e f
l
