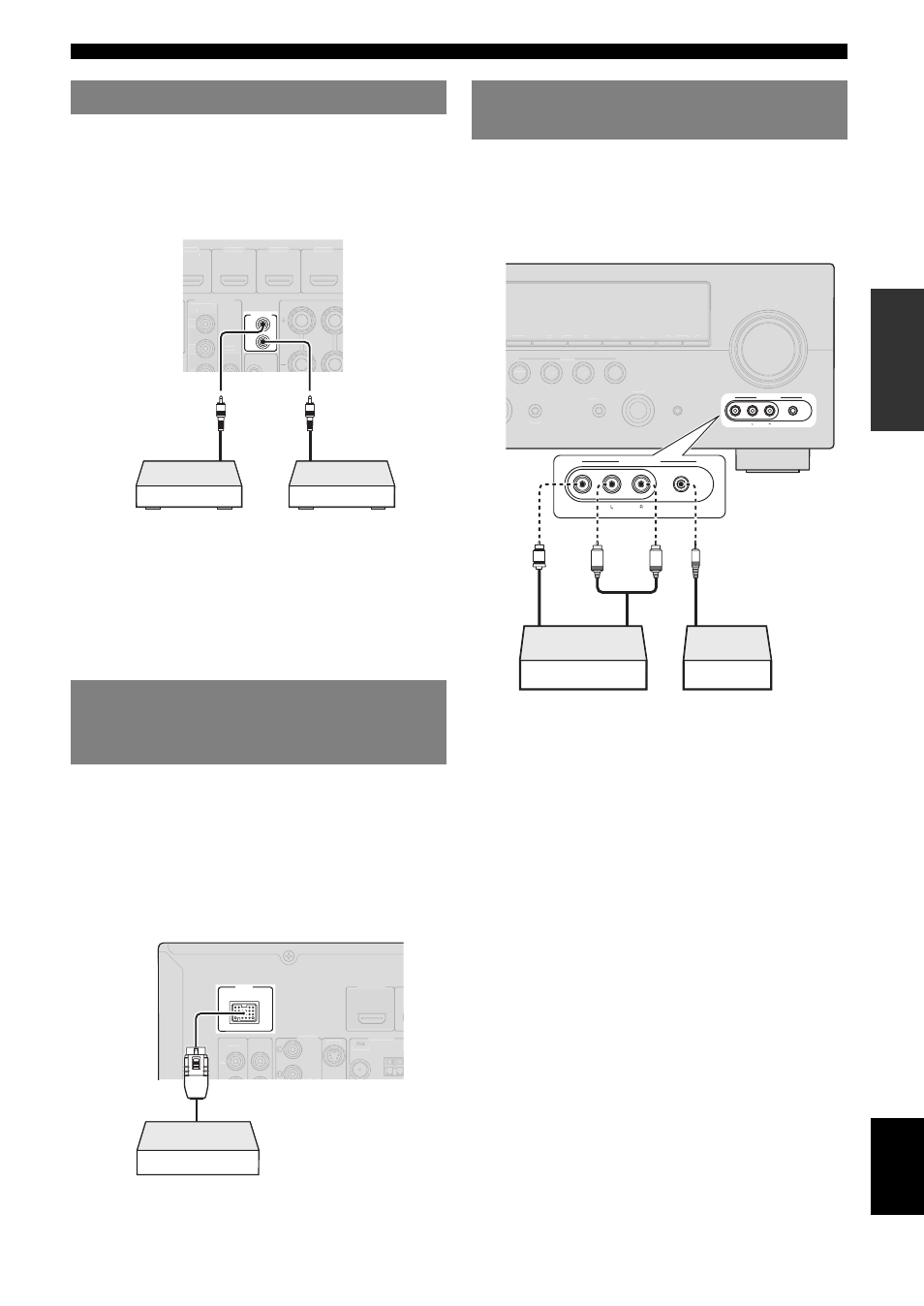

When the components are the Yamaha products and have
the capability of the transmission of the remote control
signals, connect the REMOTE IN and REMOTE OUT
jacks to the remote control input and output jack with the
monaural analog mini cable as follows.
y
• If your Yamaha component supports the SCENE link playback function,
remote connection automatically starts playback when you press
MSCENE (or iSCENE) to select a SCENE.
• If the component connected to the REMOTE OUT jack is not a Yamaha
product, set “SCENE IR” in the ADVANCED SETUP menu to “OFF”
(see page 58).
This unit has the DOCK jack, to which you can connect a
Yamaha iPod universal dock (YDS-11, sold separately) or
a Bluetooth wireless audio receiver (YBA-10, sold
separately). You can play an iPod or a Bluetooth
component with this unit by connecting it to the DOCK
jack.
Use a dedicated cable for connection between the dock/
receiver and this unit.
The V-AUX terminals on the front panel are useful for
connecting a camcorder, a game console or a portable
music player to this unit. Be sure to turn down the volume
of this unit and other components before making
connections.
y
• To connect a component to the PORTABLE jack, use a 3.5 mm stereo
mini plug cable.
• When external components are connected both the PORTABLE jack and
AUDIO jack, sound input from the PORTABLE jack is output.
Using REMOTE IN/OUT jacks
Connecting a Yamaha iPod universal
dock or Bluetooth™ wireless audio
receiver
IN
OUT
REMOTE
P R
P B
Y
MONITOR OUT
HDMI 1 HDMI 2 HDMI 3 HDMI 4
BD/DVD)
VIDEO
COMPORNENT
VIDEO
Remote
control out
Remote
control in
Infrared signal
receiver or Yamaha
component
Yamaha component
(CD or DVD player, etc.)
DOCK
ANTENNA PHONO
UNBAL.
FM
GND
GND AM
COMPONENT
VIDEO
P R
S.VIDEO
HDMI HDMI OUT OUT
Yamaha iPod universal
dock/Bluetooth wireless
audio receiver
Connecting a camcorder or portable
audio player
VIDEO AUDIO PORTABLE
VIDEO AUX
TUNING
STRAIGHT
M INPUT
PURE DIRECT OPTIMIZER MIC
MEMORY
VOLUME
EFFECT
PRESET l h l h
BD/DVD TV CD RADIO
SCENE
FM AM
VIDEO AUDIO PORTABLE
VIDEO AUX
V L R
Game console/Camcorder Music player
A
n
alog audio
o
u
tput
A
n
alog audio
o
u
tput
V
ideo output
