16
En

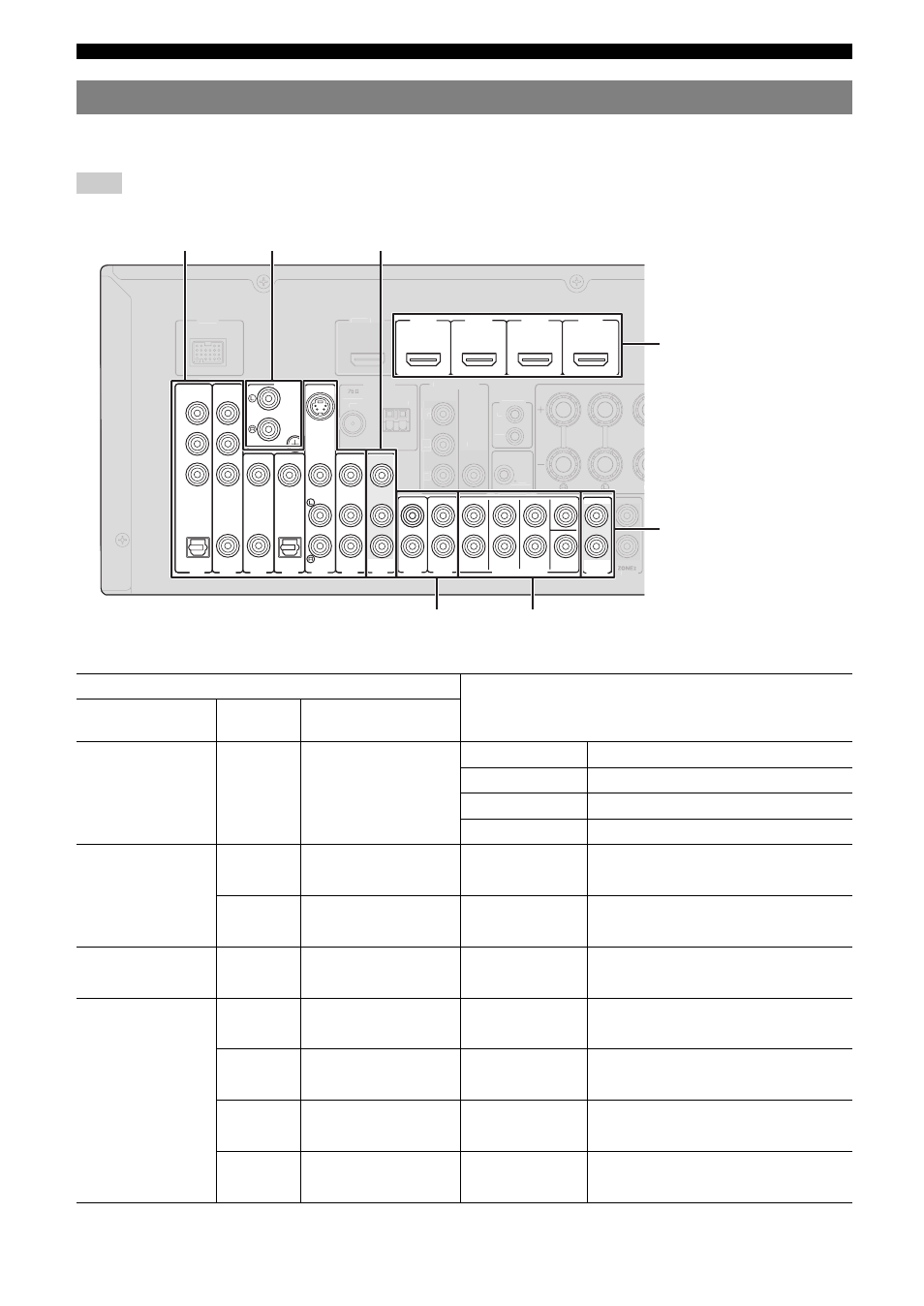

Connections
This unit has input and output jacks for respective input and output sources. You can reproduce sound and movies from
input sources selected with the front panel display or remote control.
Note
• Make sure that this unit and other components are unplugged from the AC wall outlets.
■ Audio and video player/Set-top box
Connecting other components
Output jacks on the connected external component
Input sources/jacks of this unit
External
components
Signals Output jacks
External component
with HDMI output
Audio/Video HDMI output HDMI1 (BD/DVD) HDMI 1
HDMI2 HDMI 2
HDMI3 HDMI 3
HDMI4 HDMI 4
External component
with component video
output
Audio Optical digital output AV1 (TV) OPTICAL
Video Component video output COMPONENT VIDEO
Audio Coaxial digital output AV2 COAXIAL
Video Component video output COMPONENT VIDEO
External component
with S-video output
Audio Analog audio output AV5 AUDIO
Video S-video output S VIDEO
External component
with composite video
output
Audio Coaxial digital output AV3 (CD) COAXIAL
Video Composite video output VIDEO
Audio Optical digital output AV4 OPTICAL
Video Composite video output VIDEO
Audio Analog audio output AV5 AUDIO
Video Composite video output VIDEO
Audio Analog audio output AV6 AUDIO
Video Composite video output VIDEO
TRIGGER OUT
PHONO
GND
COMPONENT
VIDEO
P R
P B
Y
OPTICAL
( TV )
AV 1 AV 2
COAXIAL
AV 3
(CD)
COAXIAL OPTICAL
AV 4 AV 5 AV 6
AV
OUT AUDIO1
S.VIDEO
AUDIO2
FRONT SURROUND SUR.BACK SUBWOOFER
MULTI CH INPUT
AUDIO
OUT
VIDEO
HDMI 1 HDMI 2 HDMI 3 HDMI 4
(BD/DVD)
CENTER
OUT
TRIGGER OUT
12V
0.1A MAX.
ANTENNA
UNBAL.
FM GND AM
P R
P B
Y
IN
OUT
REMOTE
MONITOR OUT
ZONE2 ZONE2
HDMI HDMI
VIDEO
COMPORNENT
VIDEO
FRONT CE
OUT OUT DOCK
Audio/video input
(AV 1-6) Audio/video output (AV OUT)
Audio input (AUDIO 1-2)
HDMI input
(HDMI 1-4)
Audio output
(AUDIO OUT)
Multi channel audio input (MULTI CH)
Phono input
(PHONO)
