This unit allows you to configure a multi-zone audio system. The Zone2 feature allows you to set this unit to reproduce
separate input sources in the main zone and the second zone (Zone2). You can control this unit from the second zone
using the supplied remote control.
You need the following additional equipment to use the
multi-zone functions of this unit:
• An infrared signal receiver in the second zone.
• An infrared signal emitter in the main zone. This emitter
transmits infrared signals from the remote control to a
CD player or a DVD player, etc. in the main zone via
the infrared signal receiver in the second zone.
• An amplifier and speakers in the second zone.
y
• Since there are many possible ways to connect and use this unit in a
multi-zone configuration, we recommend that you consult with your
nearest authorized Yamaha dealer or service center about the Zone2
connections that best meet your requirements.
• Some Yamaha models can be directly connected to the REMOTE jacks
of this unit. These models may not require an infrared signal emitter. Up
to 6 Yamaha components can be connected as shown below.
You can connect the amplifier/receiver in the second zone
and other components to this unit as follows.
Note
• To avoid unexpected noise, DO NOT USE the Zone2 feature with CDs
encoded in DTS.
Connect the speakers in the second zone to the EXTRA
SP jacks and then set the “Extra SP Assign” to “Zone2”
(see page 47).
y
• You can use the speakers connected to the EXTRA SP jacks as the front
speaker system of another zone. Set “Extra SP Assign” to “Zone2”
(see page 47).
• When you use the internal amplifiers for the Zone2 speakers, you can
adjust the volume level and set the initial volume and maximum volume
of the Zone2 speakers (see page 52).
Using multi-zone configuration
Only analog signal can be sent to Zone2. If you want to output sound from Zone2, connect an external component to
AV5-6 or AUDIO1-2 by analog connection. For example, if you want to output sound from an HDMI DVD player in
Zone2, you must connect the component to this unit by both HDMI and analog connections.

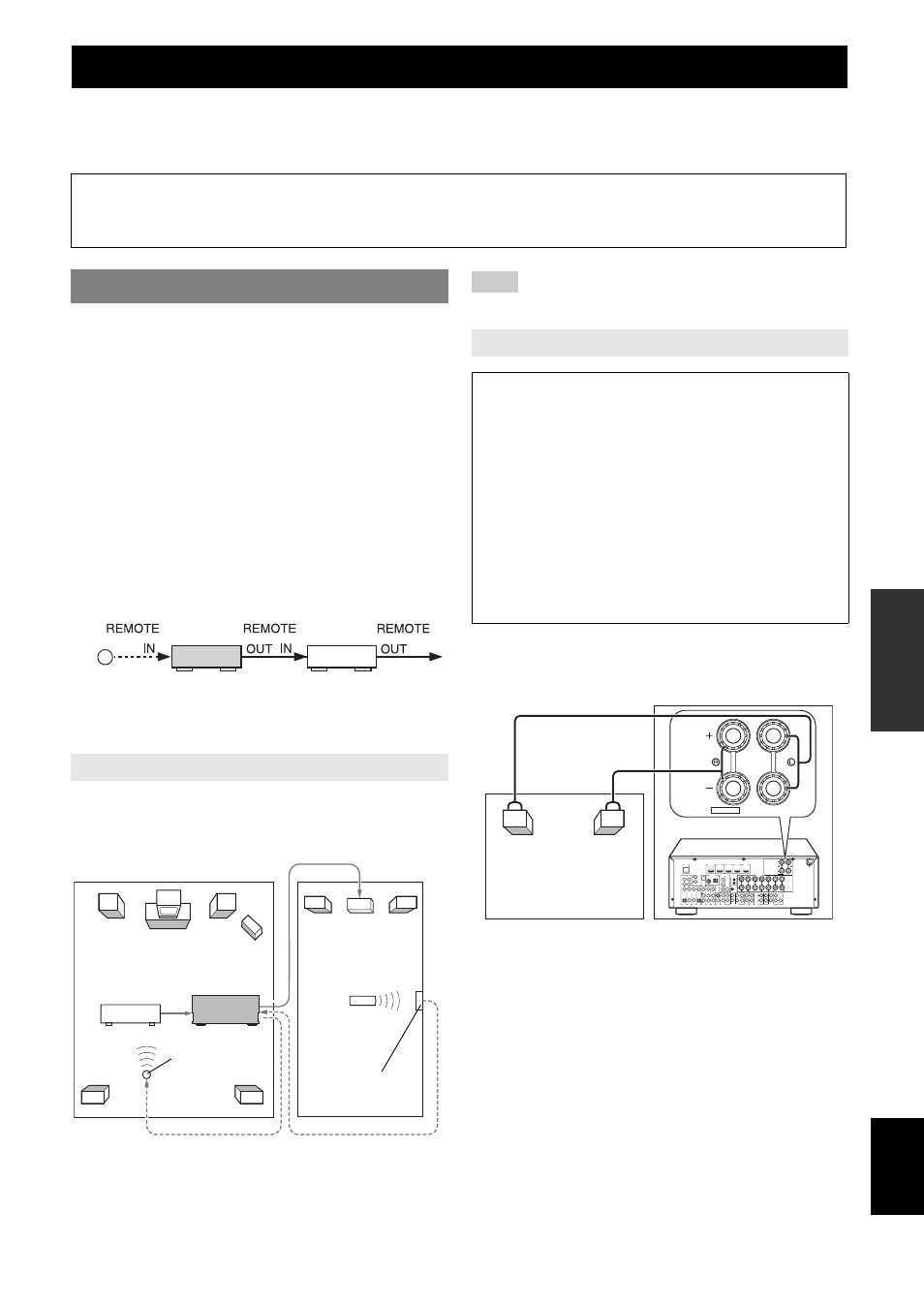

Connecting Zone2
Using the external amplifier
This unit Yamaha
component
Infrared signal
receiver
To the REMOTE IN jack
Infrared signal
emitter
DVD player (etc.)
Amplifier
Remote control
Second zone
(Zone2)
Main zone
This unit
From the ZONE2 OUT jacks
Infrared signal
receiver
From the REMOTE OUT jack
Using the internal amplifier of this unit
Important safety notice
The EXTRA SP jacks of this unit should not be
connected to a Passive Loudspeaker Selector Box or
more than one loudspeaker per channel.
Connection to a Passive Loudspeaker Selector Box or
multiple speakers per channel could create an
abnormally low impedance load resulting in amplifier
damage. See this owner’s manual for correct usage.
Compliance with minimum speaker impedance
information for all channels must be maintained at all
times. This information is found on the back panel of
this unit.
ZONE2 OUT
TRIGGER OUT 12V 0.1A MAX.
ANTENNA MONITOR OUT
UNBAL.
FM GND AM COMPONENT VIDEO PR
PB
Y
IN OUT
REMOTE
EXTRA SP ZONE2/PRESENCE SPEAKERS
ZONE2
PR
PB
Y
OPTICAL
( TV )
AV 1 AV 2 COAXIAL AV 3 (CD) COAXIAL OPTICAL AV 4 AV 5 AV 6 AV OUT AUDIO1 AUDIO2 FRONT SURROUND SUR.BACK SUBWOOFER MULTI CH INPUT AUDIO OUT FRONT SURROUND SUR. BACK SUBWOOFER PRE OUT
CENTER SINGLE
VIDEO
HDMI HDMI 1 HDMI 2 HDMI 3 HDMI 4 (BD/DVD)
VIDEO
FRONT CENTER SURROUND SURROUND BACK/ BI-AMP
SINGLE
1 2
CENTER
OUT DOCK
COMPONENT VIDEO PHONO
GND
EXTRA SP ZONE2/PRESENCE
Second zone
(Zone2)
This unit
Main zone
