20
En
Connections
An indoor FM antenna and an AM loop antenna are
supplied with this unit. Connect these antennas properly to
the respective jacks.
y
• The supplied antennas are normally sensitive enough to obtain good
reception.
• Position the AM loop antenna away from this unit.
• If you cannot get good reception, we recommend that you use an outdoor
antenna. For more details, consult the nearest authorized Yamaha dealer
or service center.
• Always use the AM loop antenna even when the outdoor antenna is
connected.
Assembling the AM loop antenna
Connecting the AM loop antenna
The wires of the AM loop antenna have no polarity. You
can connect either wire to the AM terminal and the other
to the GND terminal.
After all connections are complete, plug the AC power
cable of this unit into an AC wall outlet.
1
Press AMAIN ZONE ON/OFF (or
pPOWER) to turn on this unit.
2
Press AMAIN ZONE ON/OFF (or
pPOWER) again to turn off this unit
(standby).
y
• This unit needs a few seconds until ready to play back.
• You can also turn on this unit by pressing MSCENE (or iSCENE).
• This unit consumes a small amount of electricity even during standby.
We recommend disconnecting the power cable from the AC wall outlet.

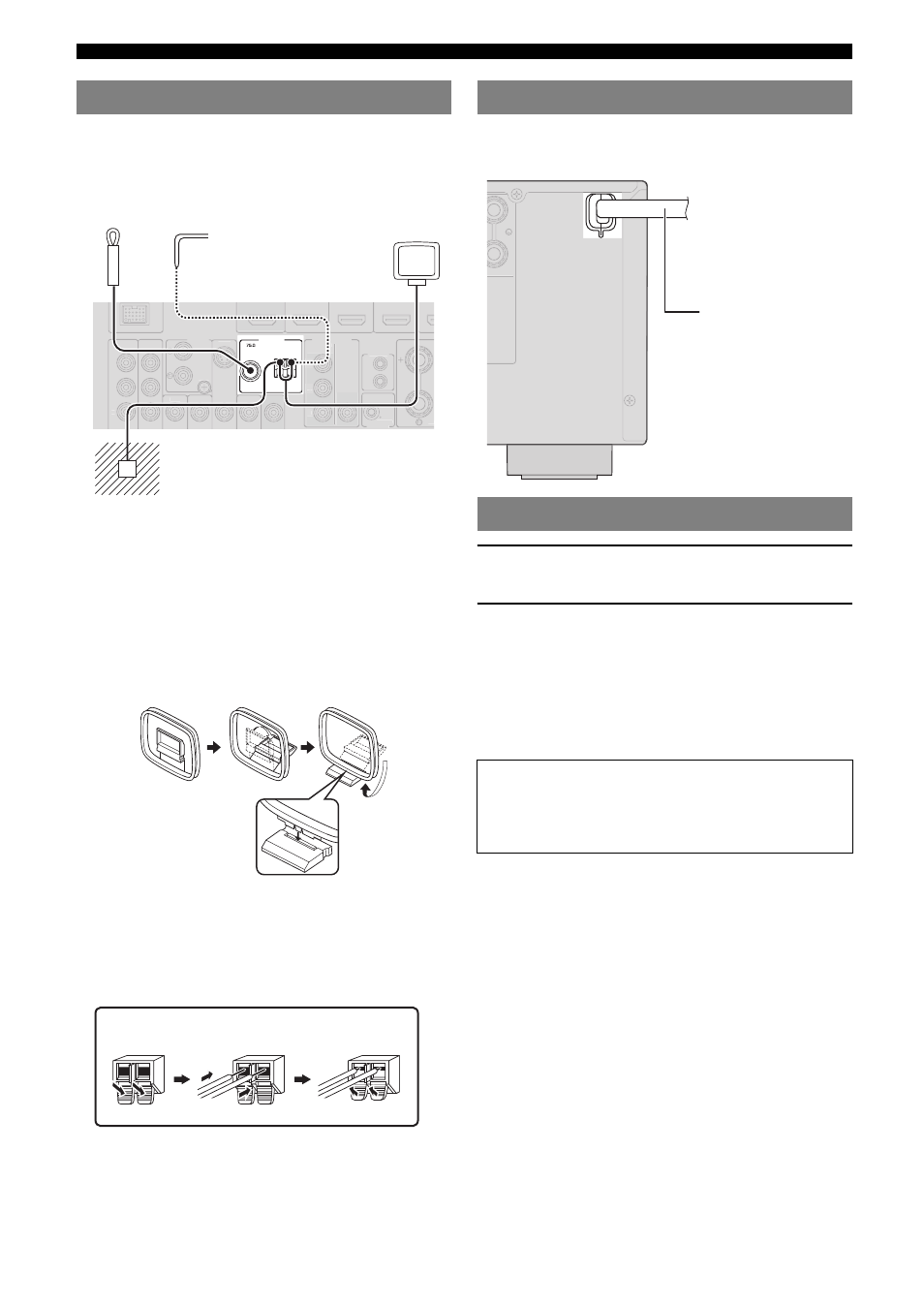

Connecting the FM and AM antennas
ANTENNA
UNBAL.
FM GND AM
TRIGGER OUT
12V
0.1A MAX.
PHONO
GND
COMPONENT
VIDEO
P R
P B
Y
IN
OUT
REMOTE
MONITOR OUT
P R
P B
Y
S.VIDEO
VIDEO
VIDEO
COMPORNENT
VIDEO
FRO
Outdoor AM antenna
Connect a 5 to 10 m vinyl-
covered wire, and extend
it outdoors (use the AM
loop antenna together
with this antenna).
Ground (GND terminal)
The GND terminal is not for earth grounding.
To reduce noises, connect a ground bar or a
vinyl-covered wire with a copper plate at its tip,
and place it in the moist ground.
Indoor FM antenna AM loop
antenna
Press and hold Release Insert
Connecting the power cable
Turning this unit on and off
Caution
Do not unplug this unit while it is turned on. Doing so
may damage this unit or cause the settings of this unit
to be saved incorrectly.
/PRESENCE
To the AC wall outlet
Power cable
