Connections
You can connect presence speakers (PL/PR) that output
front effect sounds to this unit. With CINEMA DSP sound
field programs (see page 27) and their CINEMA DSP 3D
functions, a sound with a richer and more spacial presence
can be created. You can adjust the vertical position of
center sound such as a dialog (see page 47).
To use the presence speakers, connect them to the EXTRA
SP jacks and set “Extra SP Assign” in “Speaker Setup” in
the SETUP menu to “Presence” (see page 47).
y
• Although you can connect both surround back speakers and presence
speakers to this unit, you cannot output sounds from those speakers at the
same time. This unit automatically selects speakers to output sounds
according to the selected input source and sound field program.
• You can connect Zone2 speakers with a multi-zone function to the
EXTRA SP jacks. For details, see page 53.

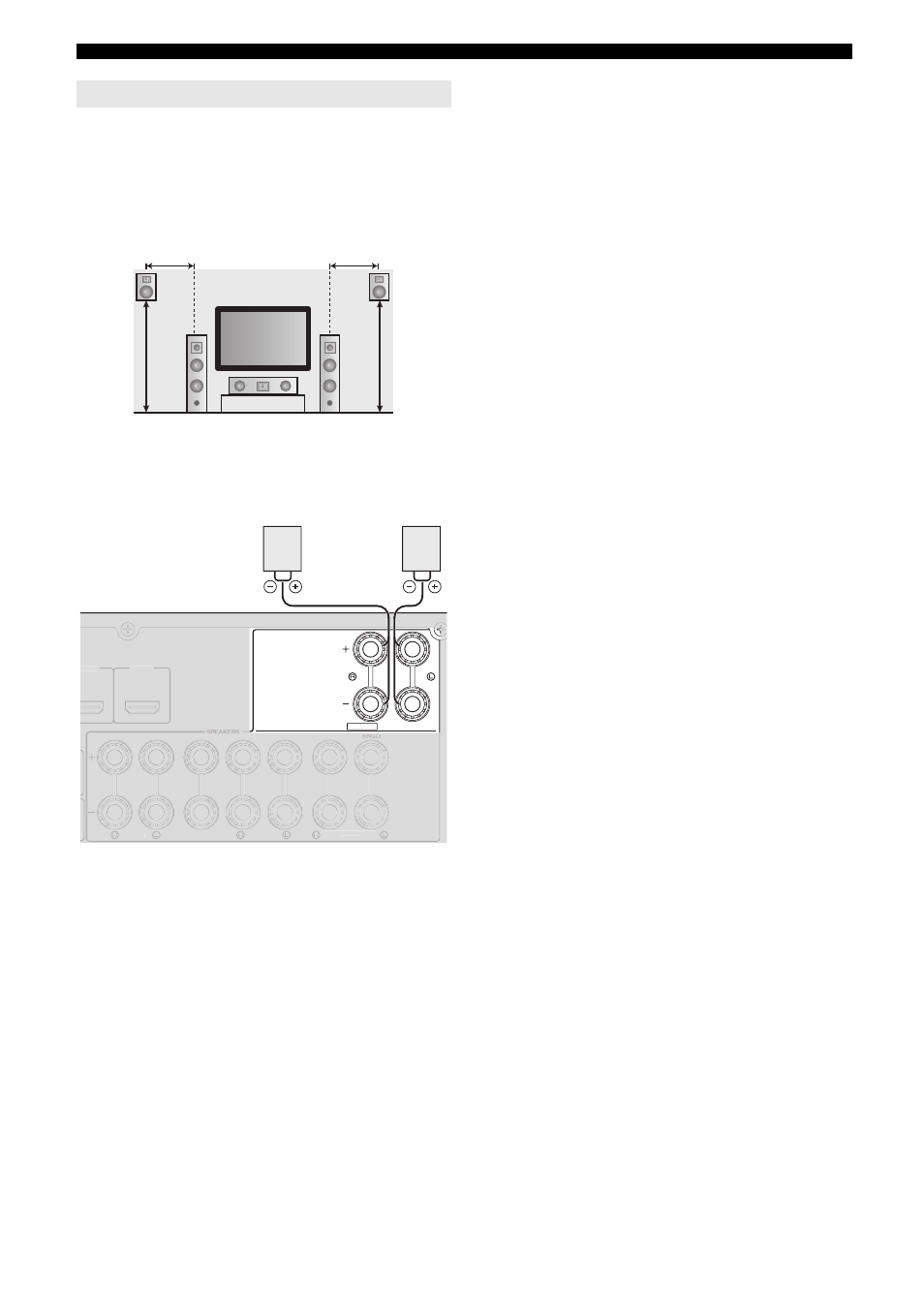

Presence speakers
FR
PR PL
C
FL
0.5 to 1 m 0.5 to 1 m
1.8 m 1.8 m
EXTRA SP ZONE2/PRESENCE
X.
DMI 3 HDMI 4
FRONT CENTER SURROUND SURROUND BACK/
BI-AMP
PR PL
Presence
speaker L
Presence
speaker R
