Страница 74: Grease oil levels every 50 hours
Любые вмешательства
в машину должны
выполняться
квалифицированным
специалистом,
ознакомленным
с Руководством
пользователя. При мойке
и обслуживании следует
носить перчатки и
защитные очки. Мойка
должна выполняться на
площадке, специально
предусмотренной для
мойки и имеющей систему
рекуперации воды.
Изношенные детали
должны передаваться
продавцу машины для их
повторного использования.
Work on the spreader must be
performed by a person who
has read and is familiar with
the user manual.
Safety gloves and protective
eyewear must be worn when
cleaning or carrying out
maintenance work.
The machine should be cleaned
in a specially designated area
where the used water can be
recovered.
Worn parts must be taken to
your stockist for recycling.
72
72
Maintenance / ОБСЛУЖИВАНИЕ
A

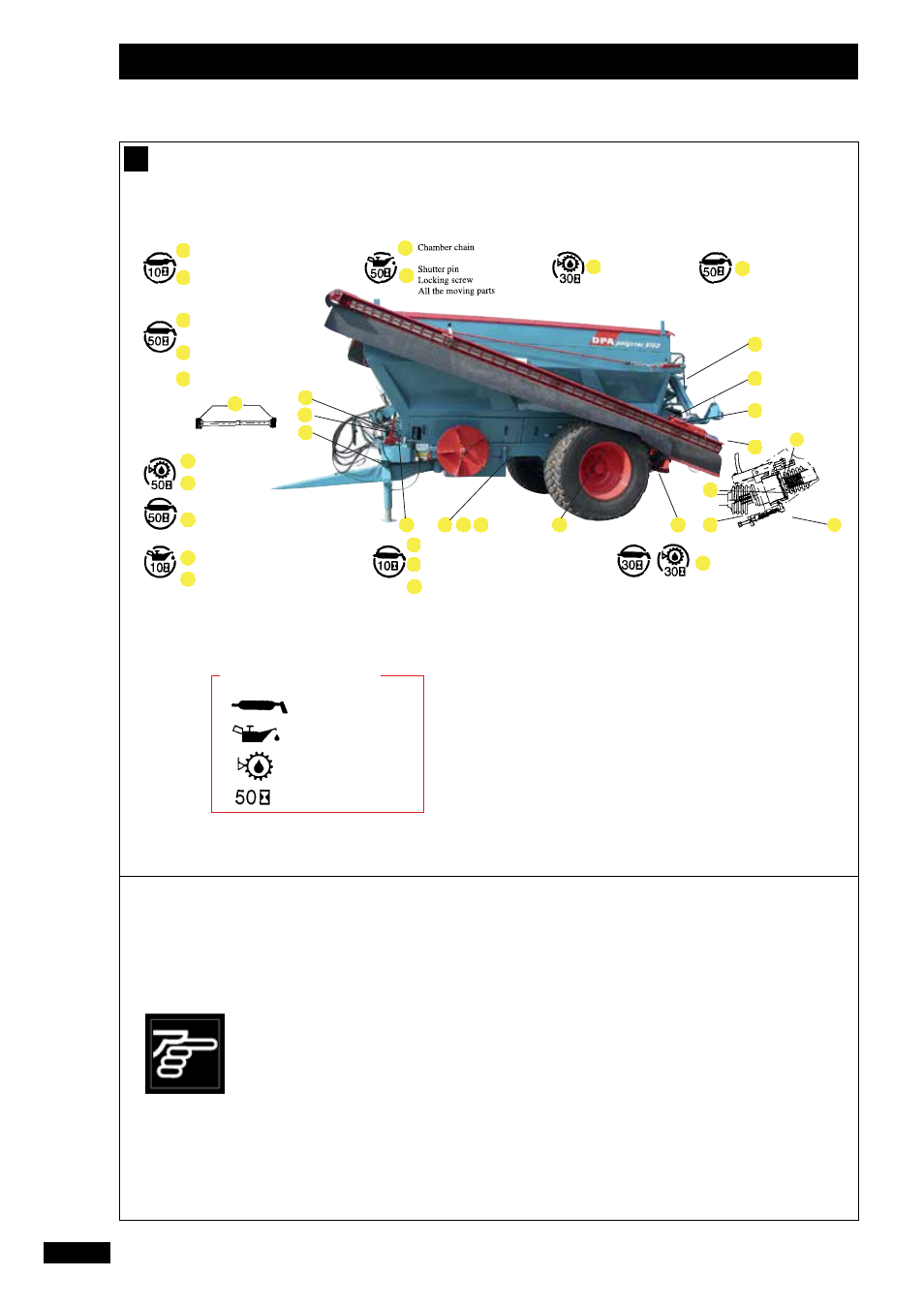

Greasing diagram TYPE
Transverse cross brace TM
Drawbar hub
Drawbar pin bearing
Takeup bearings
Threaded tension rod
Transverse bearings under the machine
Splined shaft
Leaf spring fasteners
Pump multiplier
DPA Reducer
Chamber chain
DPA Pinion
Articulated support
Holder bush axle cam
Braking rod articulations
Fork clevis for engagement
Transverse cross brace dial under the machine
DPA Transverse cross brace and sliding tubes
Slider
Spreading system
Flange bearings
Splined shaft
Reducer
3
4
2
6
7
8
9
5
10
11
12
13
14
15
16
17
10
1
Symbols signification
Grease
Oil
Levels
Every 50 hours
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
8
