PROCESS VARS
GAS NAME XXXXX
GAS VALUE X.XX
HIGH ALARM Y/N
LOW ALARM Y/N
ANALOG INPUT X.XX MA
URV X.XX
LRV X.XX
FAULT Y/N
DISPLAY SETUP
MODE SELECT
GENERAL OPTIONS
INPUT LOOP CAL
CONTRAST CONTRL
BACKLIGHT CTRL
HISTORY
DISPLAY HISTORY
EVENT LOG
DISPLAY INFO
RTC
SERIAL NUMBER
XXXXX
I/O BOARD ID XXX
MFG DATE DD/MM/YYYY
F/W REV XXXXX
UNIVERSAL REV XXXXX
FIELD DEV REV XXXXX
RUNNING HOURS XXXXX
TEMPERATURE XX.XX C
HEATER CTRL AUTO/ON/OFF
BACKLIGHT CTRL AUTO/ON/OFF
INPUT VOLTAGE XX.XX
FAULT
EE FAULT ON/OFF
ADC FAULT ON/OFF
24V FAULT ON/OFF
FLASH FAULT ON/OFF
RAM FAULT ON/OFF
WDT FAULT ON/OFF
12V FAULT ON/OFF
5V FAULT ON/OFF
3V FAULT ON/OFF
INPUT LOOP FAULT ON/OFF
EVENT LOG
EVENT XXXXX
DATE DD/MMM/YYYY
TIME HH:MM:SS
RTC
DISPLAYED Y/N
SECONDS XX
MINUTES XX
HOURS XX
DAY XX
MONTH XX
YEAR XX
GENERAL OPTIONS
TAG XXXXX
DESCRIPTOR XXXXX
MESSAGE XXXX
FINAL ASSY NUM XXXX
MODE SELECT
HART DEVICE
PIR9400
C706X
505
NTMOS
CGS
GENERIC DEVICE
DEVICE INFO
MANUFACTURER
MODEL
CGS
GAS NAME XXXXX
UNIT OF MEASURE %LFL
URV 100%
LRV 0%
K-FACTOR XXXX
RESPONSE XXXX MV
DEVICE STATUS
DEVICE INFO
FAULT/ STATUS
CALIBRATION LOG
CALIBRATION LOG
CAL ID XXXX
DATE DD/MMM/YYYY
TIME HH:MM:SS
ZERO XX.XX
SPAN XX.XX
DEVICE SETUP
DEVICE OPTION
DEVICE OPTION
GAS NAME XXXXX
K-FACTOR XXXXX
DEVICE CAL
CALIBRATION
CAL GAS CONC
50.00
CAL GAS XXXX
K FACTOR XX.XX
CALIBRATION
EXECUTE
STATUS
ANY FAULT ON/OFF
CAL . ACTIVE ON/OFF
WARM UP ON/OFF
LOW ALARM ON/OFF
HIGH ALARM ON/OFF
LON ATTACHED ON/OFF
RESPONSE TEST ON/OFF
MANUAL SELF TEST ON/OFF
INPUT HART ON/OFF
DISPLAY STATUS
GENERAL INFO
FAULT/STATUS
LON CONFIG
HISTORY
DISPLAY INFO
DEBUG MENU
FAULT/STATUS
OP MODE XXXXX
FAULT Y/N
STATUS Y/N
LON FAULT Y/N
6901 WEST 110TH STREET
MINNEAPOLIS, MN 55438
USA
DEBUG MENU
HART ERRORS XXXXX
ANALOG INPUT XX.XX MA
LON COMM ERRORS XXXX
GENERAL INFO
MANUFACTURER
MODEL
UD-10
TAG XXXXX
DESCRIPTOR XXXXX
MESSAGE XXXXX
FINAL ASSY NUM XXXXX
DEVICE ID XXXXX
FAULTS
LOOP FAULT ON/OFF
WARM UP ON/OFF
SENSOR FAULT ON/OFF
CAL FAULT ON/OFF
ZERO DRIFT FAULT ON/OFF
CGS COMM FAULT ON/OFF
FAULT/ STATUS
FAULTS Y/N
STATUS Y/N
LON CONFIG
HGH ALARM LEVEL XX.XX
LOW ALARM LEVEL XX.XX
CAL GAS CONC XX.XX
STATUS RATE XXXXXX
LON ADDRESS XXXXXX
6901 WEST 110TH STREET
MINNEAPOLIS, MN 55438
USA
DISPLAY TEST
SELF TEST
RESPONSE TEST
STATUS
WEAK SENSOR ON/OFF
LON FAULT
INVALID CONFIG ON/OFF
LON OFFLINE ON/OFF
TERM BD FAULT ON/OFF
BACKLIGHT CTRL
OFF
ON
AUTOMATIC
DISPLAY HISTORY
RUNNING HOURS XXXX
MAX TEMP XX.XX C
MAX TEMP TIME XX:XX:XX
MIN TEMP XX.XX C
RESET MAX MIN
MIN TEMP TIME
XX:XX:XX
MAX RESET TEMP XX.XX C
MAX RESET TIME XX:XX:XX
MIN RESET TEMP XX.XX C
MIN RESET TIME XX:XX:XX
17-Aug-11 CGS 3.25
Detector Electronics

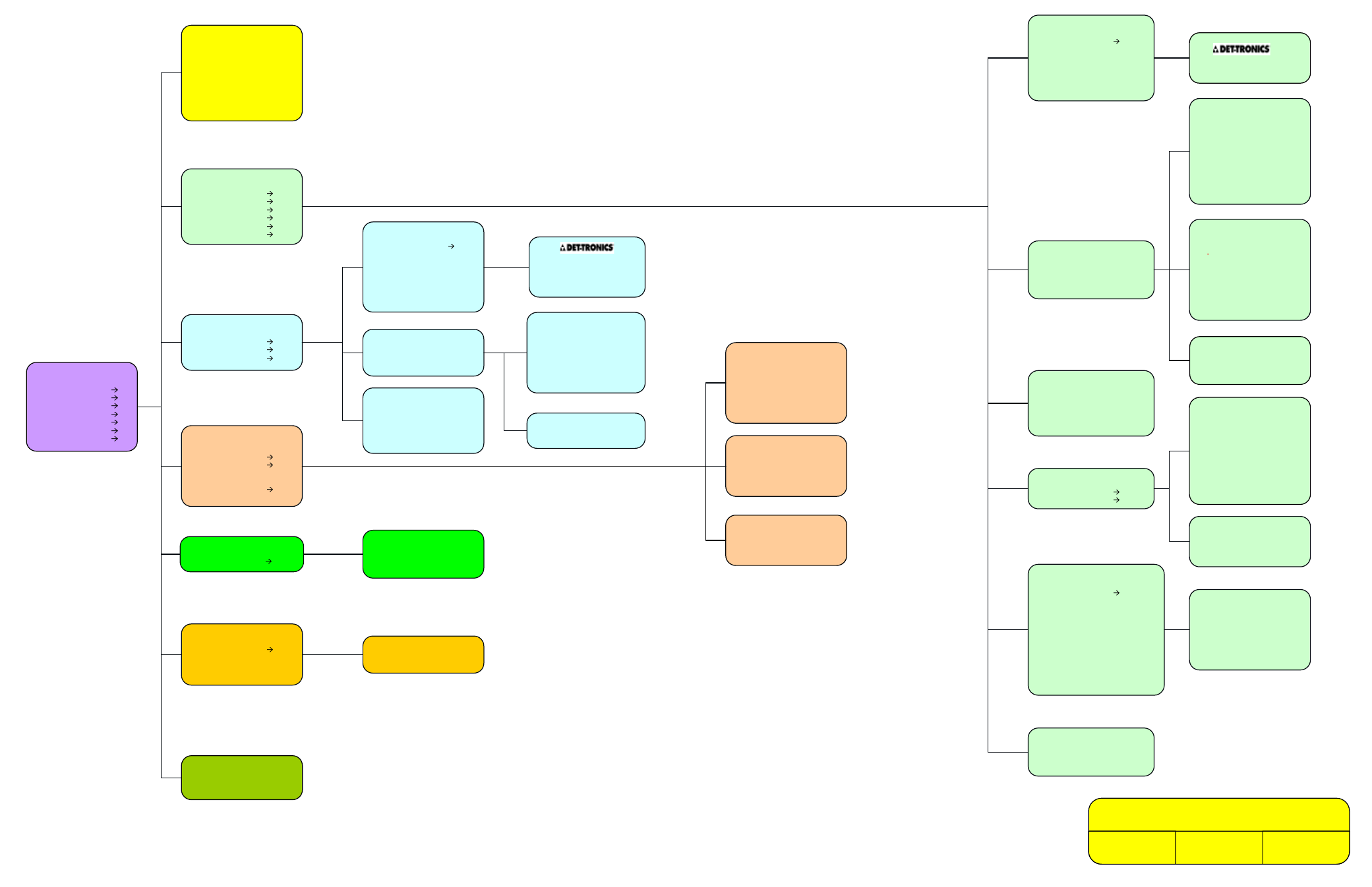

MAIN MENU
PROCESS VARS
DISPLAY STATUS
DEVICE STATUS
DISPLAY SETUP
DEVICE SETUP
DEVICE CAL
DISPLAY TEST
