86
11 Приложение
VEGAPULS SR 68 • Foundation Fieldbus
38297-R
U-130731

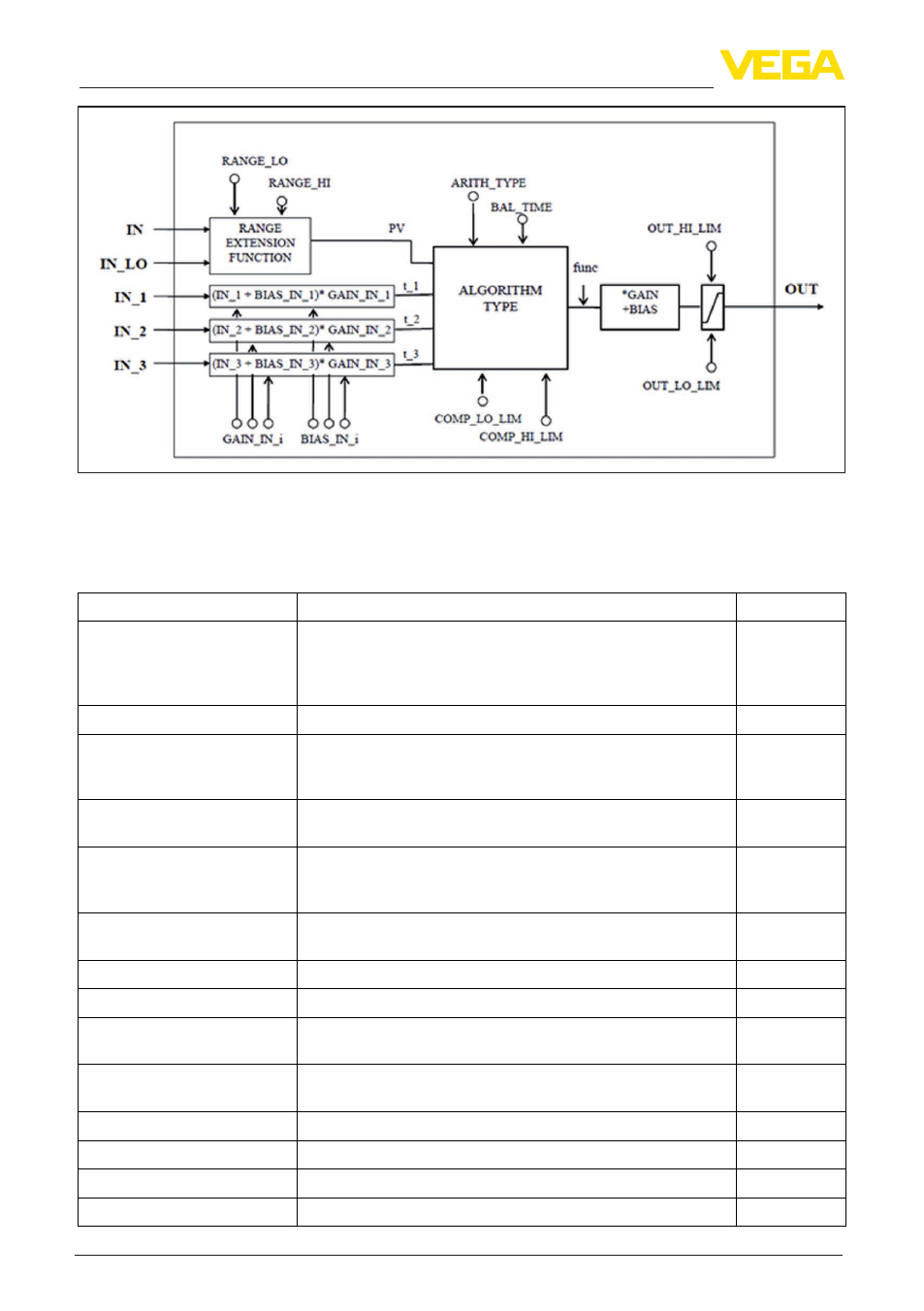

Рис. 64: Схема функционального блока Arithmetic
Список параметров
В следующей таблице приведен обзор используемых параметров.
FF desciptor Description Unit
PRIMARY_VALUE PRIMARY_VALUE (Linearized value). This is the process value
after min/max adjustment and Linearization with the status of
the transducer block. The unit is defined in "PRIMARY_VALUE_
UNIT"
PRIMARY_VALUE_UNIT Selected unit code for "PRIMARY_VALUE"
SECONDARY_VALUE_1 This is the measured value after min/max adjustment with
the status of the transducer block. The unit is defined in
"SECONDARY_VALUE_1_UNIT"
SECONDARY_VALUE_1_
UNIT
Selected unit code for "SECONDARY_VALUE_1"
SECONDARY_VALUE_2 This is the distance value ("sensor_value") with the status of
the transducer block. The unit is defined in "SECONDARY_
VALUE_2_UNIT"
FILL_HEIGHT_VALUE Filling height. The unit is defined in "FILL_HEIGHT_VALUE_
UNIT"
FILL_HEIGHT_VALUE_UNIT Filling height unit
CONST_VALUE
Constant value
SECONDARY_VALUE_1_
TYPE
Secondary value 1 type
SECONDARY_VALUE_2_
TYPE
Secondary value 2 type
FILL_HEIGHT_VALUE_Type Filling height value type
DIAGNOSIS AITB Diagnosis
DIAG_MASK_1
DIAG_OUT_1
