Quick start guide
6
En
1
Connect the digital coaxial audio cable to the
digital coaxial audio output jack of your DVD
player and the DVD DIGITAL INPUT COAXIAL
jack of this unit.
2
Connect the video cable to the composite
video output jack of your DVD player and the
DVD VIDEO jack of this unit.
3
Connect the video cable to the video input
jack of your video monitor and the VIDEO
MONITOR OUT jack of this unit.
4
Connect the power plug of this unit and other
components into the AC wall outlet.

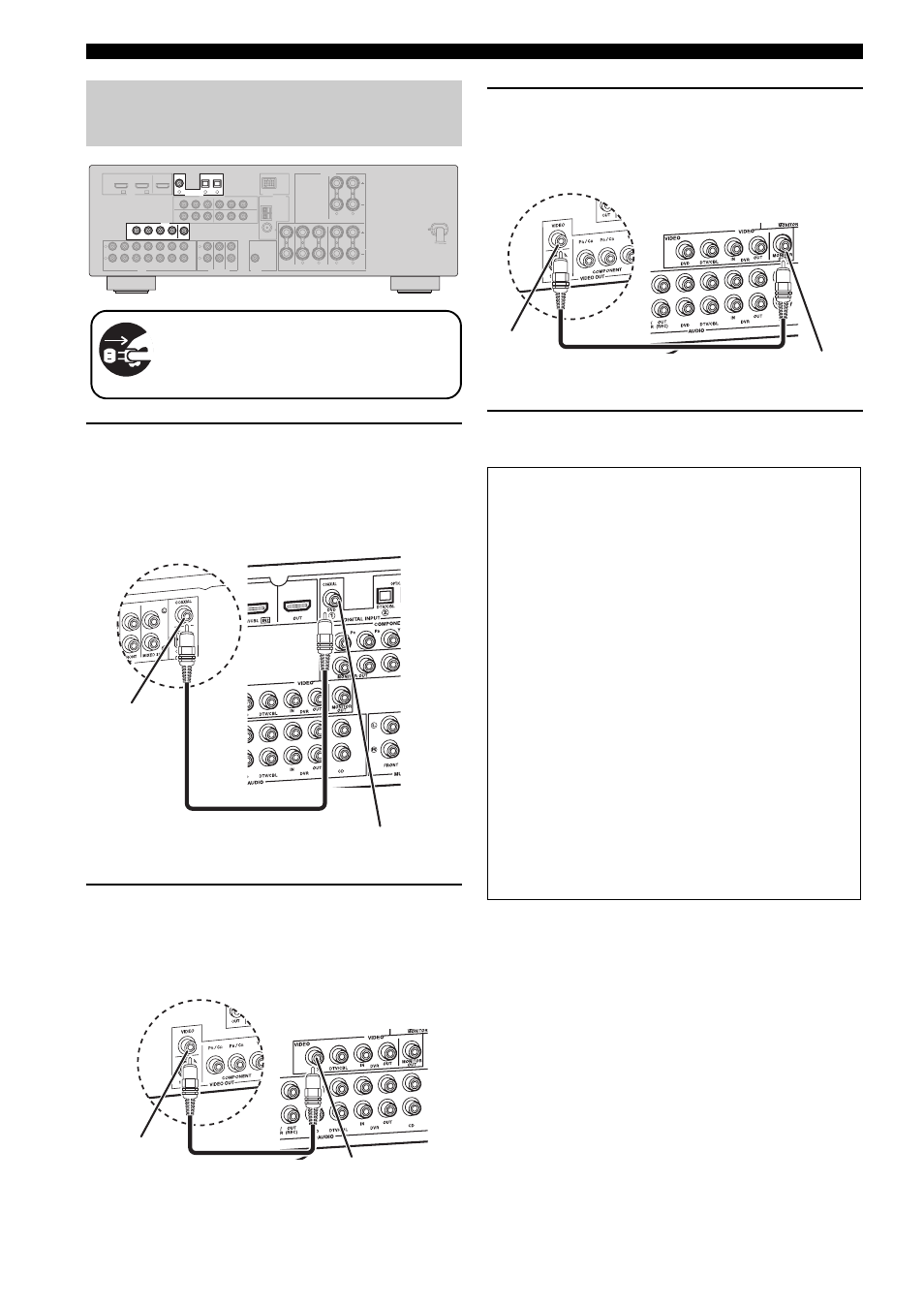

Step 2: Connect your DVD player
and other components
L R SURROUND
L R FRONT B L R FRONT A CENTER
MONITOR OUT
L
R
DTV/CBL DVR DVD MD/ CD-R OUT (REC) IN (PLAY) OUT IN
DTV/CBL DVR DVD OUT IN
CD
L
R
SUB WOOFER
SUB WOOFER
SURROUND
CENTER
MULTI CH INPUT AUDIO
VIDEO
OUTPUT
FRONT
1 2 3 DTV/CBL DTV/CBL CD OUT
DTV/CBL
DVR
DVD DVD
OPTICAL COAXIAL
DVD P R P B Y P R P B Y
MONITOR OUT
AM
GND
FM
75 UNBAL.
COMPONENT VIDEO ANTENNA
SPEAKERS
HDMI DIGITAL INPUT
VIDEO
IN1 IN2 DOCK
MONITOR OUT DTV/CBL DVR DVD OUT IN
VIDEO
1 2 3 DTV/CBL CD DVD
OPTICAL COAXIAL
DIGITAL INPUT
VIDEO
Make sure that this unit and the DVD
player are unplugged from the AC wall
outlets.
Digital coaxial
audio output jack
Digital coaxial audio
cable
DVD DIGITAL INPUT
COAXIAL jack
DVD player AV receiver
Composite video
output jack Video cable DVD VIDEO jack
DVD player
AV receiver
■ For further connections
• Using the other kind of speaker
combinations
☞ P. 11
• Connecting video components
☞ P. 15
• Connecting a DVD player
☞ P. 16
• Connecting a DVD recorder
☞ P. 17
• Connecting a set-top box
☞ P. 17
• Connecting a CD player
and a CD recorder/MD recorder
☞ P. 18
• Connecting a multi-format player
or an external decoder
☞ P. 18
• Connecting a Yamaha iPod/Bluetooth dock
☞ P. 19
• Using the VIDEO AUX jacks on the front
panel ☞ P. 19
• Connecting an FM/AM antenna ☞ P. 20
• Using the USB jack on the front panel
☞ P. 49
Video monitor AV receiver
Video input
jack
VIDEO MONITOR OUT
jack
Video cable
