Connections

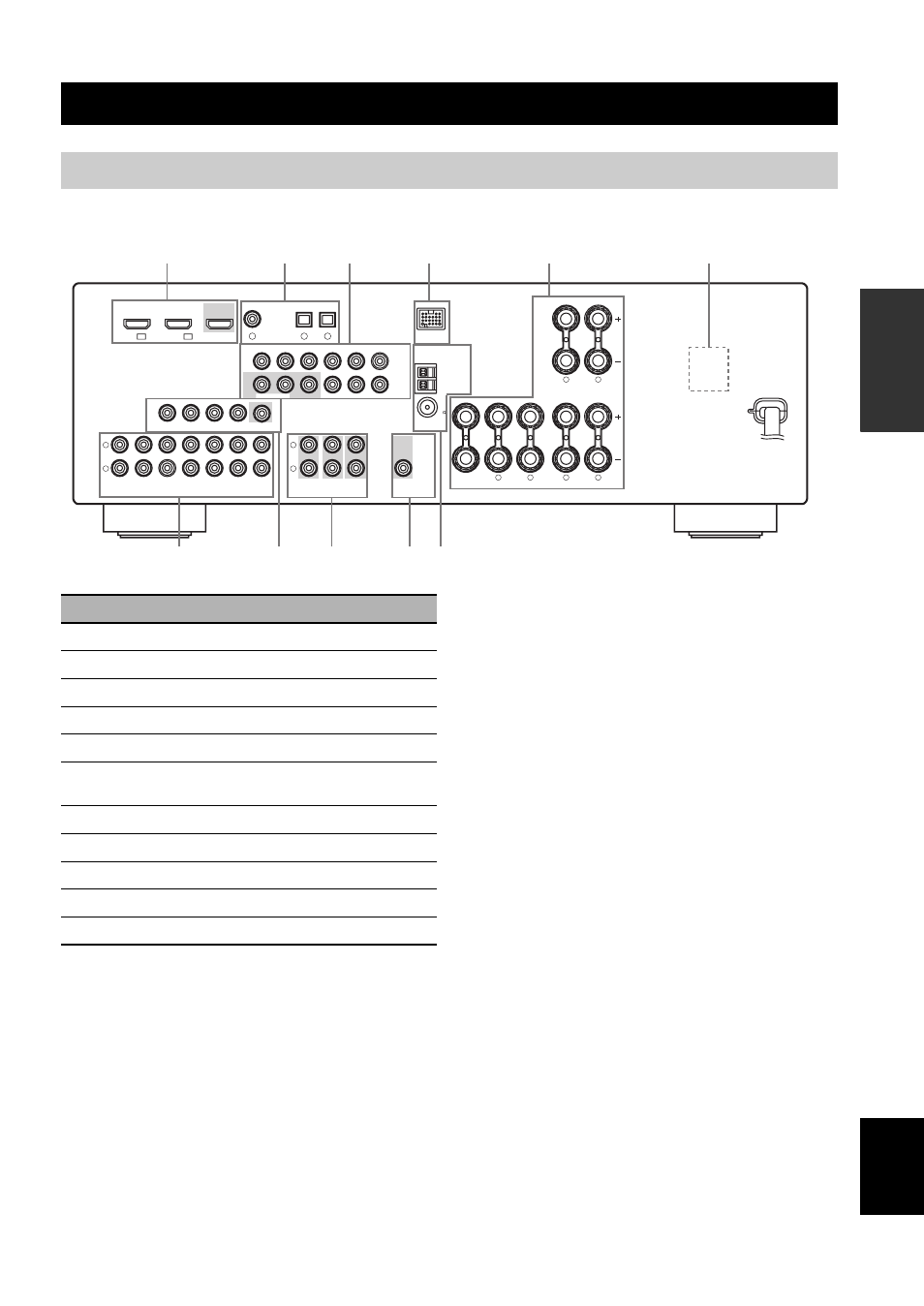

Rear panel
L R SURROUND
L R FRONT B L R FRONT A CENTER
MONITOR
OUT
L
R
DTV/CBL DVR DVD
MD/
CD-R
OUT
(REC)
IN
(PLAY)
OUT IN
DTV/CBL DVR DVD OUT IN
CD
L
R
SUB
WOOFER
SUB
WOOFER
SURROUND
CENTER
MULTI CH INPUT AUDIO OUTPUT
FRONT
1 2 3 DTV/CBL
DTV/CBL CD
OUT
DTV/CBL
DVR
DVD
DVD
OPTICAL COAXIAL
DVD
P R P B Y P R P B Y
MONITOR OUT
AM
GND
FM
75
UNBAL.
COMPONENT VIDEO ANTENNA
SPEAKERS
HDMI DIGITAL INPUT
VIDEO
DOCK
IN1 IN2
1 2 3 4 5 6
A 8 0 9 7
Name Page
1 HDMI jacks 14
2 DIGITAL INPUT jacks 13
3 COMPONENT VIDEO jacks 13
4 DOCK terminal 19
5 Speaker terminals 11
6 VOLTAGE SELECTOR
(Asia and General models only) 3
7 AUDIO jacks 13
8 VIDEO jacks 13
9 MULTI CH INPUT jacks 18
0 SUBWOOFER OUTPUT jack 11
A ANTENNA terminals 20
