20

En

Connections

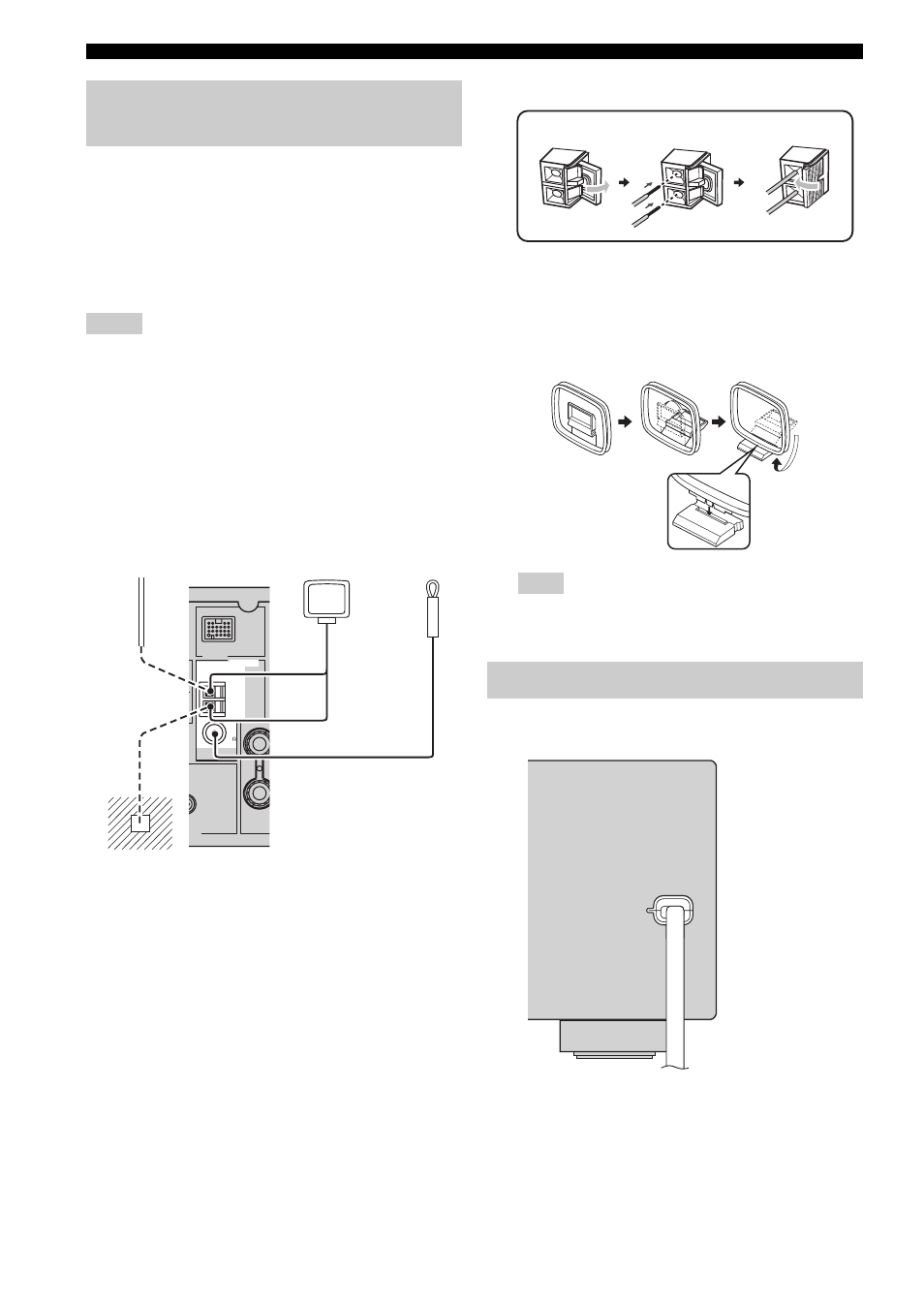

Both FM and AM indoor antennas are supplied with this
unit. Connect each antenna correctly to the designated
terminals. In general, these antennas should provide
sufficient signal strength.

y

See right for connection information of the supplied AM loop
antenna.

• The AM loop antenna should be placed away from this unit.
• The AM loop antenna should always be connected, even if an

outdoor AM antenna is connected to this unit.

• A properly installed outdoor antenna provides clearer reception

than an indoor one. If you experience poor reception quality,
install an outdoor antenna. Consult the nearest authorized
Yamaha dealer or service center about outdoor antennas.

Connecting the wire of the AM loop antenna

y

The wire of the AM loop antenna does not have any polarity
and you can connect either end of the wire to AM or GND
terminal.

Assembling the supplied AM loop antenna

The types of the supplied AM loop antenna is different
depending on the models.

Once all connections are complete, plug the power cable
into the AC wall outlet.

Connecting the FM and AM
antennas

Notes

CENTER

SUB

WOOFER

PUT

L

AM

GND

FM

75

UNBAL.

ANTENNA

DOCK

AM

GND

FM

75

UNBAL.

ANTENNA

Indoor FM
antenna
(supplied)

Ground (GND terminal)

For maximum safety and minimum interference, connect the
antenna

GND

terminal to a good earth ground. A good earth

ground is a metal stake driven into moist earth.

AM loop
antenna
(supplied)

Outdoor AM antenna

Use a 5 to 10 m (16 to 33
ft) vinyl-covered wire
extended outdoors from a
window.

(U.S.A. model)

Note

Connecting the power cable

Open the lever

Insert

Close the lever

Power cable
