19
En
Connections
English
PRE
P
ARA
T
ION

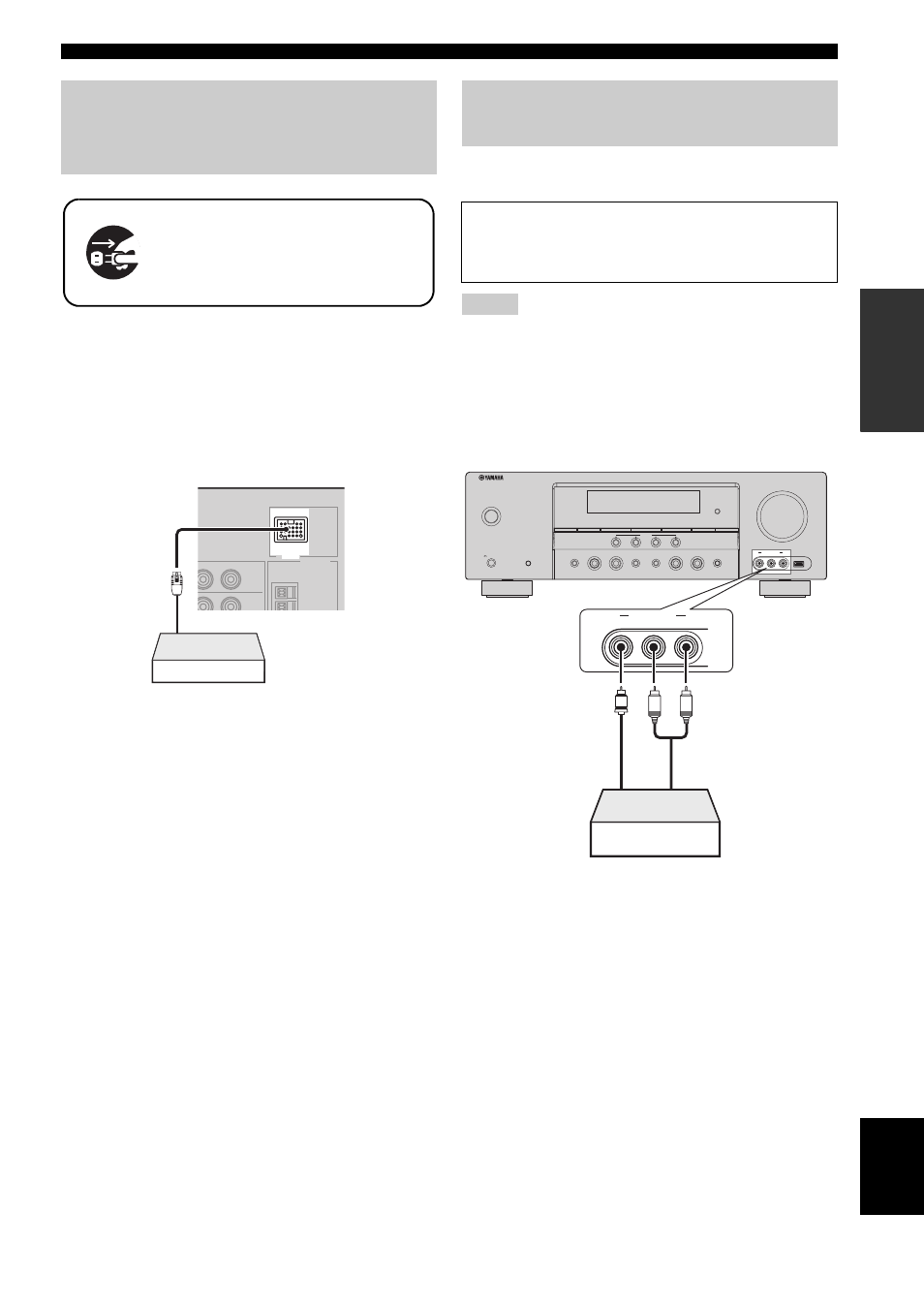

This unit is equipped with the DOCK terminal on the rear
panel that allows you to connect a Yamaha iPod universal
dock (such as YDS-10, sold separately) or Bluetooth
adapter (such as YBA-10, sold separately). Connect a
Yamaha iPod universal dock or Bluetooth adapter to the
DOCK terminal on the rear panel of this unit using its
dedicated cable.
Use the VIDEO AUX jacks on the front panel to connect a
game console or a video camera to this unit.
• To reproduce the source signals input at these jacks, select
“V-AUX” as the input source.
• When audio signals are input at the AUDIO jacks and the
DOCK terminal on the rear panel, the priority order of the input
signal is as follows:
1. DOCK
2. AUDIO
Connecting a Yamaha iPod™
universal dock or Bluetooth™
adapter
Make sure that this unit and other
components are unplugged from the
AC wall outlets.
DTV/CBL
DVR
P B Y
AM
GND
ANTENNA
DOCK DOCK
Yamaha iPod universal dock
or Bluetooth adapter
Using the VIDEO AUX jacks on the
front panel
Caution
Be sure to turn down the volume of this unit and other
components before making connections.
Notes
SPEAKERS PHONES
SILENT CINEMA
STANDBY/ ON
A/B/OFF
BAND TUNING AUTO/MAN'L
OPTIMIZER MIC
AUDIO SELECT DIRECT STRAIGHT
EFFECT
TONE CONTROL l INPUT h l PROGRAM h
VOLUME
SCENE
1 2 3 4
l PRESET/TUNING/CH h A/B/C/D/E EDIT PRESET/TUNING MEMORY
VIDEO L AUDIO R VIDEO AUX USB
VIDEO L AUDIO R
VIDEO AUX
V L R
Game console or
video camera
Video
output
Audio
output
