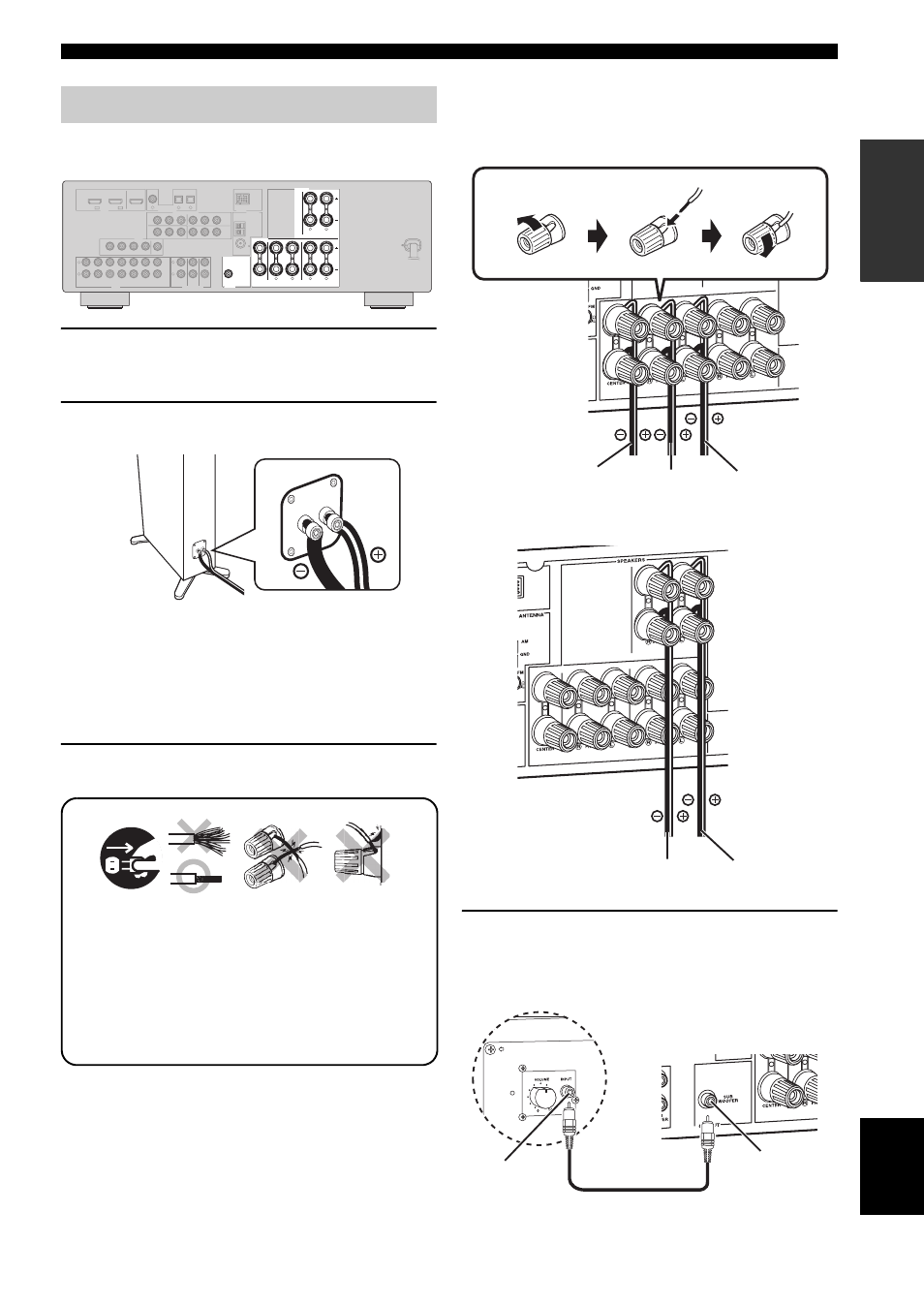

Quick start guide

5

En

English

INTR

ODUCTION

Place your speakers in the room and connect them to this
unit.

1

Place your speakers and subwoofer in the
room.

2

Connect speaker cables to each speaker.

Cables are colored or shaped differently, perhaps with
a stripe, groove or ridge. Connect the striped
(grooved, etc.) cable to the “+” (red) terminals of
your speaker. Connect the plain cable to the “–”
(black) terminals.

3

Connect each speaker cable to the
corresponding speaker terminal of this unit.

1 Make sure that this unit and the subwoofer are

unplugged from the AC wall outlets.

2 Twist the exposed wires of the speaker cables

together to prevent short circuits.

3 Do not let the bare speaker wires touch each other.
4 Do not let the bare speaker wires touch any metal

part of this unit.

Be sure to connect the left channel (L), right channel
(R), “+” (red) and “–” (black) properly.

Front and center speakers

Surround speakers

4

Connect the subwoofer cable to the input
jack of the subwoofer and the SUBWOOFER
OUTPUT jack of this unit.

Step 1: Set up your speakers
