11
En
Connections
English
PRE
P
ARA
T
ION
Be sure to connect the left channel (L), right channel (R), “+” (red) and “–” (black) properly. If the connections are faulty,
this unit cannot reproduce the input sources accurately.

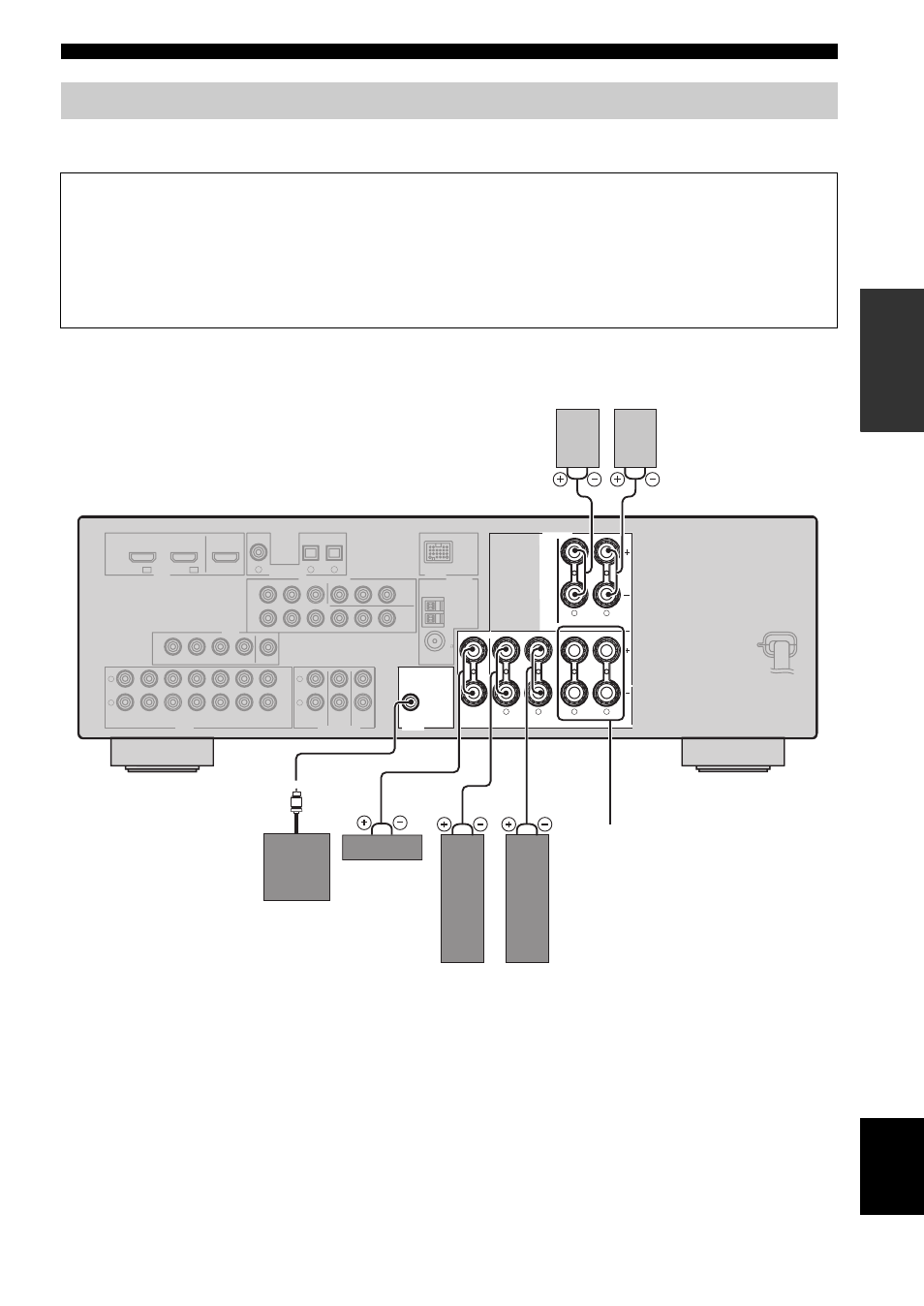

Connecting speakers
Caution
• Before connecting the speakers, make sure that the AC power plug is disconnected from the AC wall outlet.
• Do not let the bare speaker wires touch each other or let them touch any metal part of this unit. This could damage
this unit and/or the speakers. If the speaker wires are short-circuited, “CHECK SP WIRES” appears in the front
panel display when you turn on this unit.
• Use the magnetically shielded speakers. If this type of speaker still creates interference with the monitor, place the
speakers away from the monitor.
L R SURROUND
L R FRONT B L R FRONT A CENTER
MONITOR OUT
L
R
DTV/CBL DVR DVD
MD/
CD-R
OUT
(REC)
IN
(PLAY)
OUT IN
DTV/CBL DVR DVD OUT IN
CD
L
R
SUB
WOOFER
SUB
WOOFER
SURROUND
CENTER
MULTI CH INPUT AUDIO
VIDEO
OUTPUT
FRONT
1 2 3 DTV/CBL
DTV/CBL CD
OUT
DTV/CBL
DVR
DVD
DVD
OPTICAL
COAXIAL
DVD
P R P B Y P R P B Y
MONITOR OUT
AM
GND
FM
75
UNBAL.
COMPONENT VIDEO ANTENNA
SPEAKERS
HDMI DIGITAL INPUT
VIDEO
DOCK
IN1 IN2
Front speakers
(FRONT A)
Surround speakers
Subwoofer
Center
speaker
Left
Left Right
Right
FRONT B terminals
Connect the alternative front speaker system
(FRONT B).
