15
En
Connections
English
PRE
P
ARA
T
ION

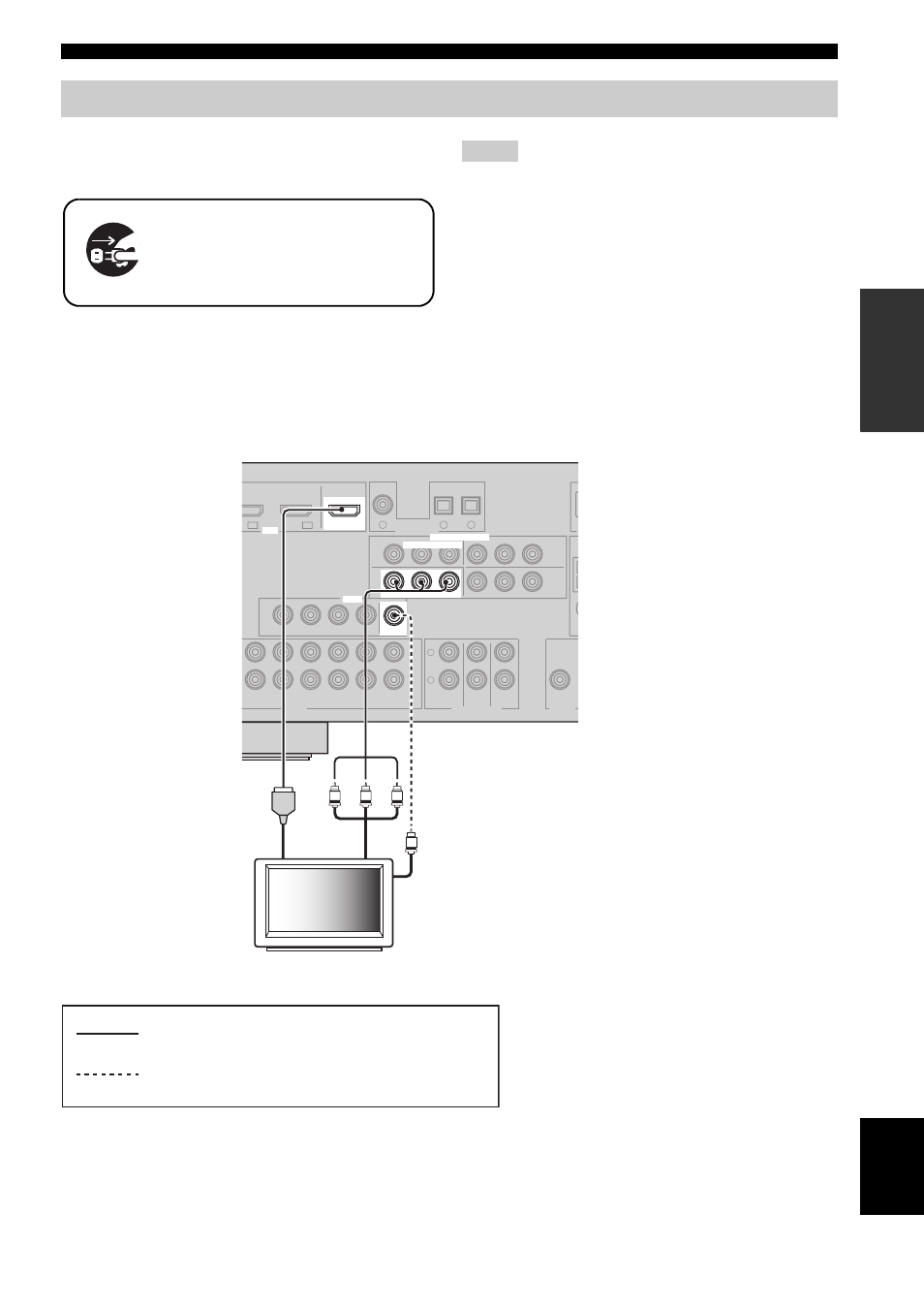

Connect your TV (or projector) to the HDMI OUT jack,
the COMPONENT VIDEO MONITOR OUT jacks, or the
VIDEO MONITOR OUT jack of this unit.
y
You can choose to play back HDMI audio signals on this unit or
on another HDMI component connected to the HDMI OUT jack
of this unit. Use the “SUPPORT AUDIO” parameter in “SOUND
MENU” to select the component to play back HDMI audio
signals (see page 61).
• Some video monitors connected to this unit via a DVI
connection fail to recognize the HDMI audio/video signals
being input if they are in the standby mode. In this case, the
HDMI indicator flashes irregularly.
• When you connect your TV monitor or projector via HDMI
connection, the OSD does not appear. In such cases, connect the
TV monitor or projector via component, or video connection.
• Connect the input source components to the HDMI IN DVD or
HDMI IN DTV/CBL jack to display the video images on the
video monitor connected to the HDMI OUT jack.
Connecting video components
Make sure that this unit and other
components are unplugged from the
AC wall outlets.
Notes
MONITOR
OUT
DTV/CBL DVR DVD
D/
-R
OUT
(REC)
OUT IN
DTV/CBL DVR DVD OUT IN
CD
L
R
SUB
WOOFER
WO
SURROUND
CENTER
MULTI CH INPUT AUDIO OUTPUT
FRONT
1 2 3 DTV/CBL
DTV/CBL CD
OUT
DTV/CBL
DVR
VD
DVD
OPTICAL
COAXIAL
DVD
P R P B Y P R P B Y
MONITOR OUT
COMPONENT VIDEO
HDMI DIGITAL INPUT
VIDEO
IN1 IN2
MONITOR
OUT
OUT
P R P B Y
MONITOR OUT
COMPONENT VIDEO
HDMI
VIDEO
P R P B
V
Y
TV (or projector)
Video in
Component
video in
HDMI in
indicates recommended connections
indicates alternative connections
