Connections
1 HDMI indicator
Lights up when the signal of the selected input source is
input at the HDMI IN jacks (see page 14).
2 DOCK indicator
• Lights up when you station your iPod in a Yamaha
iPod universal dock (such as YDS-10, sold separately)
connected to the DOCK terminal of this unit (see
page 19) and V-AUX is selected as the input source.
• Flashes while the connected Yamaha Bluetooth adapter
(such as YBA-10, sold separately) and the Bluetooth
component is in the paring (see page 53) or the
Bluetooth adapter is searching the Bluetooth
component (see page 53).
• Lights up while the connected Yamaha Bluetooth
adapter is connected to the Bluetooth component (see
page 19).
3 ENHANCER indicator
Lights up when the Compressed Music Enhancer mode is
selected (see page 38).
4 Input source indicators
The corresponding cursor lights up to show the currently
selected input source.
5 YPAO indicator
Lights up when you run “AUTO SETUP” and when the
speaker settings set in “AUTO SETUP” are used without
any modifications (see page 24).
6 Tuner indicators
Lights up when this unit is in the FM or AM tuning mode
(see pages 43 to 45).
7 MUTE indicator and VOLUME level indicator
• The MUTE indicator flashes while the MUTE function
is on (see page 35).
• Indicates the current volume level.
8 PCM indicator
Lights up when this unit is reproducing PCM (Pulse Code
Modulation) digital audio signals.
9 Decoder indicators
The respective indicator lights up when any of the
decoders of this unit function.
0 Headphone indicator
Lights up when headphones are connected (see page 35).
A SP A B indicators
Light up according to the set of front speakers activated
(see page 33).
SP A: The FRONT A speakers are activated.
SP B: The FRONT B speakers are activated.

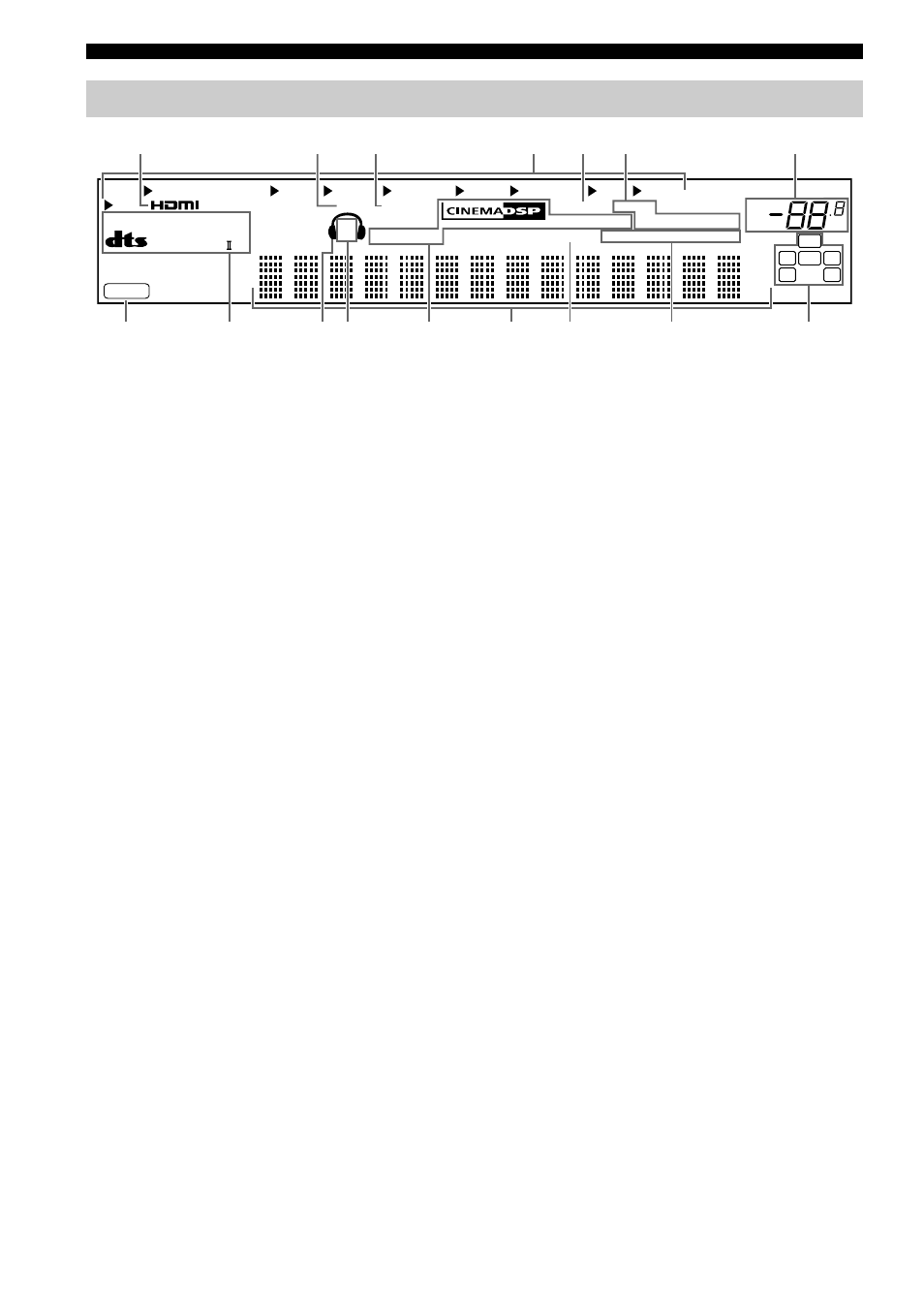

Front panel display
MUTE
ms
dB
ft
VOL.
dB
PCM
VIRTUAL AUTO
YPAO MEMORY
TUNED STEREO
EON
CT
RT
PTY
PS
HOLD
PTY
SLEEP
USB
MULTI CH
DVR
V-AUX
DTV/CBL
DVD
CD
MD/CD-R
TUNER
DOCK
ENHANCER
SILENT CINEMA
SP
A B
