A
B

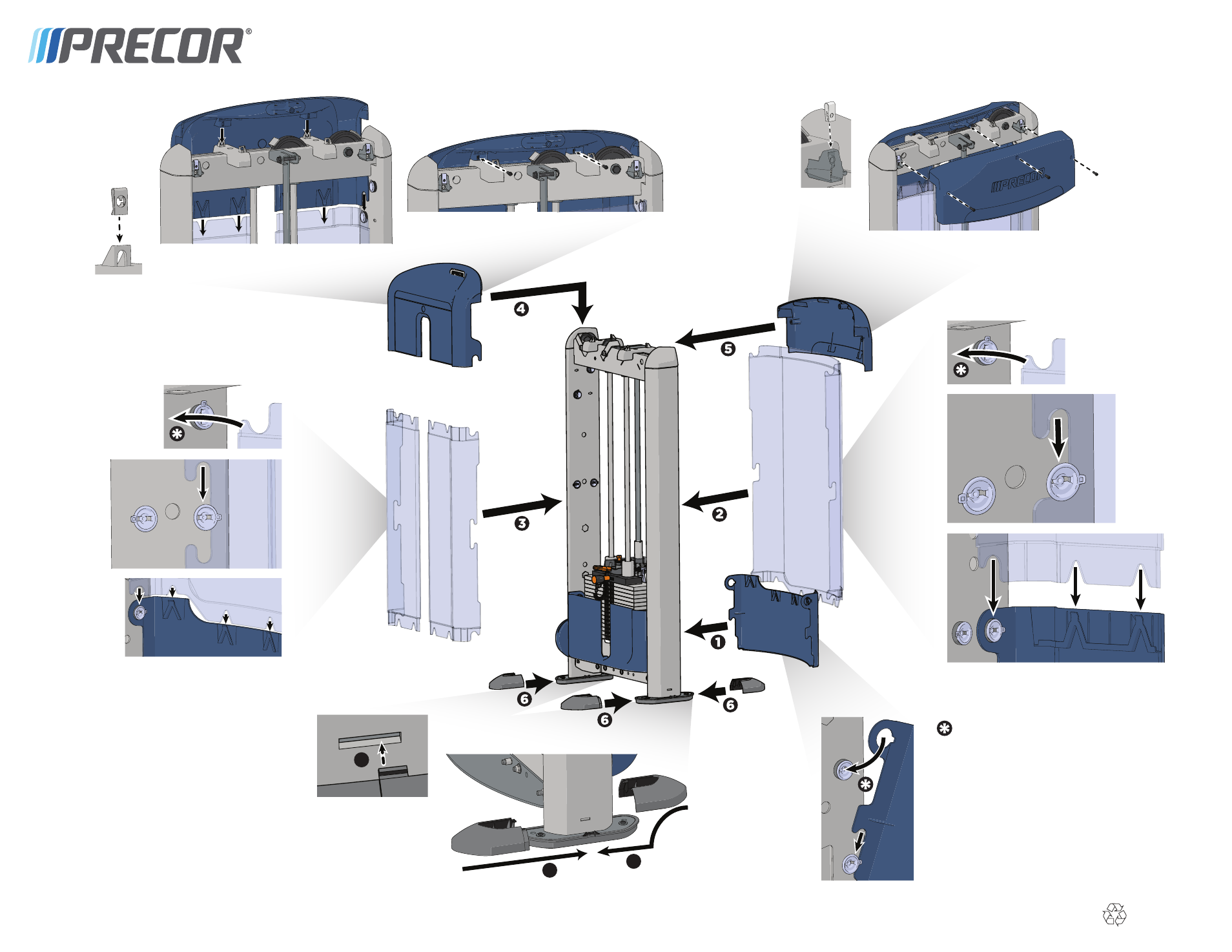

Discovery Series Selectorized Line
Shroud Assembly Guide
P/N CW39990-101 rev A, en
August 2012
© 2012 Precor Incorporated
Precor Incorporated
20031 142nd Ave NE, P.O. Box 7202
Woodinville, WA 98072-4002
www.precor.com • 1-800-347-4404
Press inward slightly so that the notch or
opening on the shroud locks onto the mount.
Both halves of the foot cover must fit over the
ridge on the foot. The outer half (B) must fit
over the flange on the inner half (A), and its
tabs must fit into the notches on the weight
tower upright.
!
