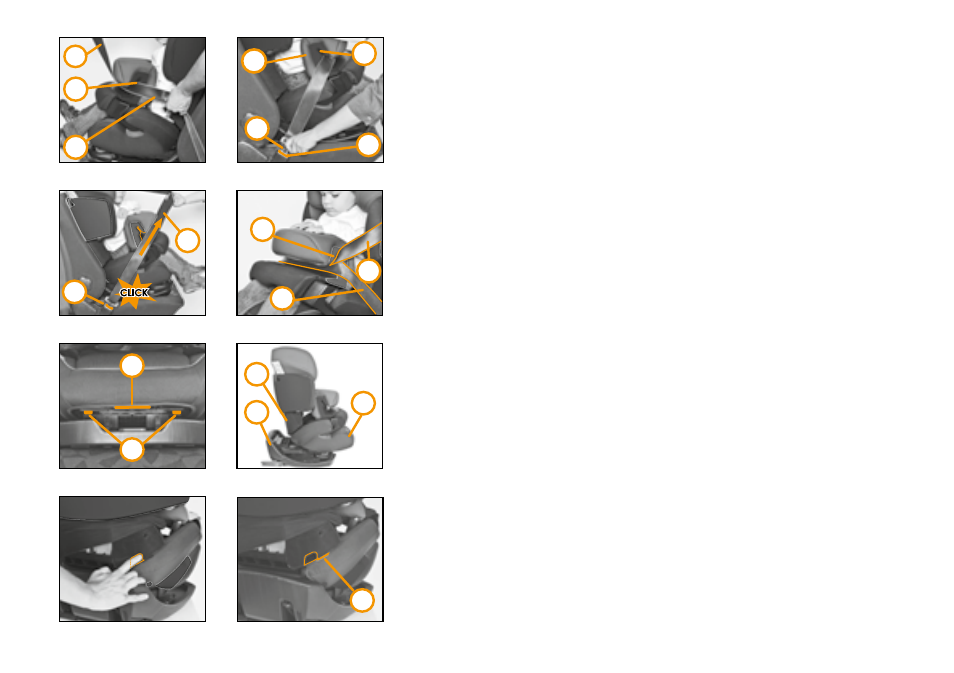

SECURinG With SAfEtY CUShiOn – ECE GROUP 1 (9-18 KG)
1. Place the child in the CYBEX PallaS-fix child seat.
2. Attach the previously adjusted safety cushion (p) to the child seat. (See chapter
“SAFETY CUSHION ADJUSTMENT“)
3. Pull out the complete vehicle belt length. Take the lap belt (n) and slide it into the
dedicated belt routings (x) (marked red) of the safety cushion (p).
4. Insert the belt tongue (m) into the belt buckle (l). Listen for an audible “CLICK“.
5. Now take the shoulder belt (f) and pull it to tighten lap belt (n).
6. Lead back the shoulder belt (f) parallel to the lap belt (n) into the same belt routing (x)
channel.
7. Pull the belt tight and make sure that the diagonal belt (f) and the lap belt (n) are
running completely inside (over the whole width) of the belt routing (x).
SWitChinG fROm GROUP 1 (9-18KG) tO GROUP 2/3 (15- 36KG)
1. Remove the safety cushion (p).
2. Press the two release buttons (q) on the bottom side of the seat cushion (d) and
simultaneously pull it away from the main frame (w) until you feel a resistance.
3. Now pull the reclining handle (v), situated centrally on the bottom of the seat cushion
(d), and pull off the child seat from the main frame (w).
4. To remove the spacers (s), pull up the backrest cover to reveal the finger hole on the
backside of the backrest (a).
5. Push the release hook inside the finger hole and pull the spacers (s) out of the backrest
(a).
6. Repeat this procedure on the other side of the backrest.
Warning! Never twist the belt!
