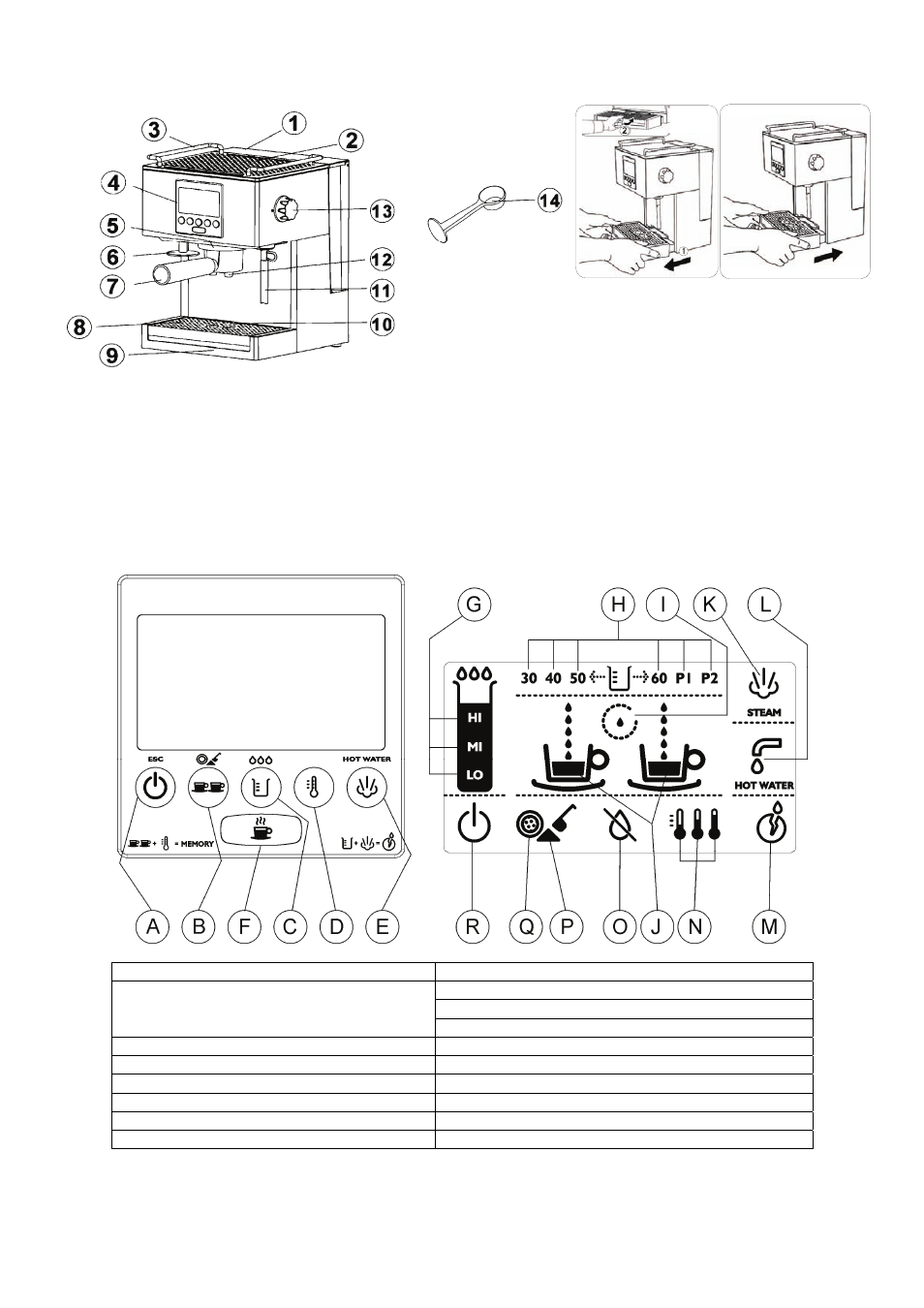

2. Machine design
1. Removable covered water tank
8. Drip tray grid
2. Cup-warming plate
9. Drip tray
3. Limiters of the cup-warming plate
10. Drip tray emptiness gauge
4. Control panel
11. Steam nozzle/cappuccino attachment
5. Brew head
12. Coffee outflow
6. Coffee compressor
13. Steam/hot water control
7. Filter handle
14. Measuring cup with a whip
3. Control panel
A Power on/off button
I Wait mode indicator
B Single/double cup select button/ espresso
instant bags mode/ground coffee mode
J Single/double cup indicator
K Steam indicator
L Hot water indicator
C Coffee amount select button
M Limescale removal indicator
D Temperature select button
N Temperature level indicator
E Steam/hot water select button
O Low water level indicator
F Brew coffee button
P Ground coffee mode indicator
G Water hardness indicator
Q Espresso instant bags mode indicator
H Coffee amount indicator
R Power on/off indicator
Before start to use the appliance
first time, remove the water
release hole protective label
from the drip tray plate.
