Before effecting any intervention on
the electrical parts of the appliance,
the connection to the network must be
interrupted.
FEEDER CABLE SECTION
“TYPE HO5RR-F”
Models:
TG..664 GHI, PG..664 GGHI
230 V
3 x 0,75 mm
2
(*) (**)
Model:
TEM..664 GHI
230 V
3 x 1,5 mm
2
(*) (**)
(*) – Connection possible with plug and
outlet
(**) – Connection with wall box connection
ELECTRICAL FEEDER CABLE
CONNECTION

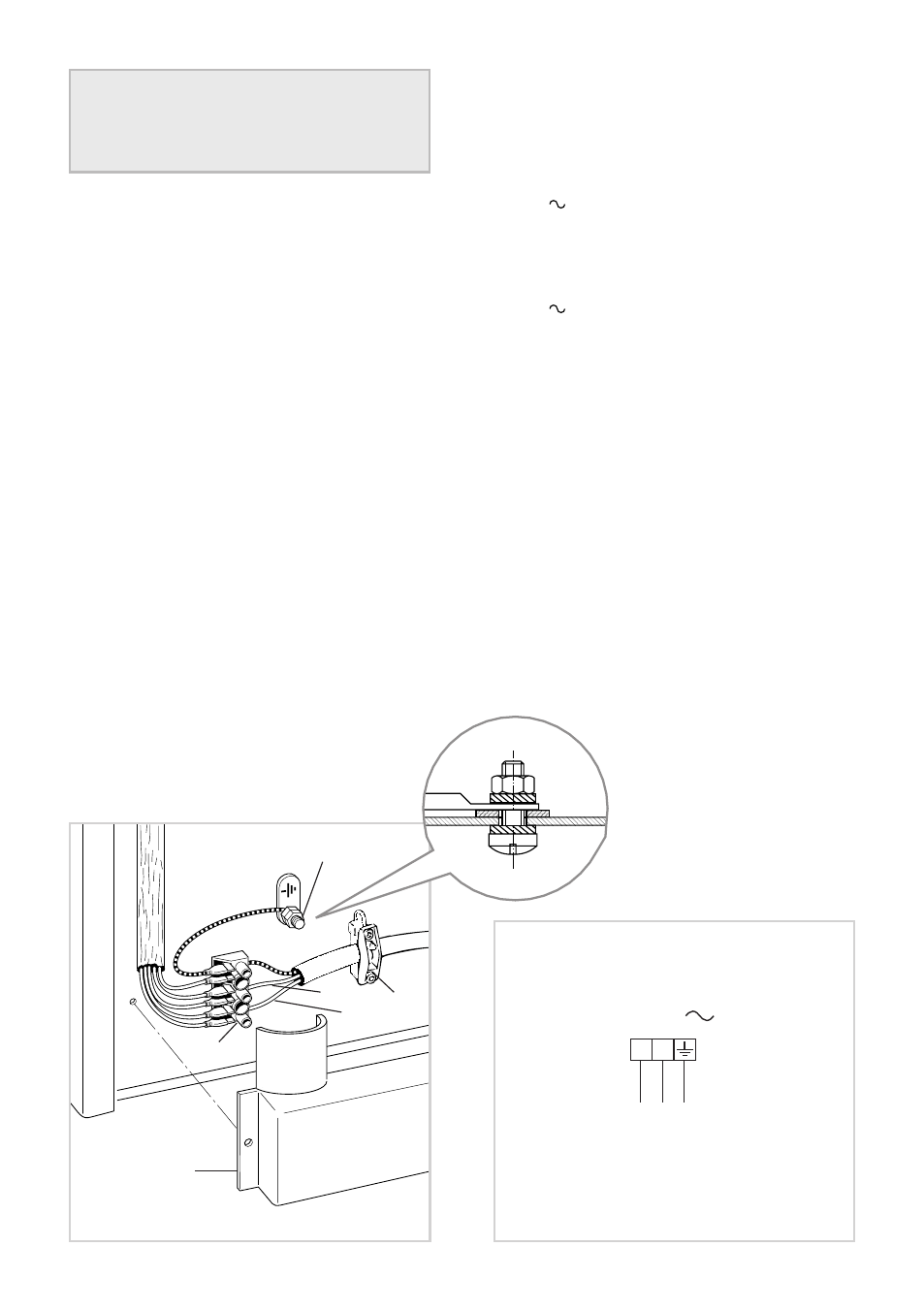

To connect the supply cable:
- Remove the screws securing the cover
“
A” on the rear of the cooker (fig. 9.1).
- Feed the supply cable through the
cable clamp “
D”. The supply cable
must be of a suitable size for the cur-
rent requirements of the appliance;
see the section “Feeder cable sec-
tion”.
- Connect the wires to the terminal
block “
B” as shown in the diagram in
figure 9.2; or connect the phase wires
to the terminal block “
B” and the earth
wire to the terminal PE as shown in
figure 9.1.
- Take up any slack in the cable and
secure with the cable clamp “
D”.
- Replace the cover “
A”.
Fig. 9.1
D
N
B
PE
A
L
230 V
PE
N
L
1
(L
2
)
Fig. 9.2
