SUBSTITUTION OF THE OVEN
AND GRILL INJECTORS
If not supplied with the appliance,
the injectors are available near the
Service Centre.
Select the injectors to be replaced according
to the “Table for the choice of the injectors”.
The nozzle diameters, expressed in hun-
dredths of a millimetre, are marked on the
body of each injector.
The hob can be opened in the following
way:
a) oven burner
– Lift and remove the lower panel inside the
oven.
– Remove the burner securing screw (fig.
8.7).
– Withdraw the burner as shown in figure
8.8 and rest it inside the oven. Take care
not to damage the wire to the ignition
electrode and the safety valve probe.
– Using a 7 mm box spanner, unscrew the
injector (indicated by the arrow in fig. 8.8)
and replace it by the proper one accord-
ing to the kind of gas.
Then replace the burner repeating the
above steps in reverse order.

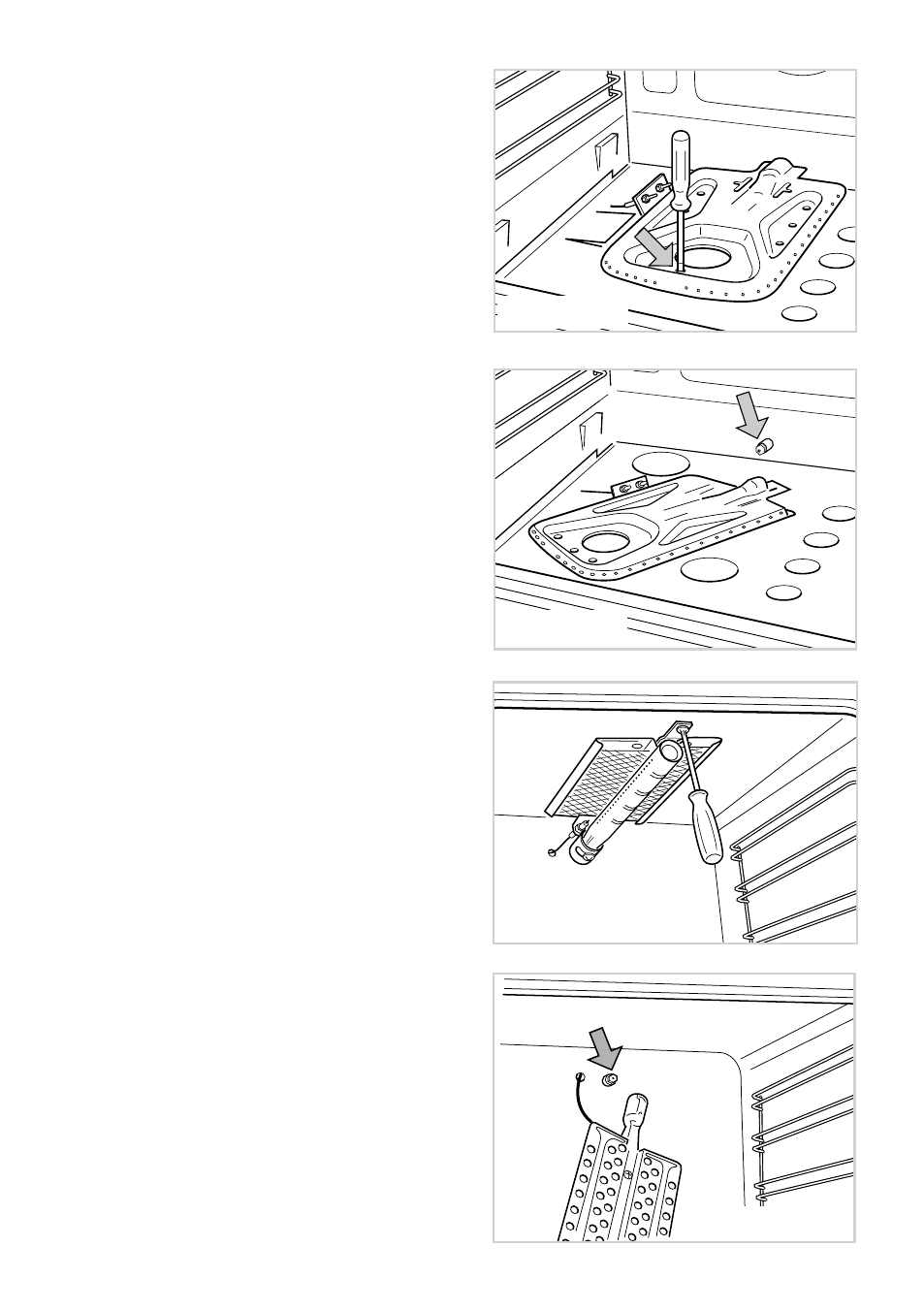

Fig. 8.7
Fig. 8.8
Fig. 8.9
Fig. 8.10
b) grill burner
– Remove the burner by unscrewing the
front screw (fig. 8.9).
Gently suspend the burner as shown in
figure 8.10.
Be careful not to damage the wire of
the electric ignition and the probe of
the safety valve.
– Using a 7 mm box spanner, replace the
injector (indicated by the arrow in fig.
8.10).
– Replace the burner repeating the
above steps in reverse order.
