2.7.
Set the door into place in its open position first from the upper
end and hold the door against the upper hinge plate.
Press the lower edge hinge plate downwards by its free end
while positioning the door’s lower hinge bolt in the hinge plate’s
hole. Place the slide washer back between the hinge plate and
the door’s lower edge next to the door’s axis.
Put the hinge plate into its place and fasten the attachment
screw you took off at the start (picture 2.7./3.). Do not close
the door.
reversing the handle on a KO-20 door
Detach attachment screw (2) on the edge of the door.
1.
Pull off the handle (1).
2.
Turn handle by 180 degrees and set it back into its place.
3.
Tighten attachment screw.
4.

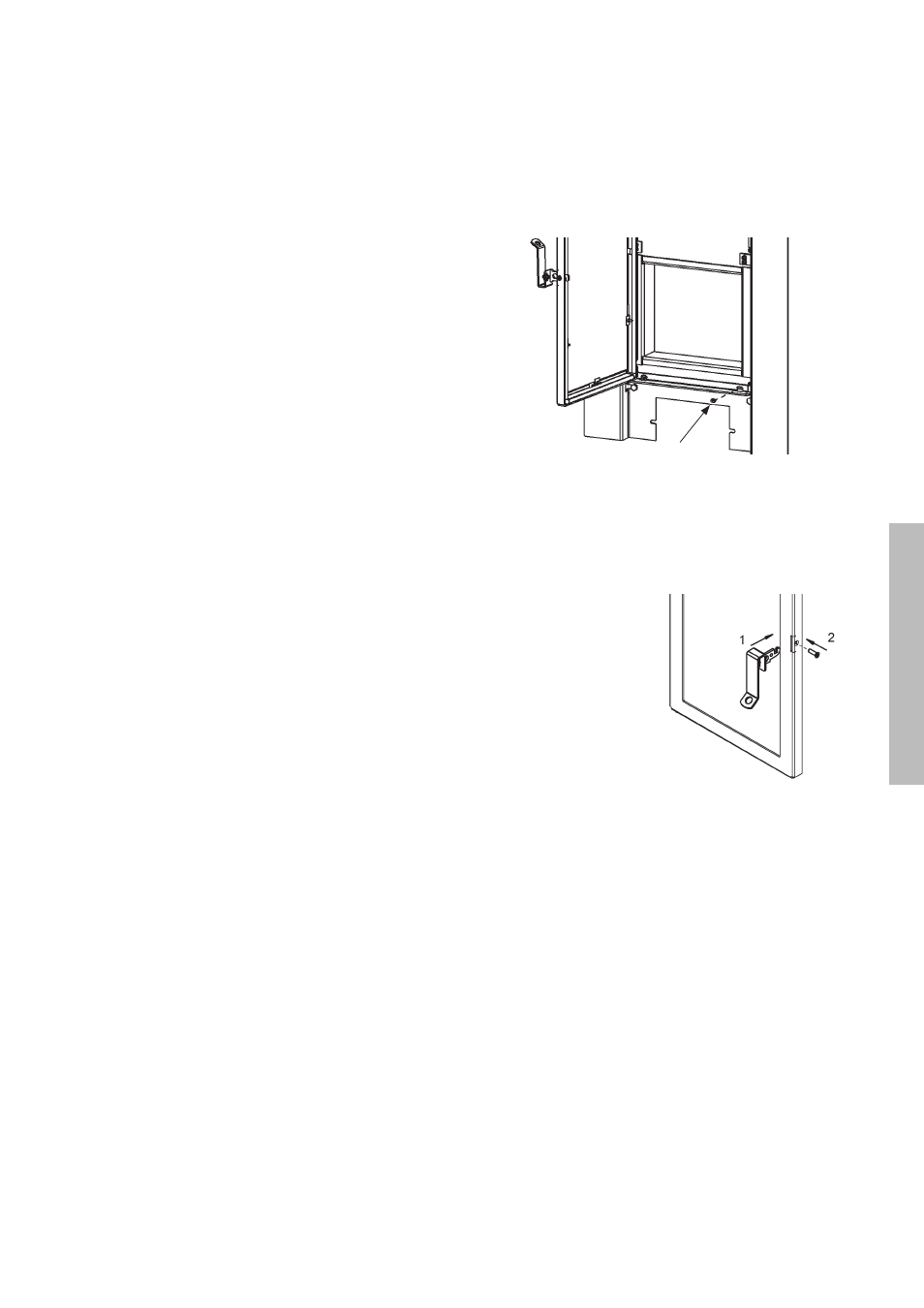

picture 2.7./3. changing the door’s opening direction on the KO-20.
picture 2.7./4. reversing the handle.
3.
1. Handle
2. Attachment screw
