2
[ gj] (-♦ 84, 90)
3 li!iii$i*}iSR)i[®](->84,92,94)
4
[CAMERA] (->58)
[VCR] (-»68, 72)
■ swafeiA:® -
rnsmirn ■■
■>
5 0-Lux
[0 LUX OFF/ON] (->100)
6 Sg¥«e!Siil* {-» 152)
7
(-»118)
8
(■♦ 100)
9
10 (iSSiS (-»60)
11 ;iii(ki2[FADE](-»82, 94)
12
[FOCUS] (-» 110)
Iigg$ffl[SET](-»30)
(-»76)
13 ^I)!iB6a[AV/MFn'RACKING](-»30, 76, 110)
14 SiSiB [MENU] (-»30)
15 @i!lBijtS)iffl[PROG.AE](-»58, 106, 110, 112)
16
[STORE] (-» 132)
IS(iii5®S#IB [OFF/ON] (-» 132, 134, 136)
17
[COLOUR] (-» 134)
18

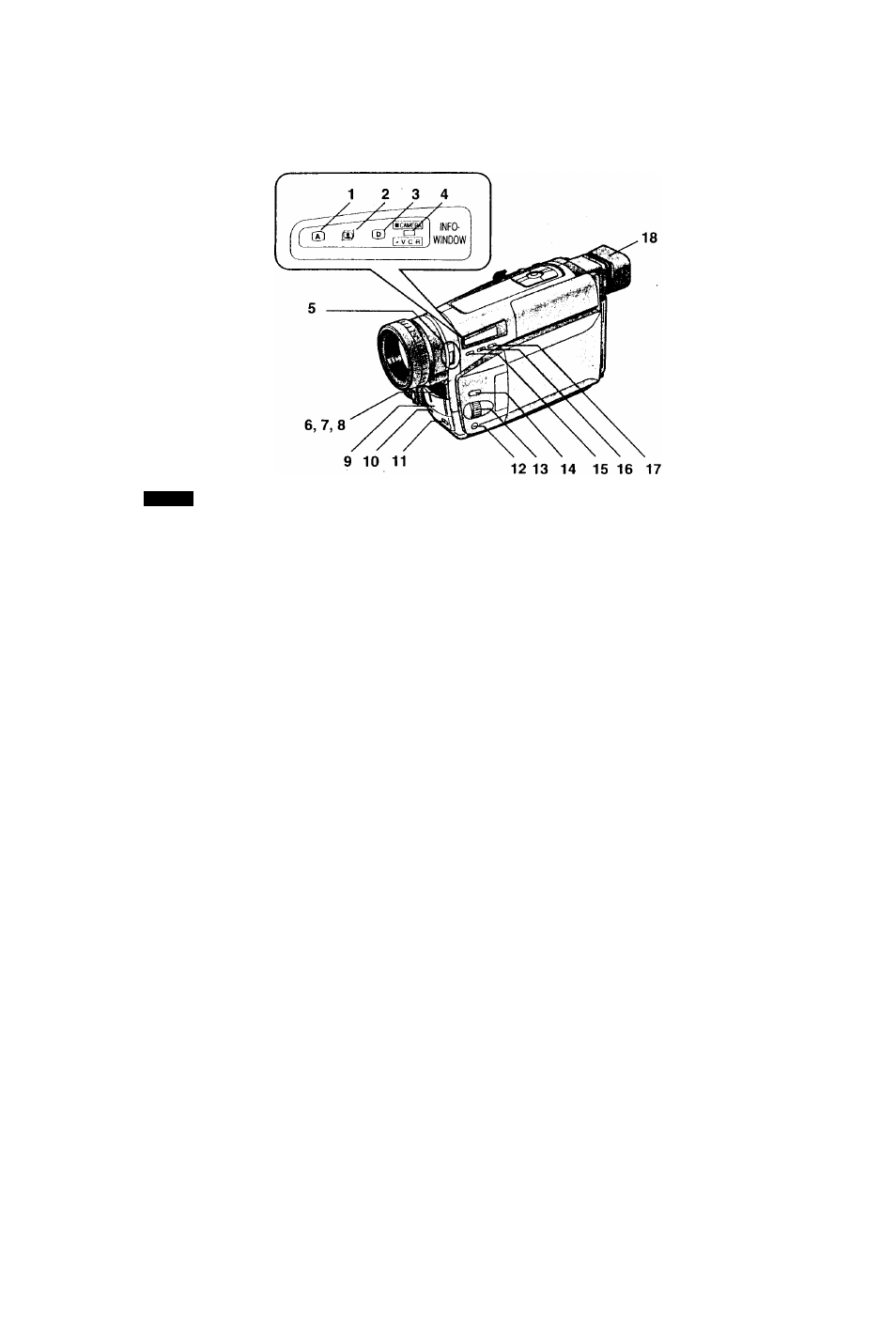

Controls and Components
1 Auto Mode Indication Lamp [ ® ] (-» 58)
2 Super Image Stabilizer indication Lamp [ @ ] (-» 84, 90)
3 Digital Effect Indication Lamp [® ] (-» 84, 92, 94)
4 Camera Mode Lamp [CAMERA] (-» 58)
VCR Mode Lamp [VCR] (-♦ 68, 72)
Camera Mode: The lamp lights red.
VCR Mode:
The lamp lights green.
5 0-Lux Recording Switch [0 LUX OFF/ON] (-»100)
6 White Balance Sensor (-» 152)
7 Remote Control Sensor (-»118)
8 Built-in Infra red Beam Emitters (-» 100)
9 Microphone
10 Tally Lamp (-» 60)
11 Fade Button [FADE] (-» 82, 94)
12 Focus Button [FOCUS] (-»110)
Item Set Button [SET] (-» 30)
Tracking Button (-» 76)
13 Multi-Function Dial
[A
T/MF/TRACKING]
(-♦ 30, 76,110)
14 Menu Button [MENU] (-» 30)
15 Auto Exposure Selector Button [PROG. AE]
(-» 58,106,110, 112)
16 Digital Image Store Button [STORE] (-» 132)
Digital Image Superimpose Button [OFF/ON]
(-» 132,134, 136)
17 Colour Selector Button for Digital Image [COLOUR]
(-» 134)
18 Eyecup
