A MAIN ZONE ON/OFF
Switches this unit between on and off (see page 18).
B PHONES jack
For plugging headphones (see page 23).
C ZONE2 ON/OFF
Switches the zone function on and off (see page 51).
D ZONE2 CONTROL
Enables operation of a receiver set in Zone2, including input
source switching, volume control and tuner operation, with the
main amplifier or remote control after this key is pressed.
E INFO
Changes information display screens on the front panel display
(see page 24).
F MEMORY
Registers FM/AM stations as preset stations (see page 30).
G PRESET l / h
Selects an FM/AM preset station (see page 30).
H FM/AM
Changes the tuner bands between FM and AM.
I TUNING l / h
Changes FM/AM frequencies.
J SCENE
Switches between linked sets of input sources and sound field
programs (see page 22).
K TONE CONTROL
Adjusts high-frequency/low-frequency output of speakers/
headphones (see page 22).
L PROGRAM l / h
Changes sound field programs (see page 25).
M STRAIGHT
Changes a sound field program to straight decoding mode
(see page 28).
N PURE DIRECT
Changes mode to Pure Direct mode (see page 23). This key
lights up when Pure Direct mode is on.
O INPUT l / h
Selects an input source (see page 22).
P OPTIMIZER MIC jack
For connecting the supplied optimizer microphone and adjusting
output characteristics of speakers (see page 19).
Q VOLUME control
Controls the volume of this unit (see page 22).
R VIDEO (VIDEO AUX) jack
For connecting the video output cable of a camcorder or game
console (see page 17).
S AUDIO L/R (VIDEO AUX) jack
For connecting the audio output cable of a camcorder or game
console (see page 17).
T PORTABLE (VIDEO AUX) jack
For connecting the audio output cable of a portable music player
(see page 17).
U Front panel display
Displays information on this unit (see page 6).
V HDMI THROUGH
Lights up during pass-through output of an HDMI signal input
to this unit while this unit is on standby (see page 47).

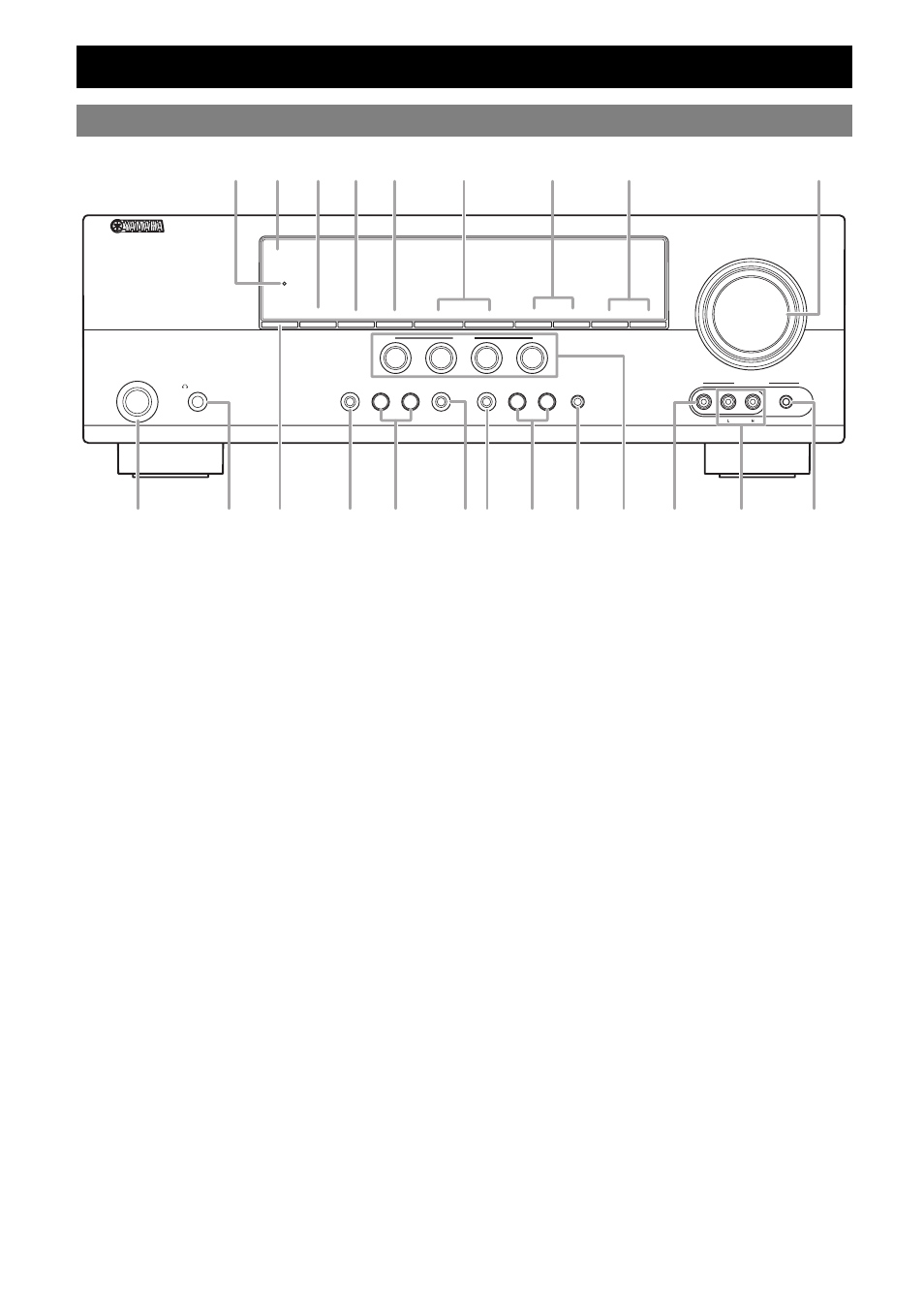

Part names and functions
Front panel
h l TUNING FM AM
MAIN ZONE
ON/OFF
PHONES
SILENT CINEMA
TONE CONTROL PROGRAM STRAIGHT PURE DIRECT INPUT OPTIMIZER MIC
VIDEO AUDIO PORTABLE
THROUGH
ZONE2
ON/OFF INFO MEMORY
VIDEO AUX
VOLUME
ZONE2
CONTROL
HDMI
EFFECT
PRESET l h l h
l h l h
BD/DVD TV CD RADIO
SCENE
A
U D
K N C P L O
V Q F E G I
J S T R M B
